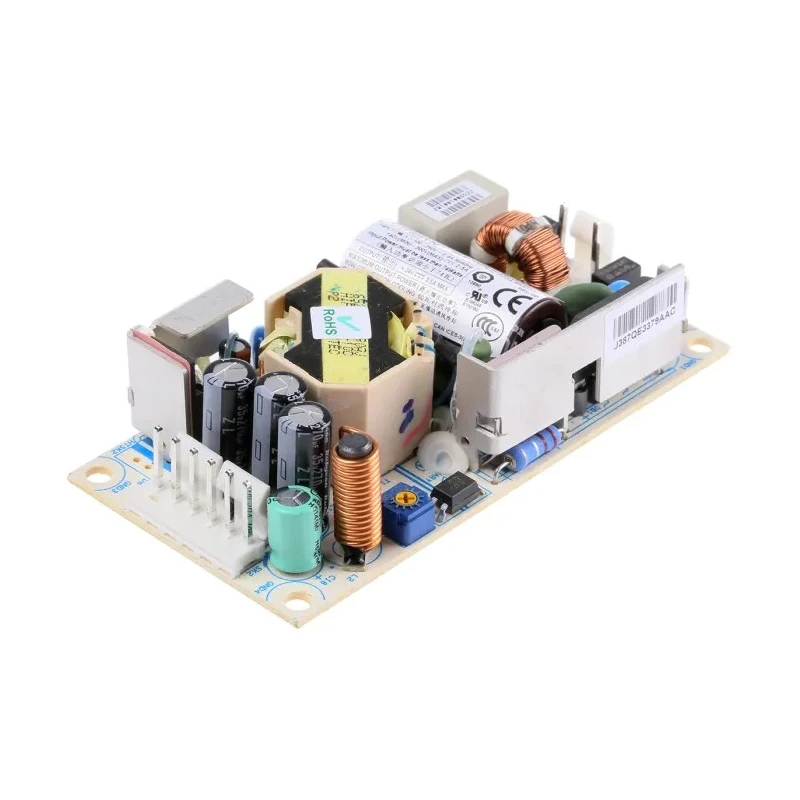

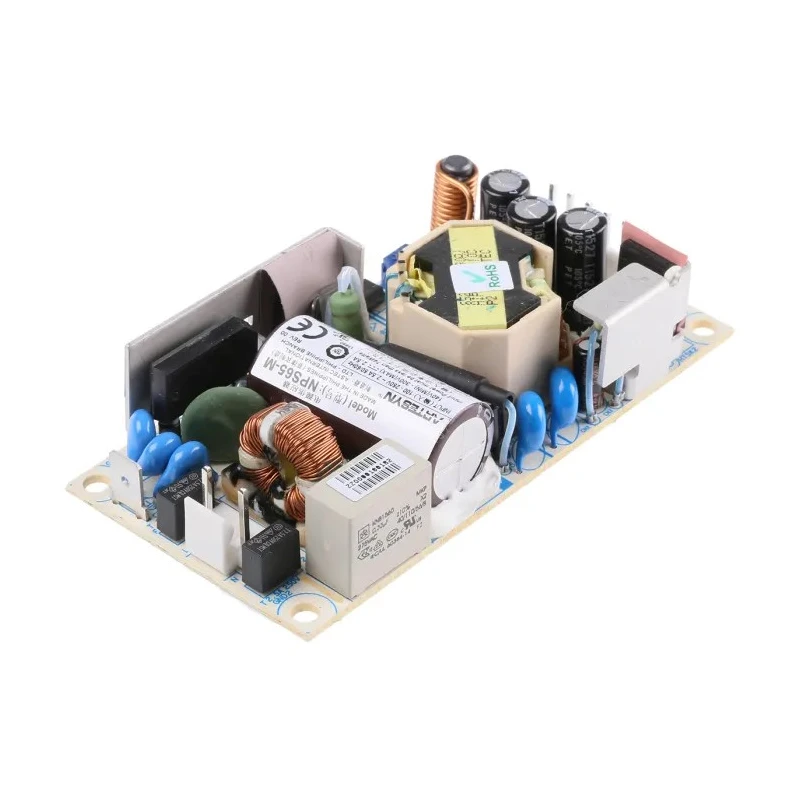

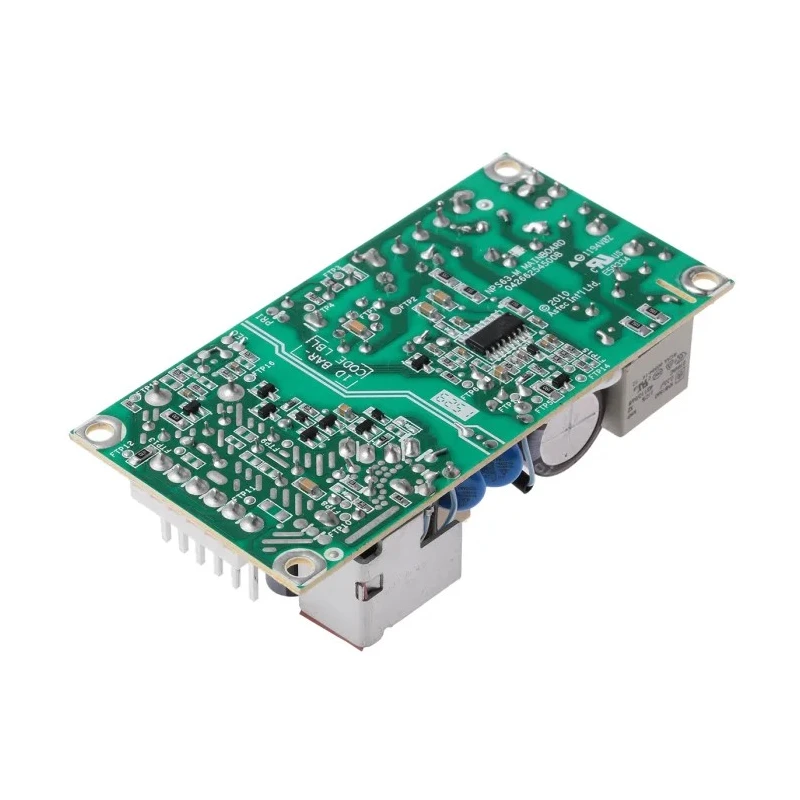

Artesyn Medical Approved Switching Power Supply 24V DC 60W Chassis Mount NPS65-M
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Artesyn |
| Power | 60W |
| Efficiency | 87% |
| Length | 101.6mm |
| Model | NPS65-M |
| Depth | 25.6mm |
| Gross Weight | 118g |
| Width | 50.8mm |
| Mount Type | Chassis |
| Series | NPS-M |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 300V dc |
| Standards/Approvals | CB, CE, CSA, TUV, NEMKO, UL |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 2.75A |
| Minimum Input Voltage | 127, 90V dc |
| Harmonic Current compliance | EN61000-3-2 |
Key Features
- Single output configuration delivering 2.75A current.
- Chassis mount type for compact embedded installations.
- Universal AC input with adjustable output voltage for flexibility.
- High efficiency of 87% reduces energy loss.
- Compliant with international safety and EMI standards.
- Operating ambient temperature from 0°C to 50°C.
- Compact dimensions of 101.6mm length, 50.8mm width, and 25.6mm depth.
- Lightweight design weighing only 118 grams.
Product Description
Artesyn NPS65-M is a medical approved, single output Switching Power Supply offering 24V DC output at 60W power rating. It features a chassis mount design suitable for embedded use in medical, dental, laboratory, industrial, and IT equipment that require safe and reliable power.
This power supply supports a universal AC input voltage, adjustable output voltage, and maintains high efficiency up to 87%. It provides 2.75A output current with a compact form factor of 101.6mm x 50.8mm x 25.6mm and weighs 118 grams.
The unit has low safety ground leakage current (< 275 µA), making it compliant with medical safety standards, coupled with overload and overvoltage protection to ensure operational safety. An integrated EMI filter conforms to FCC Class B and CISPR 22 Class B requirements.
Operating temperature ranges from 0°C to 50°C, with a derating of 2.5% per degree Celsius beyond 50°C. Certification and approvals include CB, CE, CSA, TUV, NEMKO, and UL standards applicable for medical and IT equipment.
Single output with 2.75A current capacity. Chassis mounting for embedded applications. Universal AC input with adjustable output voltage. 87% energy efficiency for reduced power consumption. Safety ground leakage current below 275 µA.
Compliance with multiple international safety and EMI standards. Compact design helps conserve installation space. Lightweight construction enhances ease of integration. Overvoltage and overload protection systems included.
Suitable for industrial, laboratory, dental, and medical applications.
Artesyn switching power supplies are widely used in demanding industrial and medical environments where reliability and safety are critical. Explore the Artesyn product range in the Power Supplies category on EnvMart to find complementary solutions for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a power output of 60W with a maximum output voltage of 24V DC and a current capacity of 2.75A.
The dimensions of the Artesyn NPS65-M are 101.6mm in length, 50.8mm in width, and 25.6mm in depth.
It has an efficiency rating of 87%, which helps to reduce energy loss during operation.
The operating temperature range for the NPS65-M is from 0°C to 50°C, with a derating of 2.5% per degree Celsius beyond 50°C.
This power supply complies with several international safety and EMI standards, including CB, CE, CSA, TUV, NEMKO, and UL.
It features a chassis mount design, making it suitable for compact embedded installations.
The maximum input voltage for this model is 300V DC, with a minimum input voltage of 90V DC or 127V DC depending on the configuration.
Yes, it includes overload and overvoltage protection systems to ensure operational safety.
This power supply weighs 118 grams, contributing to its lightweight design for ease of integration.
It is suitable for use in medical, dental, laboratory, industrial, and IT equipment that require reliable power.
The NPS65-M complies with EN61000-3-2 harmonic current standards.
This model features a single output configuration, delivering a consistent 24V DC output.
