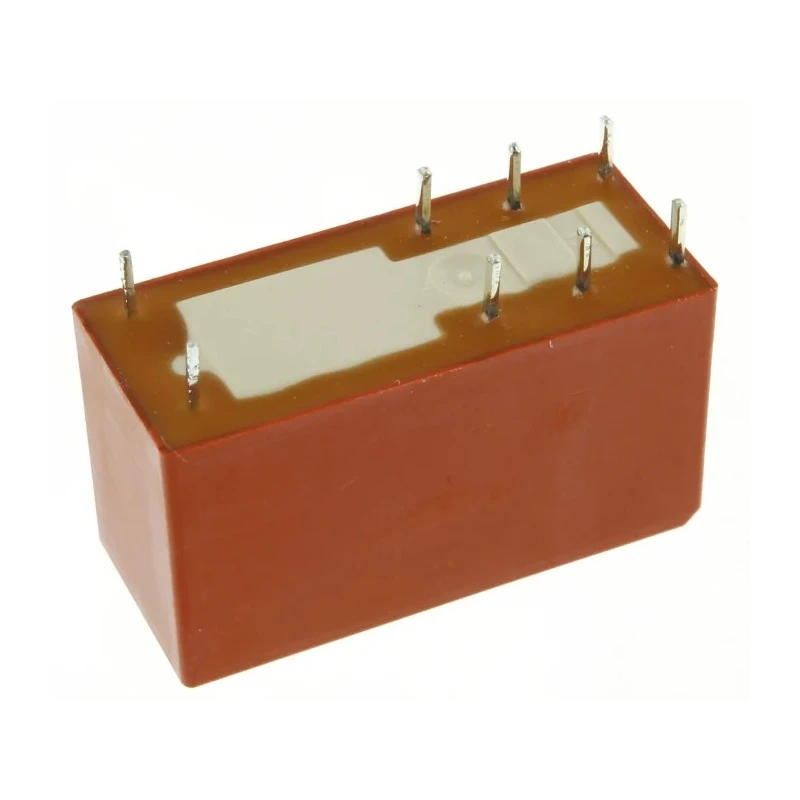

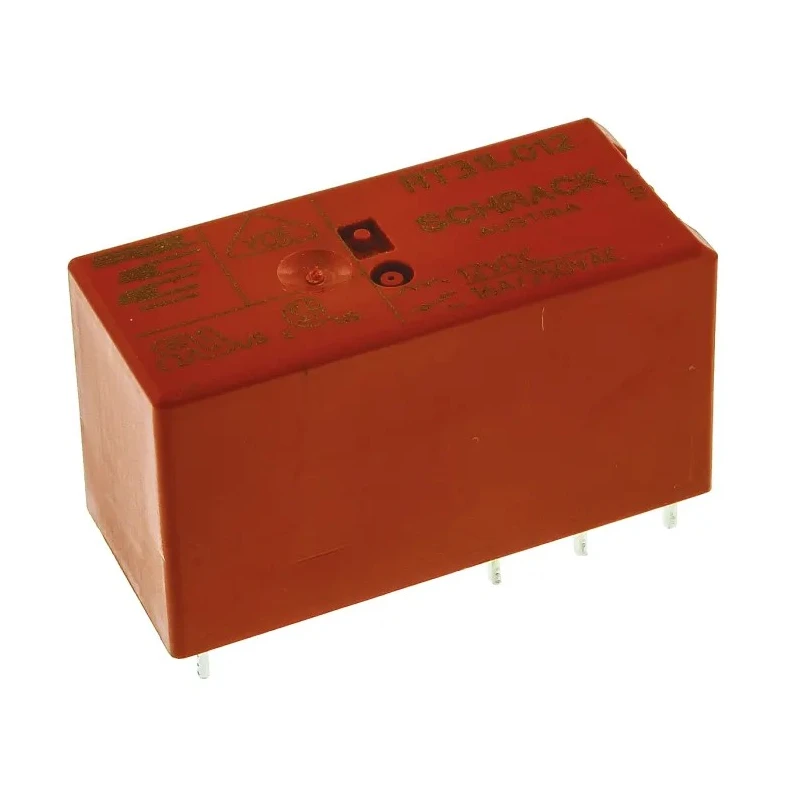

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPDT RT31L012
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT31L012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminal type.
- RT1 series supports high inrush currents and bistable operation.
- Operates reliably between -40°C and 85°C ambient temperatures.
- Contact material is silver alloy ensuring high electrical conductivity.
- Coil resistance is 360 ohms with coil power consumption of 400mW.
- Switching power rated at 4 kVA supporting 400V AC switching voltage.
- Compliant with IEC 60335-1, RoHS, and VDE safety and environmental standards.
- Applications include lighting systems, movement sensors, filament and incandescent lamp loads, and motor control.
Product Description
TE Connectivity RT31L012 is a high-quality PCB Power Relay engineered for industrial and commercial applications requiring reliable switching performance. It features a 12V DC coil voltage and a robust 16A switching current supported by a SPDT (Single Pole Double Throw) contact configuration for versatile circuit control.
This relay is part of the RT1 series known for handling high inrush currents and bistable relay operation. It offers reinforced insulation with 10mm creepage and clearance distances to ensure safety and durability in demanding environments.
The device is constructed with silver alloy contacts, ensuring optimal electrical conductivity and longevity. It has a coil resistance of 360 ohms and operates at low coil power of 400mW, making it energy efficient.
The relay supports switching power up to 4kVA and switching AC voltage up to 400V AC, suitable for various HVAC, automation, lighting, and motor controller circuits.
Designed for printed circuit board mounting with solder terminals, the relay's compact dimensions are 29mm length, 12.7mm width, and 15.7mm height. Operating temperature ranges from -40°C to 85°C, making it reliable for harsh environmental conditions.
PCB power relay with 12V DC coil and 16A switching current. SPDT contact configuration for flexible circuit switching. Silver alloy contacts ensure high conductivity and durability. Compliant with IEC 60335-1, RoHS, and VDE standards for industrial safety.
Suitable for lighting systems, sensors, filament lamps, and motors. Reinforced insulation with creepage & clearance of 10mm. Compact size and low coil power consumption (400mW).
This relay is ideal for use in industrial automation, electrical control panels, building automation, and other electronic control systems requiring reliable and efficient switching components.
Explore more Power Relays and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 16A, making it suitable for various applications requiring reliable switching performance.
The RT31L012 relay operates with a coil voltage of 12V DC.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
The maximum operating temperature for this relay is 85°C, allowing it to function in a variety of environments.
It features a Single Pole Double Throw (SPDT) contact configuration, providing versatile circuit control.
The coil resistance of this relay is 360 ohms, which contributes to its energy efficiency with a low coil power consumption of 400mW.
This model supports a switching AC voltage of up to 400V AC, suitable for various applications.
The contacts are made from silver alloy, ensuring high electrical conductivity and longevity.
It is compliant with IEC 60335-1, RoHS, and VDE safety and environmental standards.
The relay is designed for PCB mounting with solder terminals, making it easy to integrate into electronic circuits.
This relay is suitable for applications including lighting systems, movement sensors, filament and incandescent lamp loads, and motor control.
The relay supports a maximum switching power of 4 kVA, allowing it to handle significant electrical loads.
