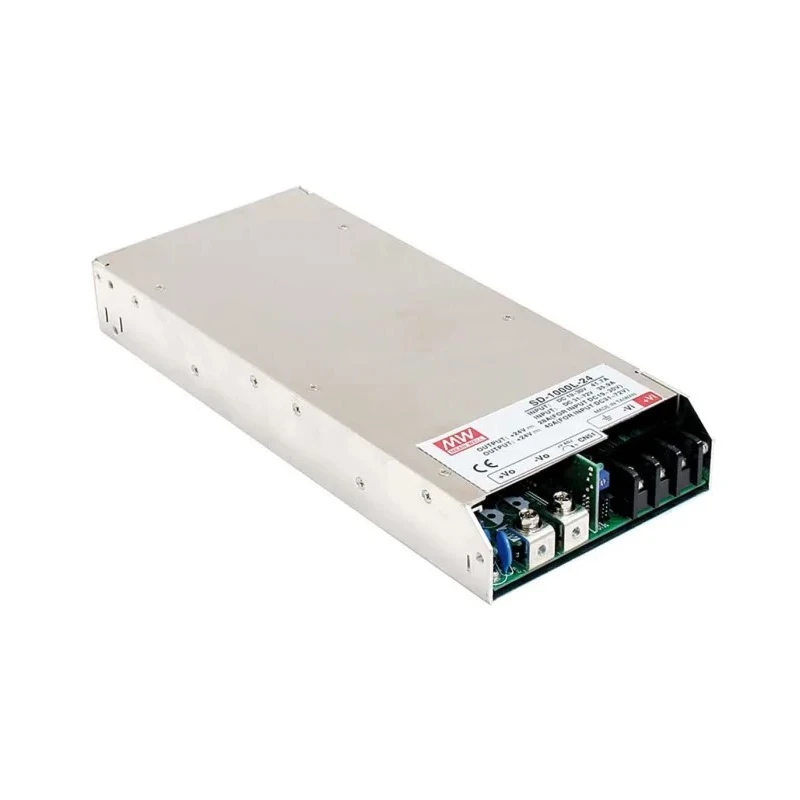

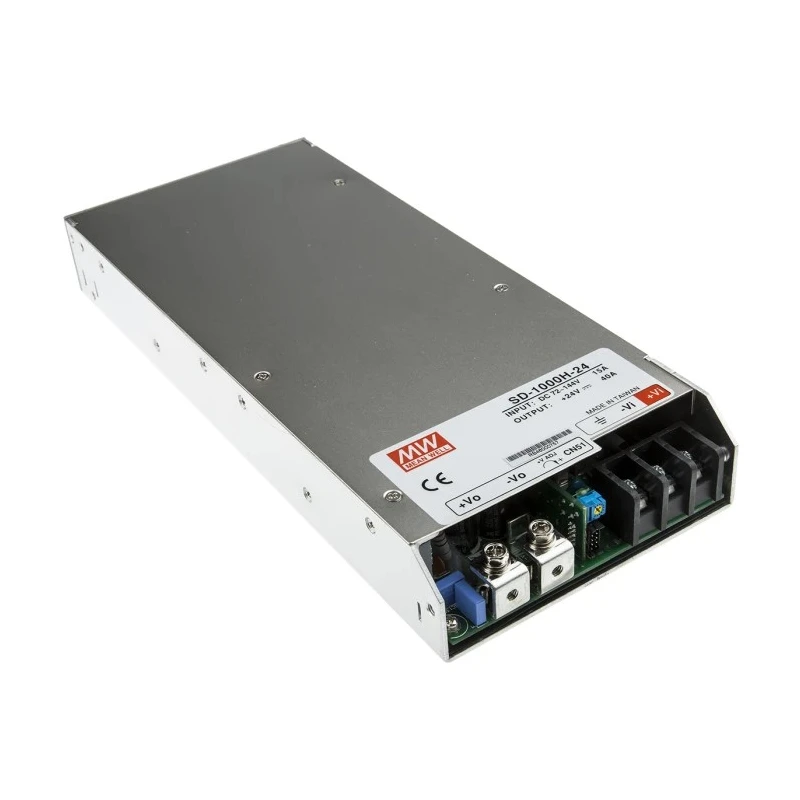

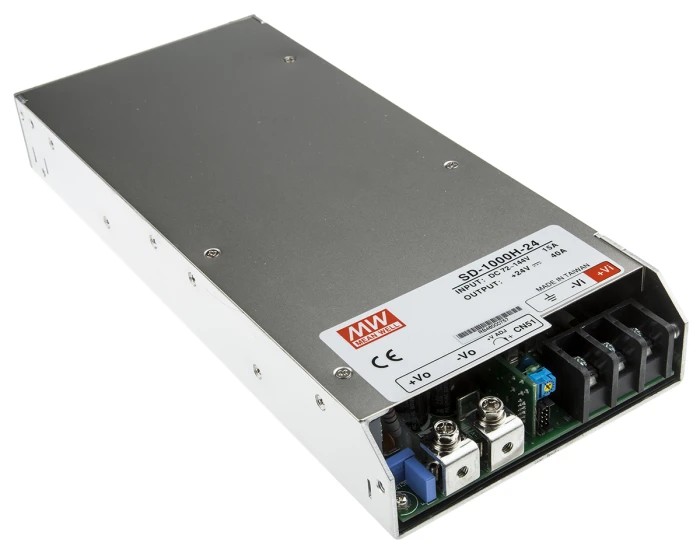

MEAN WELL SD-100 DC/DC Converter 24V DC 40A 72-96V Input 960W Surface Mount SD-1000H-24

MEAN WELL SD-1000H-24 is a high reliability, single output DC/DC converter designed for industrial and electronic power applications. It features a 24V DC regulated output voltage with a current rating of 40A, delivering a maximum output power of 960 watts. The device supports a wide input voltage range from 72V to 96V DC, allowing flexible integration in various DC power systems.

This converter is built with a compact and low profile surface mount package measuring 295mm in length, 41mm in width, and 41mm in depth, making it suitable for space-constrained installations. It operates efficiently at 89 percent, minimizing energy waste and thermal buildup.

Designed for demanding environments, the converter can operate over a wide temperature range from -20°C to 60°C. Enhanced safety features include 2kV AC isolation voltage, short circuit, overload, over-voltage, and over-temperature protections, thereby ensuring robustness and long-term reliability.

The SD-1000H-24 includes auxiliary features such as a 12V, 0.25A auxiliary output, remote ON/OFF control, remote sensing for voltage regulation, and LED power-on indication. The device uses forced air cooling through built-in dual fans with controllable speeds to maintain optimal operating temperatures under load.

This DC/DC converter is compliant with EMC standards including EN 55022 Class B and IEC 60950-1 safety approvals (CB, TUV), reinforcing its quality and electromagnetic compatibility for industrial applications such as telecommunications, control systems, and power management.

Provides regulated 24V DC output at 40A current capacity. Supports ultra-wide input voltage from 72V to 96V DC ensuring stable performance. Maximum output power rating of 960 watts to meet high power applications. Compact surface mount design with dimensions 295mm x 41mm x 41mm.

Operating temperature range from -20°C to 60°C suits harsh industrial environments. High efficiency of 89 percent reduces power loss and heat generation. Includes over-temperature, overload, over-voltage and short-circuit protections.

Isolation voltage of 2kV AC enhances safety and signal integrity. Equipped with remote ON/OFF control and LED power indicator for convenience. Built-in dual cooling fans with speed control ensure reliable thermal management.

This MEAN WELL DC/DC converter is an ideal solution for industrial electronic power supply requirements. It is broadly used in telecommunications, industrial automation, and power management systems. Explore more MEAN WELL DC/DC Converters in EnvMart’s Electronics & Electricals category.
