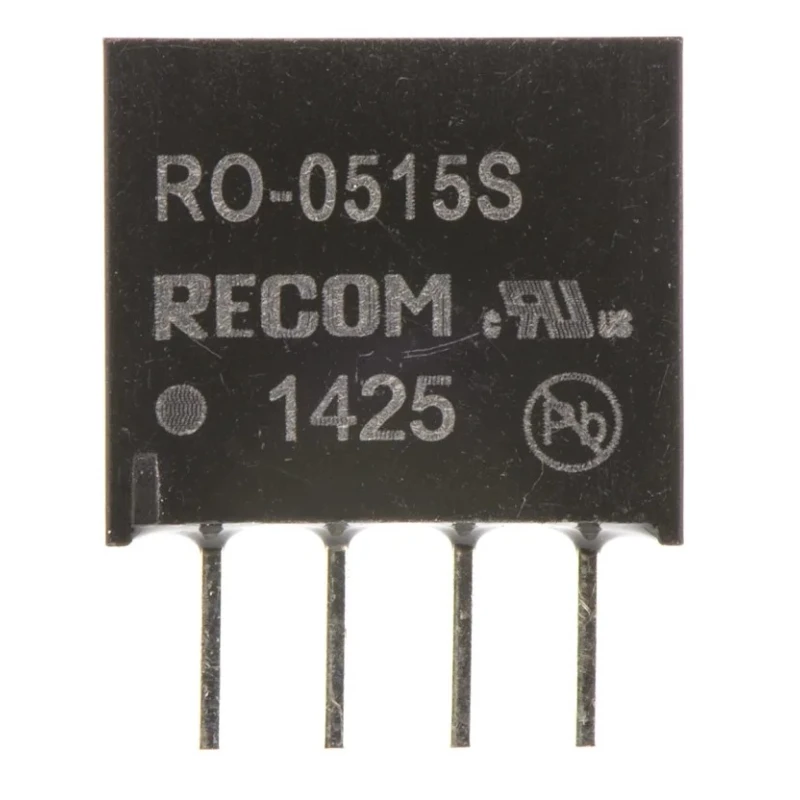

Recom DC/DC Converter Through Hole 15V DC Output 66mA 4.5-5V DC Input 1W RO-0515S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RO DC/DC Converter, 15V dc/ 66 mA, 5V dc Inp |
| Brand | Recom |
| Efficiency | 84% |
| Length | 11.5mm |
| Model | RO-0515S |
| Depth | 10mm |
| Gross Weight | 1.4g |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | RO |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 200000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | UL, IEC, CSA |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 66mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
Key Features
- Supports input voltage range from 4.5V to 5.5V DC for low-power applications.
- Maintains high efficiency of approximately 84% reducing power loss during operation.
- Built for through-hole PCB mounting ensuring secure and easy installation.
- Compact dimensions of 11.5mm length, 6mm width, and 10mm depth conserve space on circuit boards.
- Operates reliably across wide temperature range from -40°C to +85°C for harsh environments.
- Features electrical isolation with 1kV DC isolation voltage enhancing safety.
- Package type is SIP with 6 pins to fit standard electronic assemblies.
- Lightweight solution at only 1.4 grams minimizing mechanical load on devices.
Product Description
Recom RO-0515S is a reliable DC/DC converter designed specifically for industrial and electronic applications requiring stable voltage conversion. Operating with an input voltage range of 4.5 to 5.5 volts DC, this converter efficiently steps up to a stable 15V DC output delivering up to 66mA with a maximum output power of 1 watt. The through-hole mount design allows easy integration onto printed circuit boards (PCBs), while the compact size of 11.5mm by 6mm by 10mm is beneficial for space-limited designs.
Its isolated input and output provides enhanced electrical safety, with an isolation voltage of 1kV DC suitable for sensitive industrial and medical equipment. The unit maintains an efficiency of 84%, reducing heat generation and power wastage. Rated for operation from -40°C to 85°C, it functions reliably in extreme environments, including military, defense, industrial automation, and medical devices.
The device's 6-pin single inline package (SIP) and light weight of 1.4 grams make it a practical choice for diverse electronic assemblies. Certified to UL, IEC, and CSA standards, it offers quality assurance and safety compliance. The converter has a high MTBF of 200,000 hours indicating robust long-term operation in critical applications.
Input voltage range: 4.5 to 5.5V DC. Output voltage: 15V DC and output current 66mA. Maximum output power: 1 watt. Isolation voltage: 1kV DC for electrical safety. Compact SIP package with 6 pins and through-hole mount. Operating temperature range from -40°C to +85°C.
Efficiency of 84% for minimal power loss. Lightweight with 1.4 gram weight. Compliant with UL, IEC, CSA standards. MTBF: 200,000 hours ensuring long-term reliability.
This DC/DC Converter is suitable for use in industrial, electronic assembly, medical equipment, military, and defense applications requiring stable and efficient power conversion. Environmentally robust and compact, it can be trusted in high-performance and safety-critical installations. Browse EnvMart’s comprehensive Recom product range for compatible industrial converters and power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 4.5 to 5.5 volts DC.
It provides a stable output voltage of 15V DC with a maximum output current of 66mA.
The maximum output power of this unit is 1 watt.
This model maintains an efficiency of approximately 84%.
The dimensions are 11.5mm in length, 6mm in width, and 10mm in depth.
It features an isolation voltage of 1kV DC, enhancing electrical safety.
This unit operates reliably within a temperature range of -40°C to +85°C.
It is designed for through-hole PCB mounting, ensuring secure installation.
The package type is SIP with 6 pins, suitable for standard electronic assemblies.
It is certified to UL, IEC, and CSA standards, ensuring quality assurance and safety compliance.
The weight of this model is only 1.4 grams, minimizing mechanical load on devices.
The mean time between failures (MTBF) is rated at 200,000 hours, indicating robust long-term operation.
