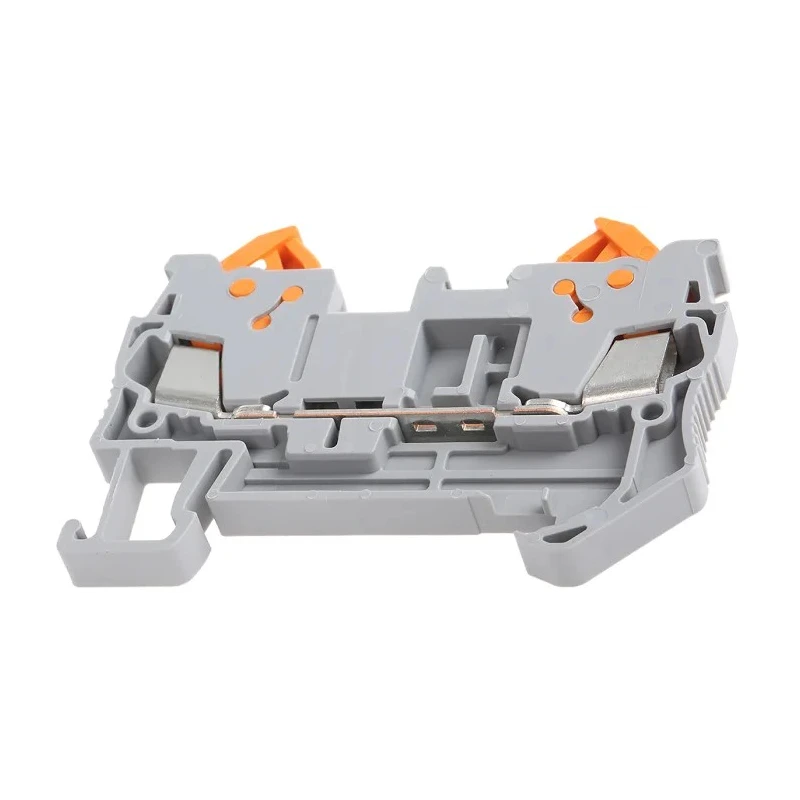

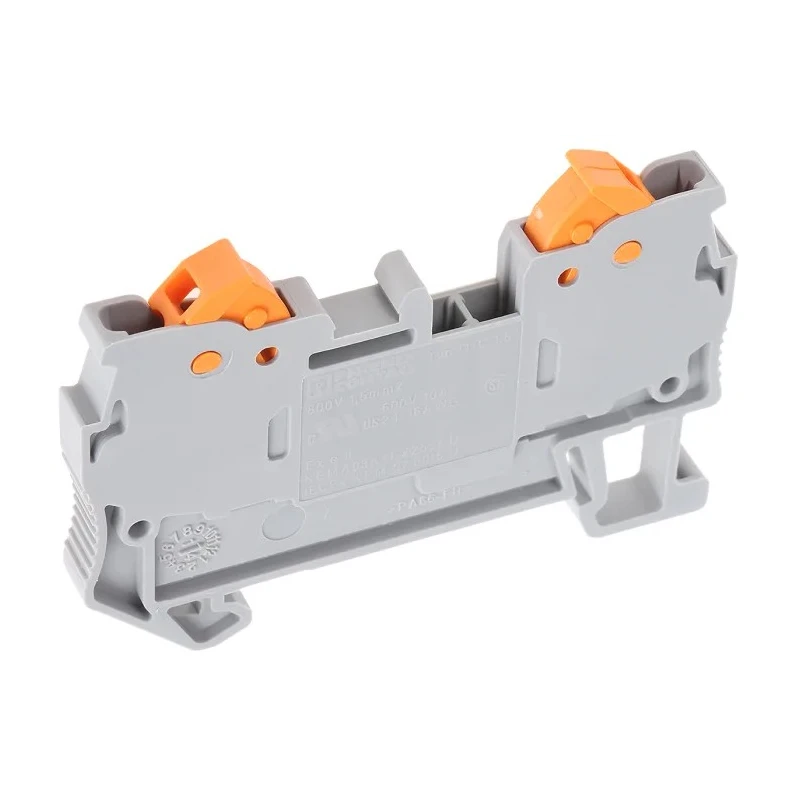

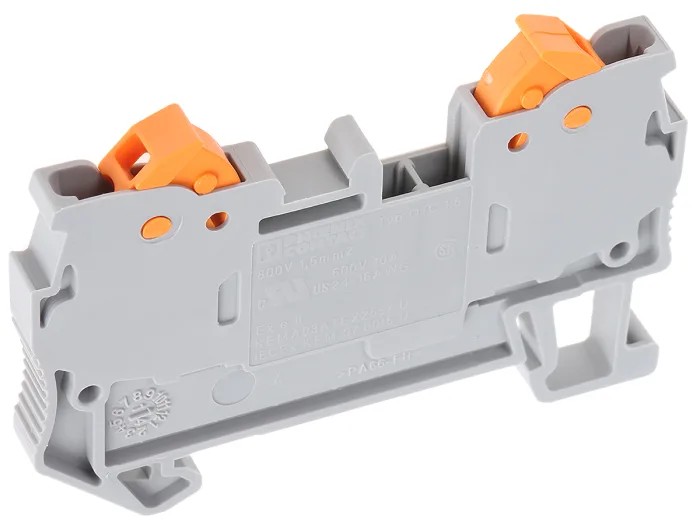

Phoenix Contact Feed Through Terminal Block Grey, QTC 1.5 Series, 0.25-1.5 mm², 17.5A, 800V, Quick Connect, ATEX 3205019
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3205019 |
| Series | QTC 1.5 |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 70°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -5°C |
| Hazardous Area Certification | ATEX, IECEx |
| Standards/Approvals | ATEX, CCC, CSA, cULus, DNV, EAC, UKCA |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Cable CSA | 0.25, 1.5mm² |
| Terminal Block Current | 17.5A |
| Through terminal block,din rail,QTC1.5Brand | Phoenix Contact |
Key Features
- Designed for cable wire sizes from 24 AWG to 16 AWG.
- Rated for a maximum current of 17.5A and voltage up to 800V.
- Constructed with durable polyamide housing offering electrical insulation and shock resistance.
- ATEX and IECEx certified for use in potentially explosive atmospheres.
- Operates reliably in temperatures from -5°C to 70°C.
- Features UL 94-V0 flammability rating for fire safety compliance.
- Quick connect IDC terminals eliminate wire stripping for faster installation.
- Can be mounted easily on standard DIN rails.
Product Description
Phoenix Contact 3205019 is a feed-through terminal block from the QTC 1.5 Series, featuring grey polyamide housing with high insulation and flame resistance. This single-level terminal block is designed for connecting conductor wires with cross sections between 0.25 mm² and 1.5 mm² (24 AWG to 16 AWG), supporting currents up to 17.5 amperes and voltage ratings up to 800 volts.
Equipped with quick connect IDC terminals, it allows secure connections without the need to strip cable jackets, significantly reducing installation time and improving reliability. The terminal block is ATEX and IECEx certified for safe use in hazardous and potentially explosive environments, meeting rigorous international standards including CCC, CSA, cULus, DNV, EAC, and UKCA.
The robust polyamide housing provides strong shock resistance (up to 5g at 30ms), ensuring dependable performance in industrial and process control applications. Its operating temperature range from -5°C to 70°C allows stable use across diverse conditions. The UL 94-V0 flame rating limits flame propagation to enhance safety.
This product is ideal for industrial automation, electrical panels, instrumentation, and control system wiring tasks requiring compact, reliable, and safe terminal connections. Installation is simplified using a clip-on mounting method compatible with DIN rail systems.
Rated current of 17.5A suitable for low to medium power applications. Supports wire sizes from 24 AWG to 16 AWG for flexible wiring options. Durable and insulated polyamide housing ensures electrical safety. ATEX-certified for explosion-proof environments enhancing operational safety.
Quick connect termination expedites installation and reduces labor. Compliance with multiple international standards demonstrates quality and reliability. Operates within a temperature range of -5°C to 70°C for versatile application.
Flame retardant housing with UL 94-V0 rating minimizes fire risk. Shock-resistant design ensures long-term durability in harsh conditions.
This Phoenix Contact terminal block combines safety, efficiency, and compliance, making it a reliable choice for professional electrical installations. Browse the DIN Rail Terminal Blocks category on EnvMart to find complementary products and accessories for tailored wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a maximum current rating of 17.5A.
It is rated for a maximum voltage of 800V.
This model supports wire sizes from 24 AWG to 16 AWG, corresponding to conductor cross sections of 0.25 mm² to 1.5 mm².
The operating temperature range is from -5°C to 70°C.
Yes, it is ATEX and IECEx certified for use in potentially explosive atmospheres.
It features quick connect IDC terminals, allowing for secure connections without the need to strip cable jackets.
It is constructed with durable polyamide housing, providing electrical insulation and shock resistance.
It can be easily mounted on standard DIN rails using a clip-on mounting method.
It complies with multiple international standards, including ATEX, CCC, CSA, cULus, DNV, EAC, and UKCA.
It has a UL 94-V0 flammability rating, which limits flame propagation.
This terminal block has a single level design.
It is ideal for industrial automation, electrical panels, instrumentation, and control system wiring tasks.
