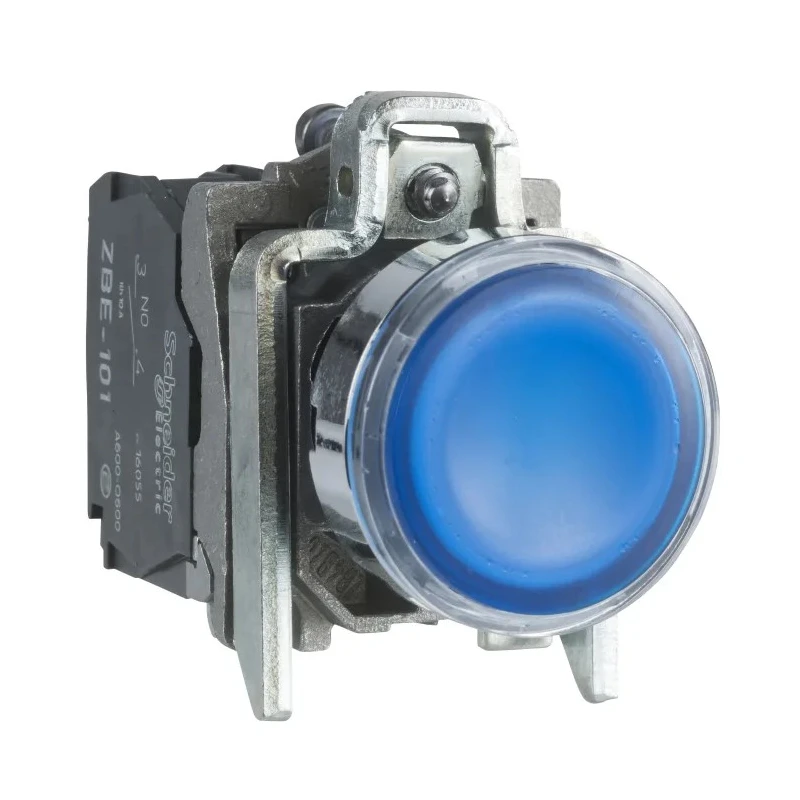

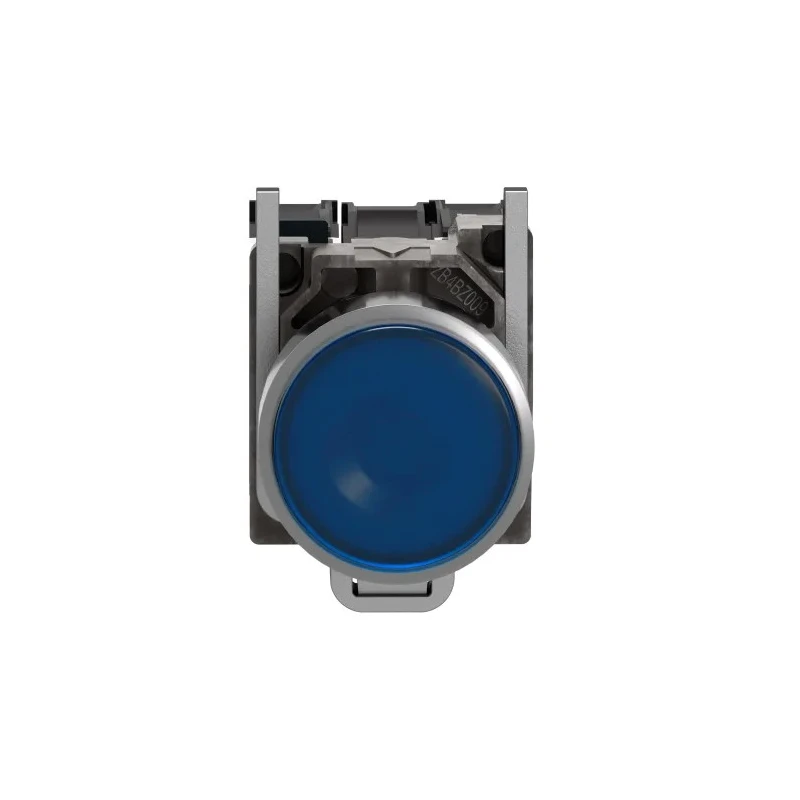

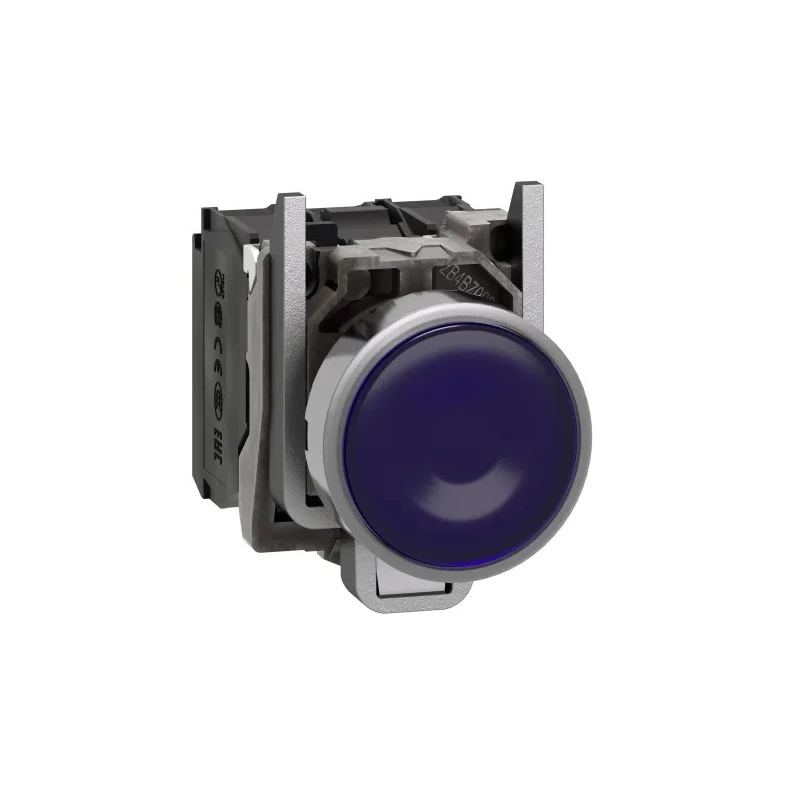

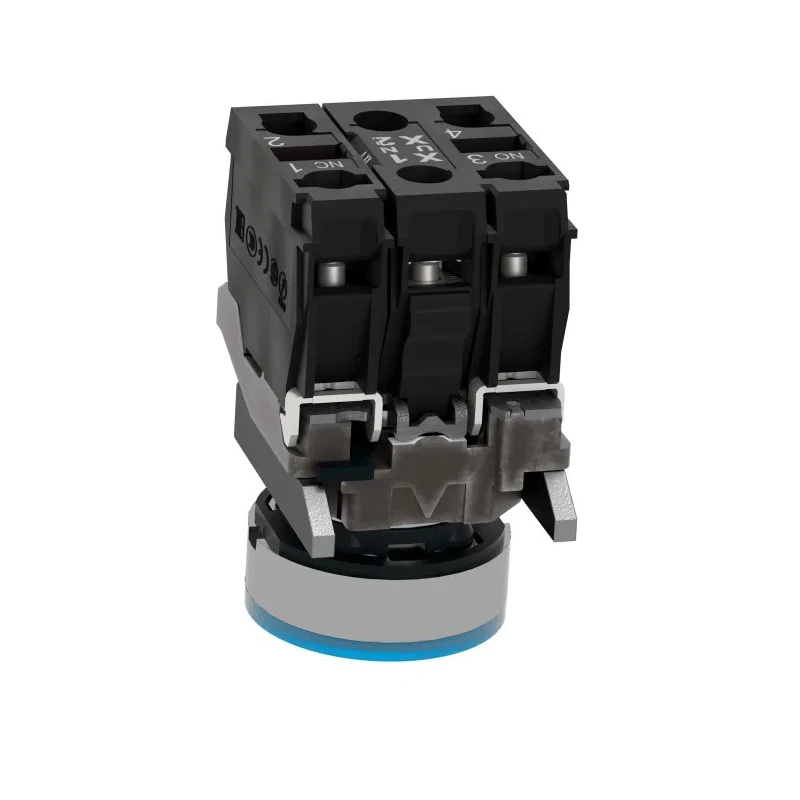

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW36G5
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 101mm |
| Model | XB4BW36G5 |
| Width | 30mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Blue |
| Switch Operation | Spring Return |
| Actuator Colour | Blue |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 12A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- The push button features a spring return mechanism for quick reset.
- Available with a blue actuator colour and LED illumination for clear visibility.
- Designed for panel cutouts of 22 mm diameter, fitting compact spaces.
- The SPDT contact configuration supports versatile switching operations.
- Durable chromium plated metal finish with Zamak fixing collar ensures longevity.
- Suitable for operation between -25°C to 70°C temperature range.
- Rated for contact currents up to 12A and contact voltages up to 600V AC/DC.
- Offers IP67, IP69, and IP69K protection ratings for resistance to water and steam cleaning.
Product Description
Schneider Electric XB4BW36G5 Illuminated Push Button Switch is designed for reliable control in industrial, commercial, and automation panel applications. Featuring a spring return mechanism and a luminous blue actuator, this switch ensures clear operational feedback and safe user interaction.
The compact 22 mm mounting diameter is ideal for crowded control panels. It provides a single-pole double-throw (SPDT) contact configuration with screw terminal connections, supporting electrical currents up to 12A at 600V AC/DC.
The push button's chromium plated metal finish, combined with a Zamak fixing collar, delivers durability and corrosion resistance suitable for demanding industrial environments. Rated for use between temperatures of -25°C to 70°C, it withstands harsh conditions.
Protection standards include IP67, IP69, and IP69K, offering robust resistance to dust, water jets, high-pressure steam, and cleaning processes. Additional compliance with EN/IEC 60947-5-1, UL 508, and CSA C22.2 No 14 ensures it meets rigorous safety and performance requirements for electrical installations.
Its application scope covers industrial control stations, automotive manufacturing, automation lines, and commercial warehouse controls. The switch is designed to enhance safety, improve control reliability, and allow easy maintenance thanks to user-repairable features.
The push button features a spring return mechanism for quick reset. Blue actuator colour with integral LED illumination. Compact panel cutout size of 22 mm for space-constrained installations. SPDT contact configuration with screw clamp terminals.
Durable chromium plated finish with Zamak fixing collar. Operating temperature range from -25°C to 70°C. Contact current rating of 12A and voltage rating of 600V AC/DC. Protection ratings: IP67, IP69, and IP69K for water and dust resistance.
Complies with EN/IEC 60947-5-1, UL 508, and CSA C22.2 No 14 standards. Dimensions: 47 mm height, 30 mm width, 101 mm length. Explore EnvMart's wide range of Push Button Switches for industrial automation and electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching operations.
It is rated for operation between -25°C to 70°C, making it suitable for a variety of environments.
The switch requires a panel cutout size of 22 mm in diameter for proper installation.
The maximum contact current rating for this model is 12A, which is suitable for various applications.
It has IP67, IP69, and IP69K protection ratings, providing resistance to dust, water jets, and high-pressure steam.
This model utilizes screw terminals for secure electrical connections.
The actuator color is blue, and it features a round style, which enhances visibility during operation.
The dimensions of this unit are 47 mm in height, 30 mm in width, and 101 mm in length.
Yes, it is designed to be repairable by the end user, facilitating easy maintenance.
It complies with EN/IEC 60947-5-1, UL 508, and CSA C22.2 No 14 standards for safety and performance.
The spring return mechanism allows for quick reset of the switch after activation, enhancing operational efficiency.
It is suitable for use in industrial control stations, automotive manufacturing, automation lines, and commercial warehouse controls.
