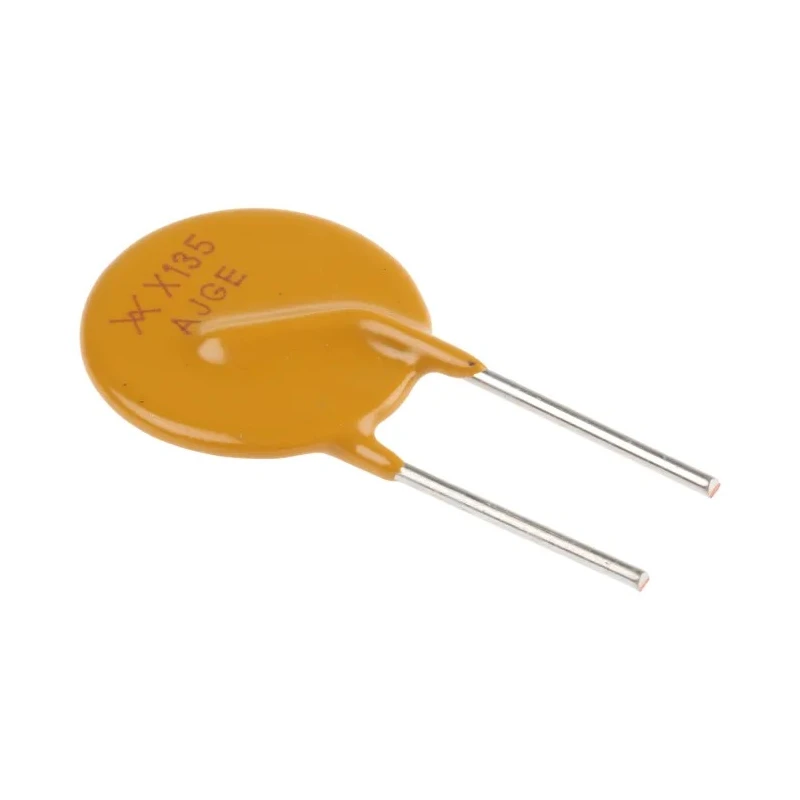

Littelfuse 1.35 A Resettable Fuse 72V RXEF135
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 72V |
| Brand | Littelfuse |
| Height | 19.1mm |
| Length | 14.5mm |
| Model | RXEF135 |
| Width | 3mm |
| Current Rating | 40A |
| Series | RXEF |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 2.7A |
| Power Dissipation | 1.7W |
| Standards/Approvals | TUV, RoHS, UL, CQC, CSA |
| Time to Trip | 9.6s |
| Hold Current | 1.35A |
| Minimum Resistance | 0.12Ω |
| Maximum Resistance | 300mΩ |
| Lead Orientation | Radial |
| RS PRO 1.35 A Resettable Fuse, 72V dcRS Stock No. | 279-6762Brand: RS PRO |
| RXE polyswitch resettable fuse,1.35A 72VBrand | TE Connectivity |
Key Features
- Automatically resets thousands of times without replacement.
- Maintains low resistance during normal operation.
- Radial lead orientation for easy PCB mounting.
- Rated for 72V and hold current of 1.35A.
- Power dissipation of 1.7W for thermal management.
- Designed to trip within 9.6 seconds at 2.7A trip current.
- Operating temperature range from -40°C to 60°C.
- Compliant with TUV, RoHS, UL, CQC, and CSA standards.
Product Description
Littelfuse RXEF135 Resettable Fuse with a hold current of 1.35 A and voltage rating of 72V is designed for protecting sensitive electronic and electrical equipment.
This PolySwitch™ RXE series fuse is suitable for applications including printers, satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports and peripherals, game machines, phones, fax machines, and line cards. It rapidly switches from a low resistance state to a high resistance state when experiencing electrical overload or short circuit, ensuring circuit protection.
The fuse features automatic resetting thousands of times without replacement, eliminating maintenance and reducing downtime. It offers low operating resistance for minimal power loss during normal operation and fast tripping time of 9.6 seconds at 2.7 A trip current.
With radial lead orientation and compact size (14.5mm length x 19.1mm height x 3mm width), the fuse is easy to mount on printed circuit boards. It has a power dissipation rating of 1.7W and supports temperatures from -40°C to 60°C.
Designed and tested to meet international standards including TUV, RoHS, UL, CQC, and CSA, this resettable fuse is halogen free and provides reliable circuit protection in industrial, commercial, and consumer electronics environments.
Automatically resets thousands of times without replacement. Maintains low resistance during normal operation. Radial lead orientation for easy PCB mounting. Rated for 72V and hold current of 1.35A. Power dissipation of 1.7W for thermal management.
Designed to trip within 9.6 seconds at 2.7A trip current. Operating temperature range from -40°C to 60°C. Compliant with TUV, RoHS, UL, CQC, and CSA standards. Compact dimensions: 14.5mm length, 19.1mm height, 3mm width.
This Littelfuse RXEF135 resettable fuse is ideal for use in industrial automation, telecommunications, computer hardware, power supplies, automotive electronics, and medical devices, offering dependable circuit protection and maintenance-free operation.
Explore more Resettable Fuses and circuit protection components in the Electronics & Electricals category on EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXEF135 resettable fuse has a voltage rating of 72V.
This model has a hold current of 1.35A.
The trip current for the RXEF135 is 2.7A, and it is designed to trip within 9.6 seconds.
The dimensions of the RXEF135 are 14.5mm in length, 19.1mm in height, and 3mm in width.
It operates within a temperature range of -40°C to 60°C.
The power dissipation rating for this model is 1.7W.
The RXEF135 is compliant with TUV, RoHS, UL, CQC, and CSA standards.
This model features a radial lead orientation for easy PCB mounting.
The minimum resistance is 0.12Ω, and the maximum resistance is 300mΩ.
It is suitable for applications including printers, satellite video receivers, industrial controls, computer motherboards, and more.
The RXEF135 can automatically reset thousands of times without replacement.
The RXEF135 is a resettable fuse designed for protecting sensitive electronic and electrical equipment.
