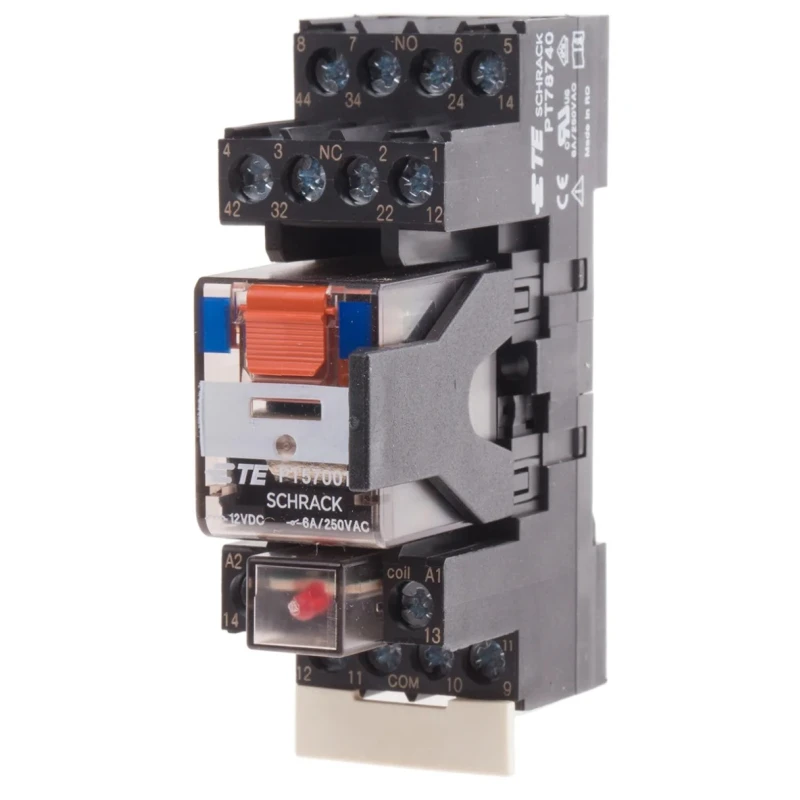

TE Connectivity DIN Rail Power Relay 12V dc Coil 6A Switching Current 4PDT PT5S7LB2 9-1415075-1

TE Connectivity PT5S7LB2 9-1415075-1 DIN Rail Power Relay is engineered for high reliability in electrical automation, industrial control, and signal conditioning systems. Designed for DIN rail mounting, this relay supports a 12V DC coil voltage and features a robust 4PDT contact configuration, making it suitable for multiple circuit switching requirements.

Its switching current capacity of 6 amps at 240V AC enables handling moderate electrical loads safely. The relay utilizes silver nickel alloy contacts that ensure excellent conductivity and resist wear over prolonged use. Incorporated with a manual test tab, mechanical and electrical indicator, it facilitates easy diagnostics and maintenance in the field.

The product package includes the relay, a DIN rail socket, module, retainer, and marking tab, thus supporting straightforward installation and identification. The coil resistance of 192 ohms and coil power consumption of 750mW provide efficient operation with minimal power loss. It conforms to international standards including VDE, IEC 61810-1, RoHS, and UL certifications, assuring compliance with safety and environmental regulations.

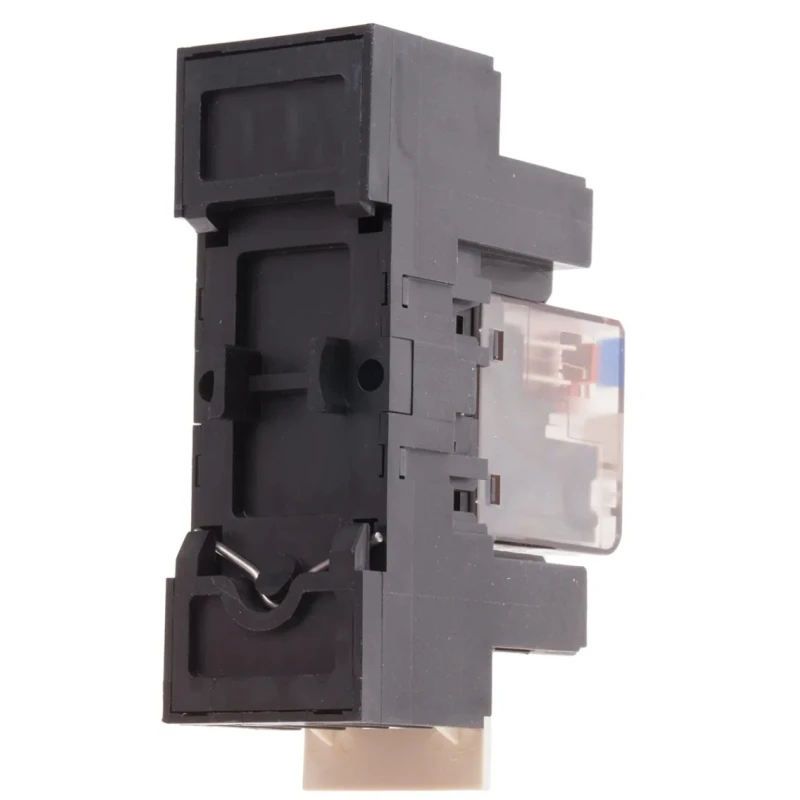

The operating temperature range from -40°C to +70°C enables use in diverse environmental conditions. Its compact form factor with dimensions of 27mm width, 73.5mm length, and 58mm height optimizes panel space usage. The DIN socket is logically arranged for control and load terminal connections, featuring an additional A2 terminal for looping convenience.

This TE Connectivity DIN Rail Power Relay is ideal for industrial automation, manufacturing equipment control, HVAC systems, power distribution panels, and laboratory electrical setups where dependable switching is critical. Its combination of durable materials, standardized approvals, and functional design supports prolonged dependable operation.

The relay supports a coil voltage of 12 volts DC for precise control. It has a 4PDT (4 pole double throw) contact configuration for versatile connectivity. Rated switching current is 6 amps, suitable for moderate load applications.

Constructed with silver nickel alloy contacts for longevity and high conductivity. Includes a DIN rail socket, module, retainer, and marking tab for easy installation. Features manual test tab and mechanical/electrical indicators for operation verification.

The relay complies with VDE, IEC, RoHS, and UL standards ensuring safety and quality. It operates reliably between -40°C and 70°C ambient temperatures. Compact dimensions of 27mm width, 73.5mm length, and 58mm height minimize space usage.
