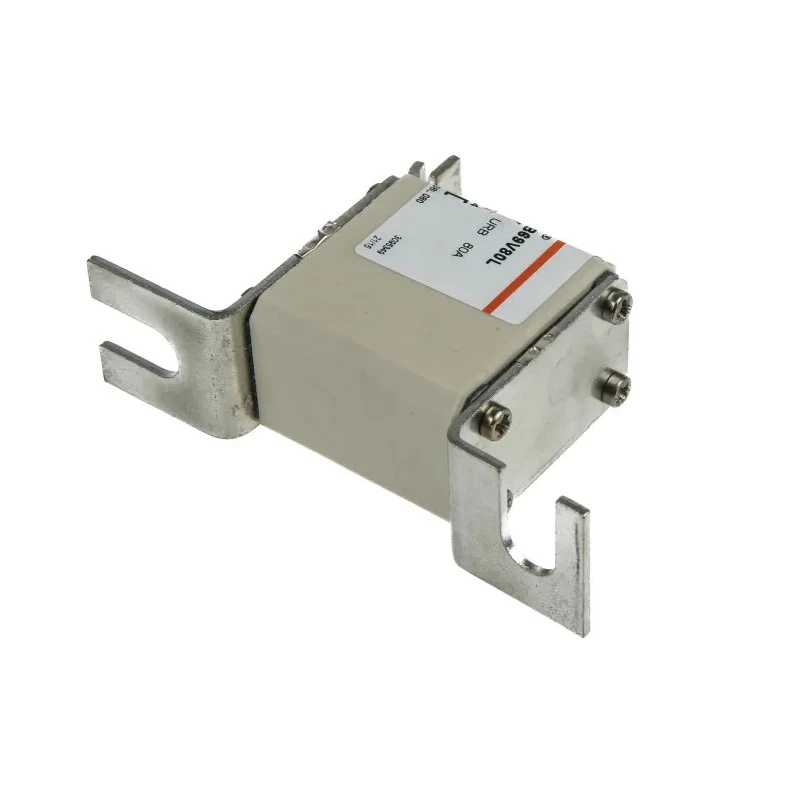

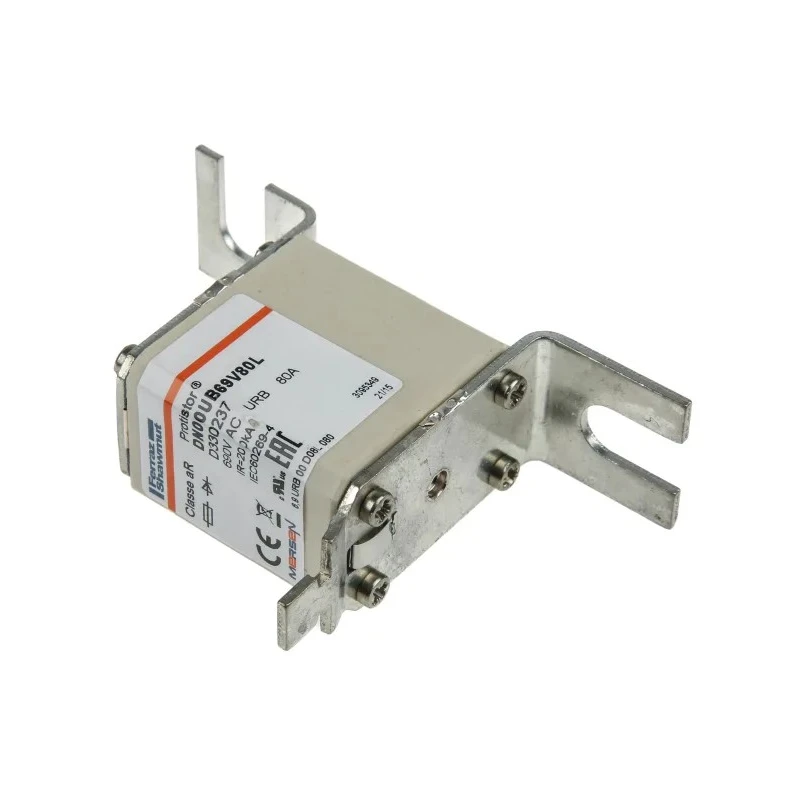

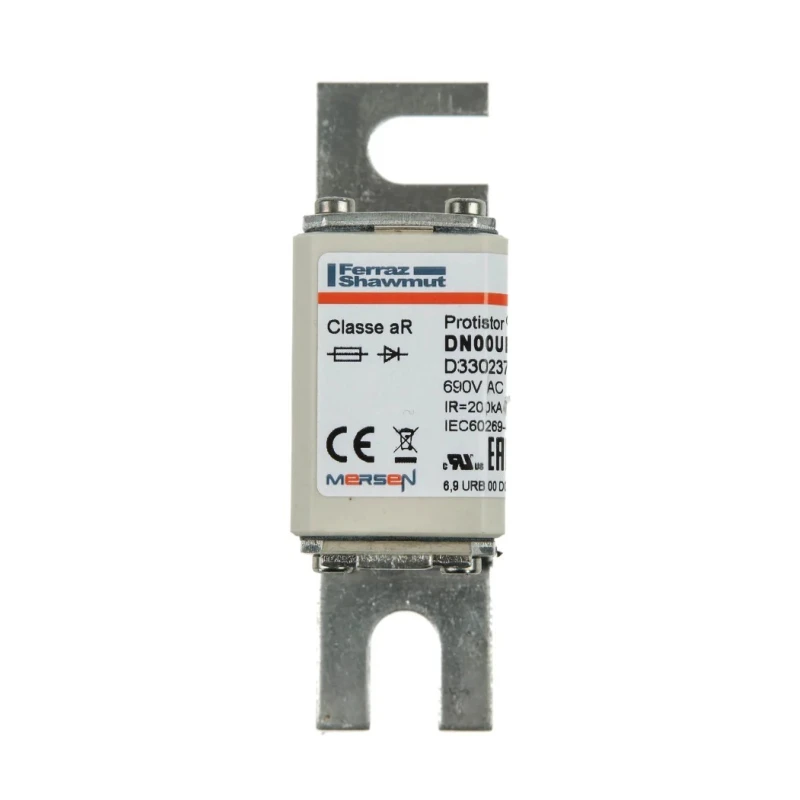

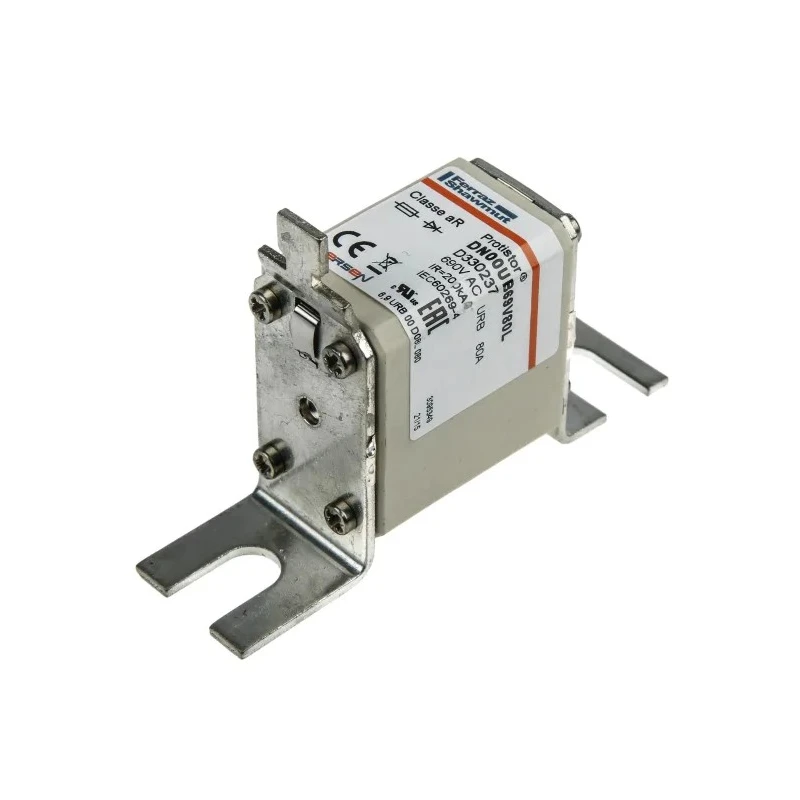

Mersen 80A German Standard Fuse NH00 690V AC Fast Acting Resin Body NH00 339365

Mersen NH00 German Standard Fuse NH00 is a high-quality fast acting fuse designed for reliable circuit protection in industrial electrical installations. Rated at 80 amperes and capable of handling voltages up to 690 volts AC, it is engineered to protect medium power electrical circuits against overload and short-circuit conditions.

The fuse features a compact NH00 size with a tag width of 26.5 mm, making it compatible with common plug-in fuse holders. It has fixing centres of 77 mm and an overall length of 100 mm, allowing easy integration into standard DIN fuse systems. The resin body construction offers advantages such as reduced weight and a clear visual fuse status indicator, which enhances maintenance efficiency.

Performance-wise, this fuse complies with multiple international certifications including CE, UL, EAC, and CSA, ensuring compliance with industry safety and quality standards. It exhibits a breaking capacity of 200 kA at 690V AC and 100 kA at 600V DC, providing robust protection for electrical circuits. The ultra-fast acting FF speed rating minimizes fault clearing time to protect sensitive components downstream.

Typical applications include industrial motor protection, transformer protection, and general electrical distribution systems in commercial and manufacturing facilities. This fuse is suitable for use in equipment requiring high reliability and rapid fault response.

Rated current of 80 amperes for medium power circuit protection. Compact NH00 size with 26.5 mm tag width for plug-in installation. Voltage rating of 690 volts alternating current suitable for industrial use. Fast fuse speed (FF) design offering ultra-fast acting protection.

Resin body construction provides lightweight and visual fuse status indication. Breaking capacity of 200 kA at 690V AC and 100 kA at 600V DC. Complies with CE, UL, EAC, and CSA standards for quality and safety. Fixing centres measured at 77 mm for mounting compatibility.

Precisely dimensioned at length 54 mm with overall length 100 mm for integration. Application category URB for industrial electrical protection systems.

This fuse represents a key component in reliable electrical distribution and protection, suitable for environments prioritizing safety and fast fault clearing. Explore more Fuses and circuit breakers from Mersen and other top brands in EnvMart's Electronics & Electricals category.
