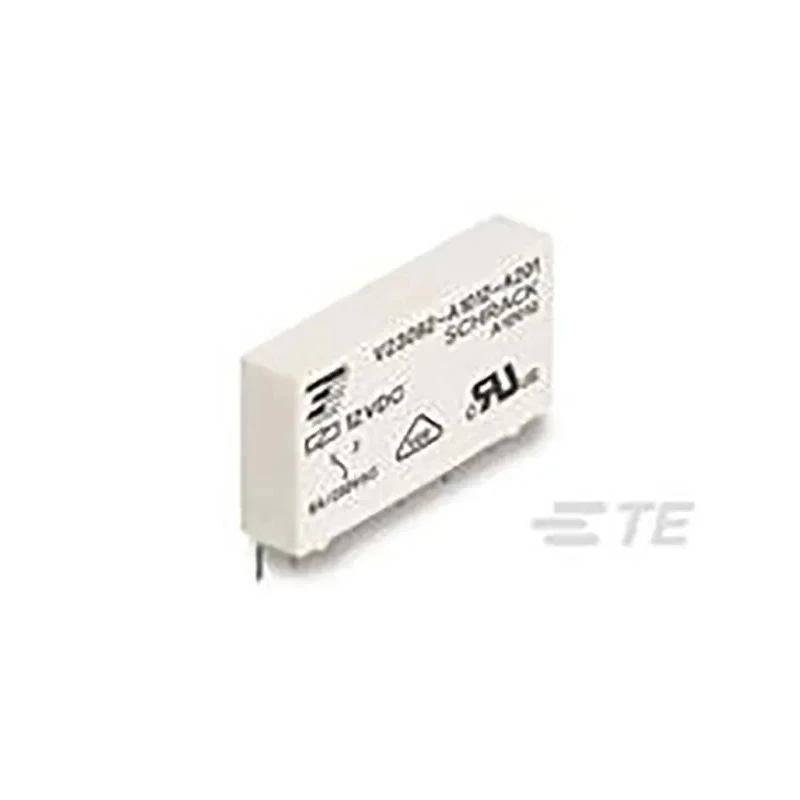

TE Connectivity PCB Power Relay 24V dc Coil 6A Switching Current SPST V23092A1024A302
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 28mm |
| Model | V23092A1024A302 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy Gold Plated, Silver Tin Oxide |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | PCB Pin |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 170mW |
Key Features
- Features an SPST contact configuration for single pole single throw switching.
- Compact dimensions with length 28mm, width 5mm, and height 15mm.
- Coil power consumption is low at 170mW, enabling energy efficient operation.
- Operates reliably within a temperature range of -40°C to 85°C.
- Equipped with silver nickel alloy gold plated and silver tin oxide contact materials for durability.
- Supports switching AC voltage up to 400V AC and switching power of 1.5kVA.
- Complies with multiple international standards including VDE, UL, REACH, IEC, and RoHS certifications.
- Designed for PCB mounting with PCB pin terminals and strong coil pins suitable for DIN-rail sockets.
Product Description
TE Connectivity V23092A1024A302 PCB Power Relay is a high-quality electrical component designed to provide reliable switching functionality for PCB applications. This power relay features a coil voltage of 24V DC and a switching current rating of 6A, making it suitable for various industrial, automation, and electrical control systems.
The relay comes with a single pole single throw (SPST) contact configuration, optimized for compact PCB mounting. Its dimensions are precisely 28mm in length, 5mm in width, and 15mm in height, allowing for efficient use of limited PCB space.
The coil power is minimized to 170mW, contributing to energy savings and reduced heat generation during operation. It maintains performance across a broad temperature range from -40°C to 85°C, ensuring durability in challenging industrial environments.
Contact materials used include silver nickel alloy with gold plating and silver tin oxide, which enhance conductivity and longevity under AC load conditions. The relay supports switching AC voltages up to 400V AC and can handle switching power of 1.5kVA.
Multiple safety and quality certifications have been attained including VDE, UL (E214025 and 508), REACH, IEC standards (61810-1, 60068-2-20), EU RoHS/ELV compliance, EN60730-1, and China RoHS, underscoring its robustness and global acceptability.
The coil resistance of 3.4kΩ, combined with reinforced insulation and strong coil pins, enables secure installation and reliable connection on DIN-rail sockets or standard PCBs. The relay is cadmium-free, making it an environmentally responsible choice for electrical applications.
Features an SPST contact configuration for single pole single throw switching. Compact dimensions: 28mm length, 5mm width, 15mm height. Low coil power of 170mW for efficient energy use. Wide operating temperature range from -40°C to 85°C.
Durable contact materials with silver nickel alloy gold plating and silver tin oxide. Supports switching AC voltage up to 400V AC and 1.5kVA power handling. Certified for safety and compliance with VDE, UL, REACH, IEC, and RoHS standards.
Designed for PCB mounting with reinforced insulation and strong coil pins. Environmentally friendly with cadmium-free contacts.
This power relay is ideal for industrial automation, electrical panels, HVAC systems, manufacturing equipment, and other commercial electronic control applications requiring dependable switching performance on printed circuit boards.
Explore more Power Relay products and technical solutions from reputed brands at EnvMart to enhance your electrical and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 6A, making it suitable for various applications in industrial and electrical control systems.
The coil voltage for this relay is 24V DC, which is essential for its operation in various electronic circuits.
The relay has compact dimensions of 28mm in length, 5mm in width, and 15mm in height, allowing for efficient PCB mounting.
It supports switching AC voltages up to 400V AC, making it versatile for different electrical applications.
This model features a single pole single throw (SPST) contact configuration, suitable for simple switching applications.
The coil power consumption is low at 170mW, contributing to energy efficiency during operation.
It operates reliably within a temperature range of -40°C to 85°C, ensuring performance in various environmental conditions.
The contacts are made from a silver nickel alloy with gold plating and silver tin oxide, enhancing conductivity and durability.
This relay is designed for PCB mounting and features PCB pin terminals for secure installation.
It complies with multiple international standards including VDE, UL, REACH, IEC, and RoHS, ensuring safety and quality.
The coil resistance is 3.4kΩ, which is important for determining the current draw when the relay is energized.
This power relay is ideal for industrial automation, electrical panels, HVAC systems, and manufacturing equipment requiring reliable switching performance.
