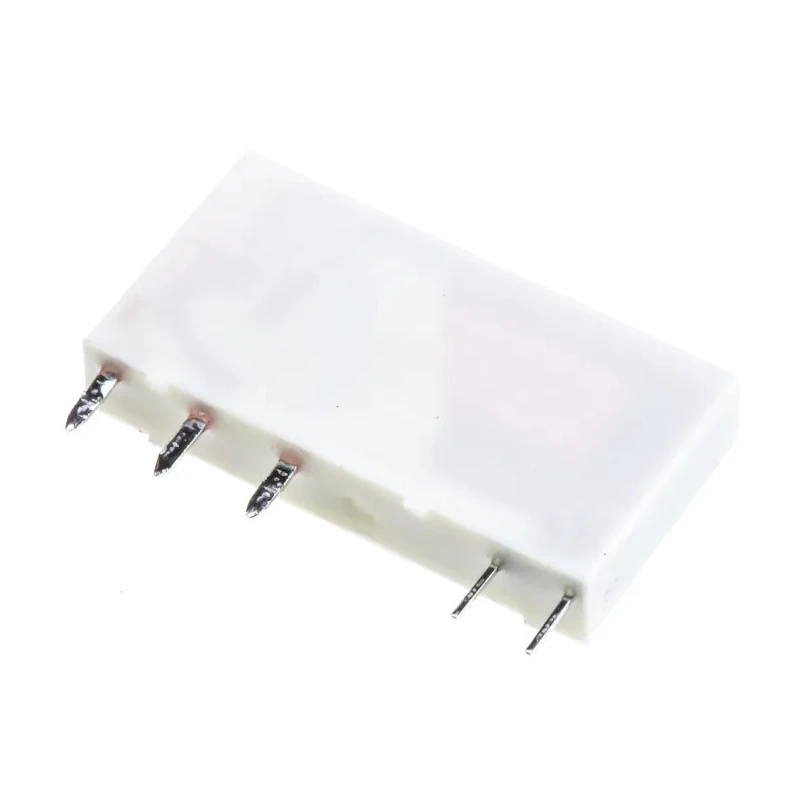

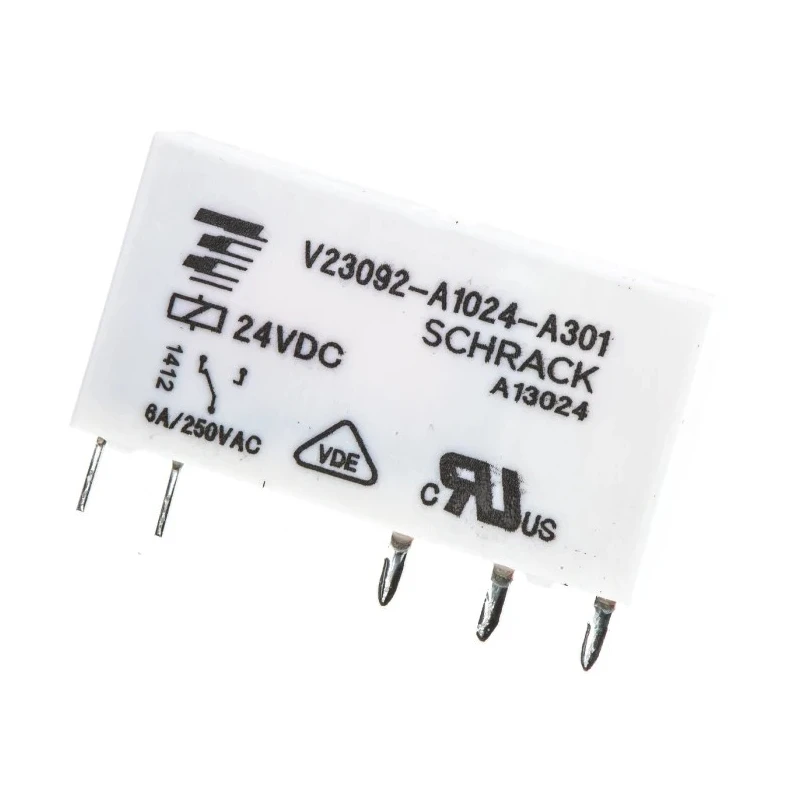

TE Connectivity PCB Power Relay 24V DC Coil 6A Switching Current SPDT V23092-A1024-A301 2-1393236-4
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092-A1024-A301 2-1393236-4 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 210mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- Operates with a coil voltage of 24V DC for efficient relay control.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching applications.
- Compact design with dimensions of 28mm length, 15mm height, and 5mm width suitable for high density PCB layouts.
- Switching current rating of 6A with a maximum switching AC voltage of 400V AC.
- Coil power consumption of 210mW with high coil sensitivity at 170mW for low power operation.
- Wide operating temperature range from -40°C to +85°C ensuring durability in harsh environments.
- Contact material made of silver alloy for excellent conductivity and longevity.
- PCB mount type with solder terminals for secure and reliable connections.
Product Description
TE Connectivity model V23092-A1024-A301 2-1393236-4 is a high-performance PCB power relay designed for electrical and automation applications requiring compact size and reliable switching. It operates with a 24V DC coil and supports a 6A switching current with an SPDT contact configuration, making it suitable for various industrial, commercial, and manufacturing systems.
This relay belongs to the SNR series of slim relays featuring a compact 5mm thickness for high-density printed circuit boards. The coil power consumption is optimized at 210mW, complemented by a coil sensitivity of 170mW, which ensures low electrical load on control circuits.
The device can operate within a broad temperature range from -40°C to 85°C, facilitating its use in extreme environmental conditions. The contact material is silver alloy, selected for consistent electrical conductivity and resistance to wear. It mounts securely onto PCBs via solder terminals, providing strong and stable mechanical and electrical connections.
With a coil resistance of 3.4kΩ and an isolation voltage of 4000Vac between coil and contacts, this relay guarantees robust electrical isolation and safety. Its switching voltage capability extends up to 400V AC, and its mechanical profile measures 28mm in length, 15mm in height, and 5mm in width.
The product is RoHS compliant and manufactured in the Czech Republic, underscoring quality and adherence to environmental standards. It is ideal for use in industrial controls, HVAC systems, manufacturing equipment, and other automated machinery where reliable relay switching is essential.
Operates with a 24V DC coil voltage and 6A switching current. Single Pole Double Throw (SPDT) contact configuration. Compact size for high-density PCB mounting (28×15×5 mm). Wide operating temperature range (-40°C to 85°C).
Silver alloy contact material for durability and conductivity. Solder terminal type for reliable PCB mounting. High isolation voltage of 4000Vac between coil and contacts. Complies with RoHS environmental regulations.
Explore similar Power Relay products and TE Connectivity options at EnvMart for diverse industrial and commercial applications requiring precision and safety in electrical control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
This model has a maximum switching current rating of 6A.
It features a Single Pole Double Throw (SPDT) contact configuration.

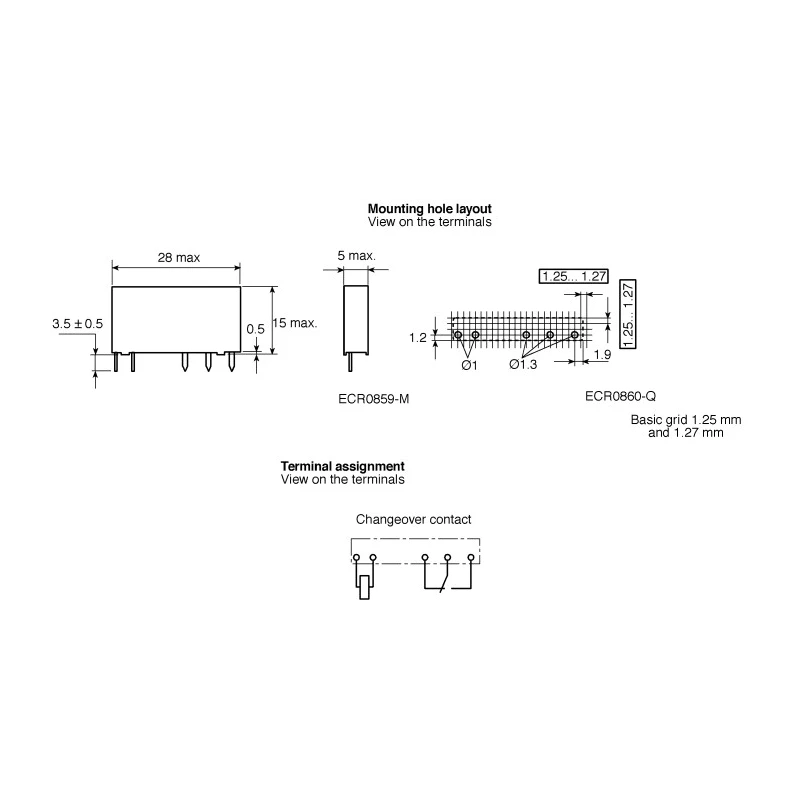

The relay measures 28mm in length, 15mm in height, and 5mm in width.
It can operate within a wide temperature range from -40°C to 85°C.
The contact material is made of silver alloy, which provides excellent conductivity.
This model is designed for PCB mounting and features solder terminals for secure connections.
The relay has a high isolation voltage of 4000Vac between the coil and contacts.
The coil resistance is 3.4kΩ.
It can switch AC voltage up to 400V.
The coil power consumption is optimized at 210mW, with high coil sensitivity at 170mW.
Yes, this relay complies with RoHS environmental regulations.
