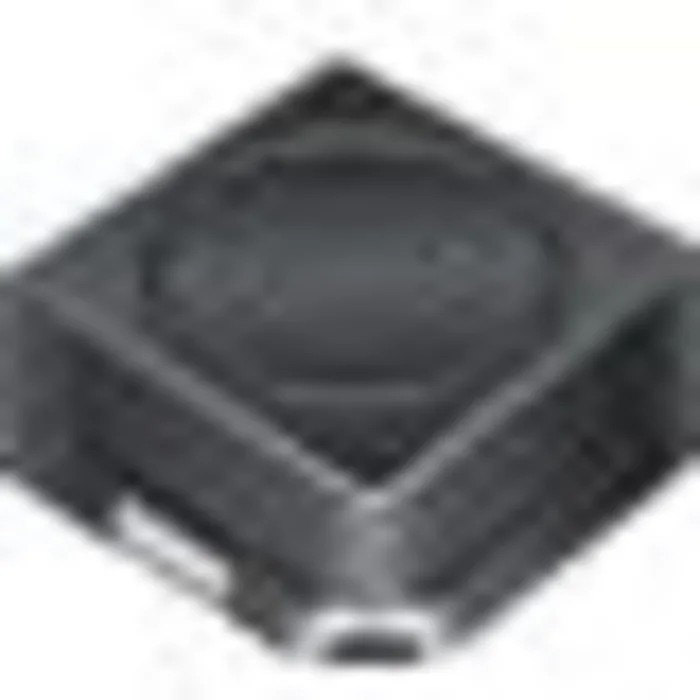

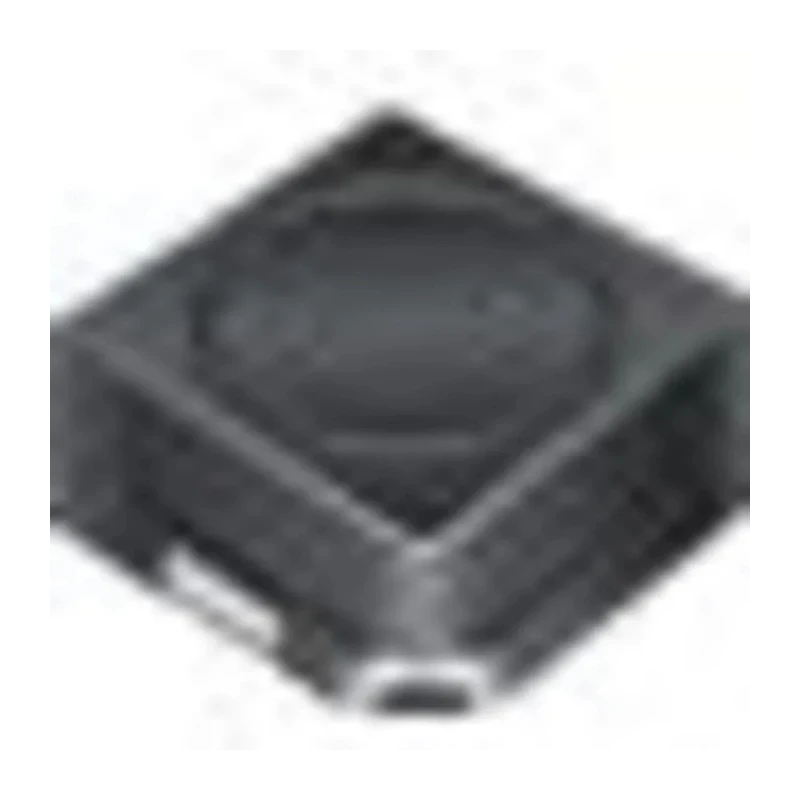

Bourns 0604 Shielded Wirewound Surface Mount Inductor 22 μH ±20% 900 mA Idc Ferrite DR & RI Core SRR0604

Free Delivery in India | Lowest Global Shipping Charges

Bourns 0604 Shielded Wirewound Surface Mount Inductor 22 μH ±20% 900 mA Idc Ferrite DR & RI Core SRR0604

Name: Bourns 0604 Shielded Wirewound Surface Mount Inductor 22 μH ±20% 900 mA Idc Ferrite DR & RI Core SRR0604
Brand: BOURNS
SKU: 399797
Price: 0.68 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	4.6mm
Length	6.5mm
Model	SRR0604
Depth	6.5mm
Packaging	Tape & Reel
Series	SRR0604
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite DR & RI
Inductance	22μH
Standards/Approvals	RoHS
Package/Case	0604
Maximum DC Current	900mA
Maximum DC Resistance	190mΩ
Inductance Tolerance	±20 %
Termination Style	Solder
Maximum Self Resonant Frequency	25MHz
Minimum Quality Factor	16
Inductor Construction	Shielded

Key Features

Constructed with a ferrite DR & RI core providing reliable magnetic properties.
Shielded design reduces EMI, enhancing circuit performance.
Compact 0604 package size measuring 6.5mm in length and 4.6mm in height.
Solder termination style ensures secure PCB mounting.
Operating temperature range from -40°C to 125°C for diverse environments.
Maximum DC resistance of 190 mΩ minimizes power loss.
Suitable for input/output of DC/DC converters and power supplies.
Complies with RoHS standards for environmental safety.

Product Description

Bourns SRR0604 0604 Shielded Wirewound Surface Mount Inductor is designed with a ferrite DR & RI core, providing stable inductance of 22 μH ±20% tolerance and supporting a maximum DC current of 900 mA. This shielded inductor minimizes electromagnetic interference, enhancing performance in sensitive electronic circuits.

Measuring 6.5mm in length, 4.6mm in height, and 6.5mm in depth, it fits compact PCB layouts while maintaining high electrical performance. The solder termination style ensures stable soldering for surface mount technology applications. Operating reliably in temperatures from -40°C to 125°C, this inductor suits a wide range of industrial and commercial uses.

The maximum DC resistance of 190 mΩ and a high quality factor of 16 contribute to minimizing energy losses and ensuring effective power management in applications like DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs.

The product is RoHS compliant, ensuring environmental and safety standards are maintained. It is supplied in tape and reel packaging, facilitating automated placement in manufacturing processes. Its shielded construction protects against unwanted interference, making it well suited for sensitive electronic environments and industrial applications.

Constructed with a ferrite DR & RI core providing reliable magnetic properties. Shielded design reduces EMI, enhancing circuit performance. Compact 0604 package size measuring 6.5mm in length and 4.6mm in height. Solder termination style ensures secure PCB mounting.

Operating temperature range from -40°C to 125°C for diverse environments. Maximum DC resistance of 190 mΩ minimizes power loss. Suitable for input/output of DC/DC converters and power supplies. Complies with RoHS standards for environmental safety.

High quality factor of 16 ensures efficient energy storage. Delivered on tape and reel packaging for automated SMT assembly.

This Bourns SRR0604 inductor is ideal for industrial, manufacturing, electronic assemblies, telecommunications, and commercial electronics requiring stable inductance and high reliability. Explore more Surface Mount Inductors and Bourns products on EnvMart to find the right components for your project needs.
