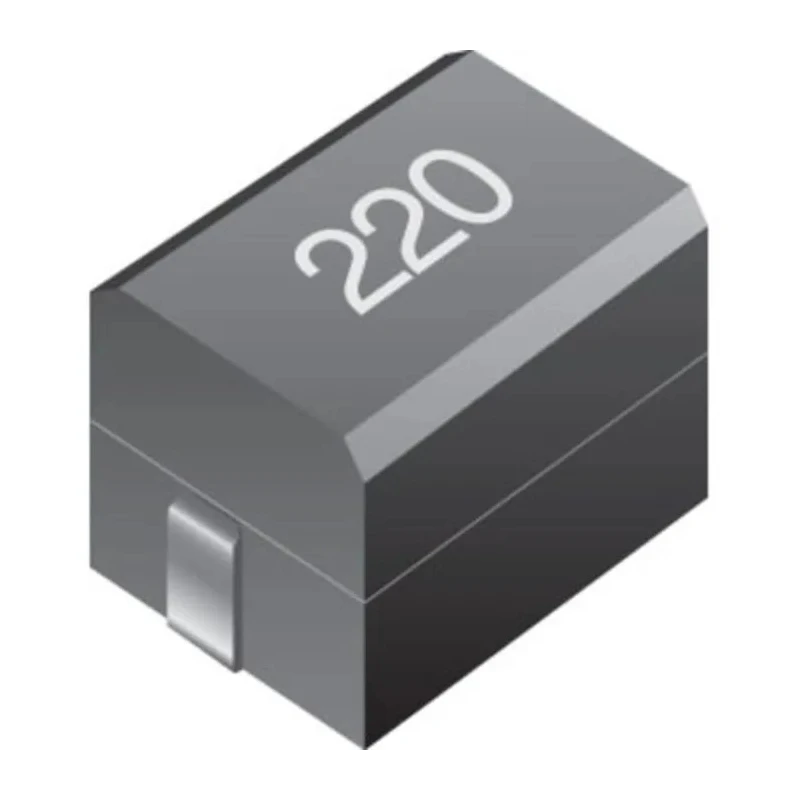

Bourns 1812 Multilayer Surface Mount Inductor with Ferrite Core 100 μH ±10% 280 mA Idc Q30 CC453232A

Bourns CC453232A 1812 Multilayer Surface Mount Inductor with a Ferrite Core provides a precise inductance of 100 μH with a tolerance of ±10%, designed for compact electronic circuits requiring reliable surface mount passive components.

This inductor is constructed with a high-quality ferrite core and has an epoxy resin enclosure along with stannum terminal material, which imparts resistance to mechanical shock and pressure. It maintains tight dimensional tolerances facilitating automatic placement during PCB assembly processes.

The package size is 1812, measuring 4.5 mm in length, 3.2 mm in width, and 3.2 mm in height, making it suitable for space-constrained applications in consumer electronics, automotive, and industrial devices.

Rated to operate over a wide temperature range from -40°C to 150°C, and meeting the AEC-Q200 automotive standard, the CC453232A ensures robustness under harsh operating environments. Its maximum DC current of 280 mA and maximum DC resistance of 4 Ω support efficient current handling with minimal losses.

The inductor exhibits a minimum quality factor of 30 and a maximum self-resonant frequency at 5.5 MHz, which is advantageous for high-frequency filtering and tuning applications. Tape and reel packaging supports high volume manufacturing with automated pick-and-place machinery.

Applications include use in power supplies, signal filtering, and energy storage in electronic assemblies across industrial, laboratory, automotive, and electronic manufacturing sectors.

The inductor features a ferrite core construction for stable inductance. Compact 1812 package size with precise dimensional tolerances. Meets AEC-Q200 automotive standards and RoHS compliance. Wide operating temperature range from -40°C to 150°C.

Maximum DC current rating of 280 mA ensures reliability under load. Low maximum DC resistance of 4 Ω reduces power losses. Minimum quality factor of 30 supports effective high-frequency performance. Solder termination style enables reliable PCB mounting.

Packaged in tape and reel format for automated assembly processes.
