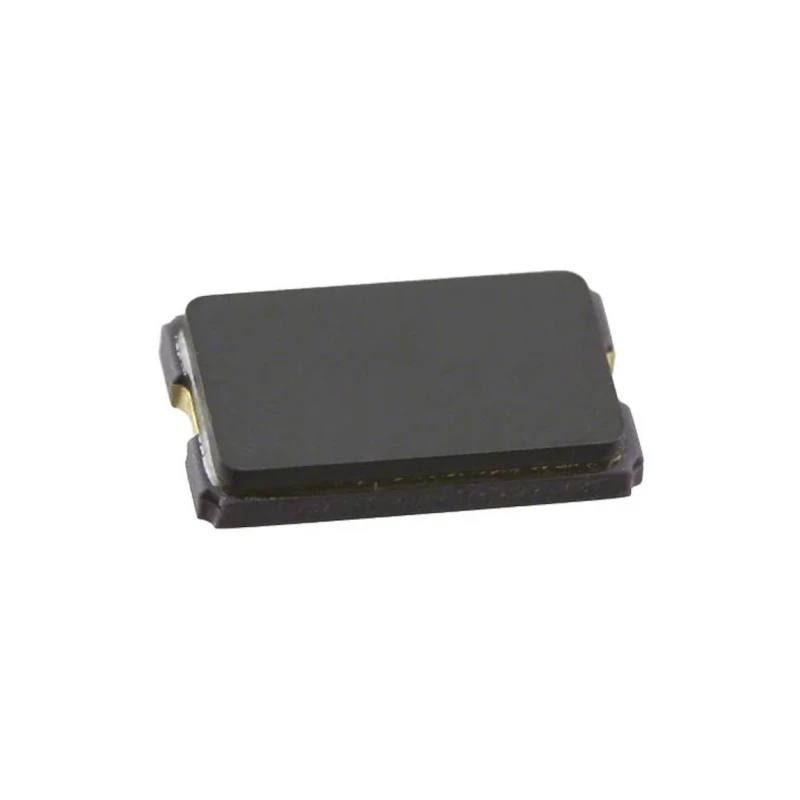

Abracon 27.12 MHz Crystal 4 pF Load Capacitance Surface Mount DFN 0.6 mm Height ABM10W

Abracon ABM10W 27.12 MHz Crystal is a surface mount quartz crystal designed for ultra-low power and height constrained electronic applications. With a standard frequency of 27.12 MHz and a low profile DFN package (0.6 mm height), this crystal is ideal for wearable devices, IoT modules, and Bluetooth Low Energy systems.

This crystal features a load capacitance of 4 pF and a frequency tolerance of ±10 ppm, ensuring precise timing control in communication and machine-to-machine connectivity applications. Its series resistance of 100 Ω supports efficient signal performance while operating reliably in temperatures ranging from -40°C to 85°C.

The rugged construction includes a seam-sealed package for enhanced durability and long-term operational stability. The crystal is compliant with international environmental standards including REACH and RoHS.

Typical applications span wearables, Bluetooth and IoT devices, wireless modules, and Near Field Communication systems that require reliable low profile frequency sources. Standard frequency of 27.12 MHz optimized for low power applications.

Compact DFN surface mount package measuring 2.5 mm x 2 mm x 0.6 mm height. Low load capacitance of 4 pF and series resistance of 100 Ω. Wide temperature range: -40°C to 85°C. Seam sealed for long-term reliability. Environmental compliant with REACH and RoHS.

Suitable for Bluetooth, IoT, NFC, and M2M communications. Packaging on reel supports automated pick-and-place manufacturing.

These Abracon ABM10W crystals meet the demanding requirements of modern electronic components for precision and durability. They are manufactured in China and are available as new products.
