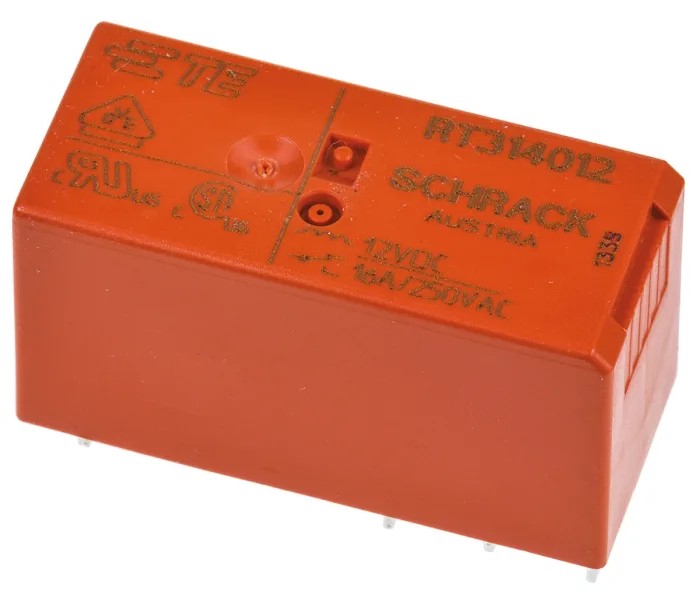

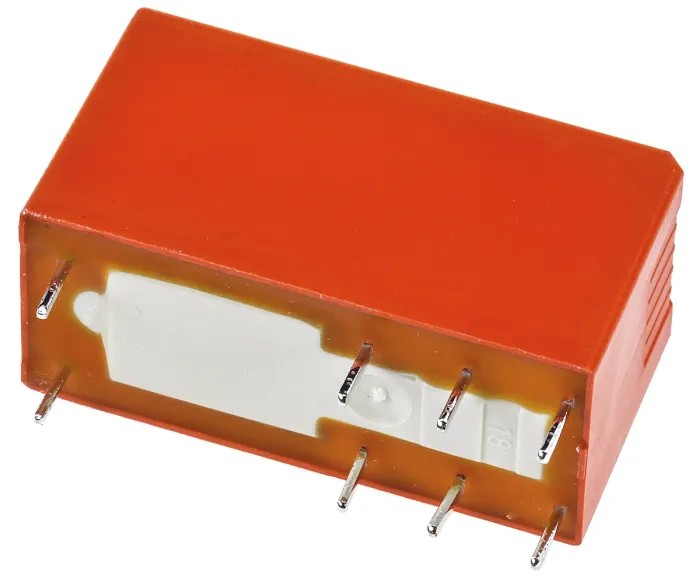

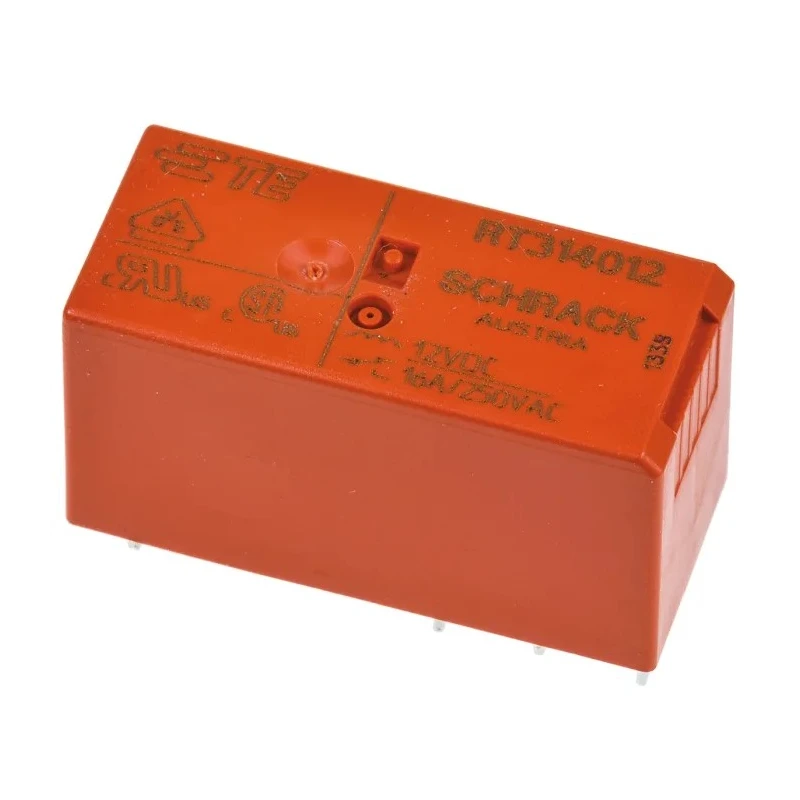

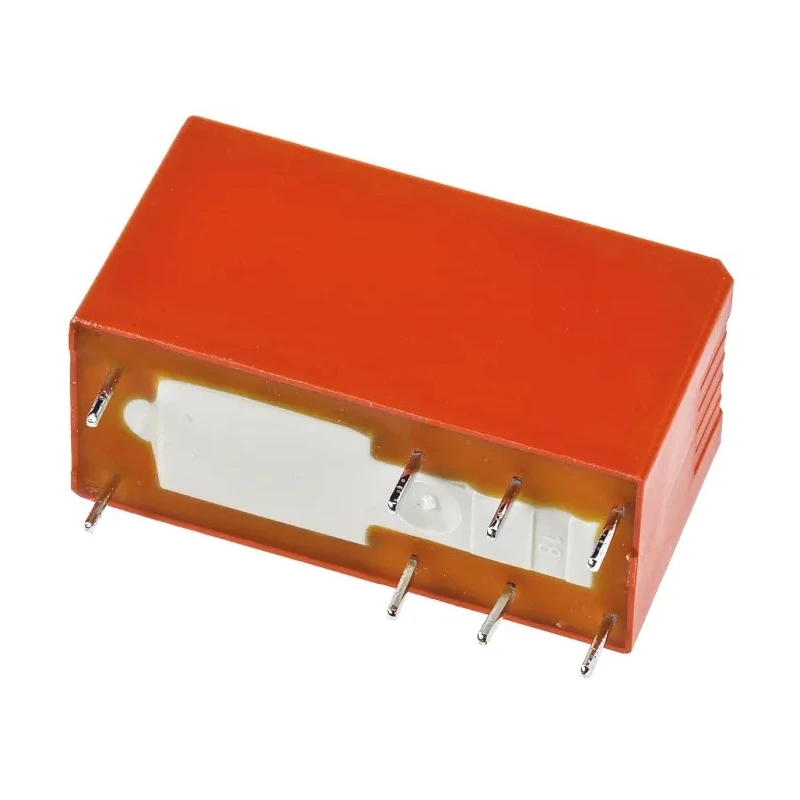

TE Connectivity PCB Power Relay, 12V dc Coil, 16A Switching Current, SPDT RT314012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- This relay is designed for PCB mounting with solder terminal type.
- It features a switching power of 4kVA and a maximum operating temperature up to 85°C.
- The coil resistance is 360 Ohms with a coil power consumption of 250mW.
- It has compact dimensions of 29mm length, 15.7mm height, and 12.7mm width.
- The contact material is Silver Nickel Alloy ensuring good conductivity and durability.
- Operating temperature range extends from -40°C to 85°C suitable for various industrial environments.
- Meets IEC 60335-1, RoHS, and VDE standards and approvals.
- Ideal for interface, automation, domestic applications, security lighting, and heating systems.
Product Description
TE Connectivity RT314012 PCB Power Relay is a high-quality electrical component designed for reliable switching applications in industrial and domestic settings. Featuring a 12V dc coil voltage and a single pole double throw (SPDT) contact configuration, this relay supports a switching current of 16A.
Engineered for PCB mounting with solder terminals, this relay belongs to the RT1 series known for flux proof pinning of 3.5mm. It supports a switching power up to 4kVA and a switching AC voltage capacity of 400V ac.
The relay operates efficiently with a coil resistance of 360 Ohms and a coil power usage of only 250mW, optimizing power consumption. Its compact dimensions (29mm length, 15.7mm height, 12.7mm width) make it suitable for tight PCB layouts.
Constructed with Silver Nickel Alloy contact material, it guarantees durability, low contact resistance, and excellent conductivity. This model operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
Compliance with IEC 60335-1, RoHS, and VDE certifications ensures safety and environmental standards are met.
This relay is widely used for electrical interface applications, automation systems, security lighting, and heating control systems, enhancing operational effectiveness and safety.
This relay is designed for PCB mounting with solder terminal type. It features a switching power of 4kVA and a maximum operating temperature up to 85°C. The coil resistance is 360 Ohms with a coil power consumption of 250mW.
It has compact dimensions of 29mm length, 15.7mm height, and 12.7mm width. The contact material is Silver Nickel Alloy ensuring good conductivity and durability. Operating temperature range extends from -40°C to 85°C suitable for various industrial environments.
Meets IEC 60335-1, RoHS, and VDE standards and approvals. Ideal for interface, automation, domestic applications, security lighting, and heating systems. Manufactured in Austria ensuring high quality and performance. Explore the wide range of Power Relays and electrical components available at EnvMart for your industrial, commercial, and domestic electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a switching current of 16A.
The relay has compact dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width.
It operates with a coil voltage of 12V dc and has a coil resistance of 360 Ohms.
The maximum operating temperature for this relay is 85°C.
This model is designed for PCB mounting with solder terminals.
The relay features a switching power rating of up to 4kVA.
It meets IEC 60335-1, RoHS, and VDE standards and approvals.
The contact configuration is single pole double throw (SPDT).
The coil power consumption is 250mW.
It can operate within a temperature range of -40°C to 85°C.
The contact material is Silver Nickel Alloy, which ensures good conductivity and durability.
It is suitable for interface, automation, domestic applications, security lighting, and heating systems.
