TE Connectivity Power Relay PCB Mount SPST 24V DC Coil 3A Switching Current PCJ-124D3M,301

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Power Relay PCB Mount SPST 24V DC Coil 3A Switching Current PCJ-124D3M,301

Name: TE Connectivity Power Relay PCB Mount SPST 24V DC Coil 3A Switching Current PCJ-124D3M,301
Brand: TE Connectivity
SKU: 397400
Price: 2.85 USD
Availability: InStock



Category Power Relay Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Height	15mm
Length	20.4mm
Model	PCJ-124D3M,301
Width	7mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	PCJ
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Switching Current	3A
Terminal type	Through Hole
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	45Ω
Coil Voltage	24V dc
Switching DC Voltage	30V dc
Switching AC Voltage	250V
Coil Power	200mW

Key Features

The PCB mount design allows for secure through-hole installation in circuits.
The coil voltage is 24 V DC, ensuring sensitive operation with 200 mW coil power consumption.
Silver alloy contacts provide consistent conductivity and corrosion resistance.
Operating temperature range is from -40°C to 85°C suitable for various environments.
Compact dimensions of 20.4 mm length, 7 mm width, and 15 mm height support space-efficient PCB layouts.
Contact configuration is Single Pole Single Throw (SPST) suitable for simple switching tasks.
Switching AC voltage up to 250V and switching DC voltage up to 30V accommodates diverse electrical loads.
Contact resistance is low at 100 milliohms to minimize voltage drop during operation.

Product Description

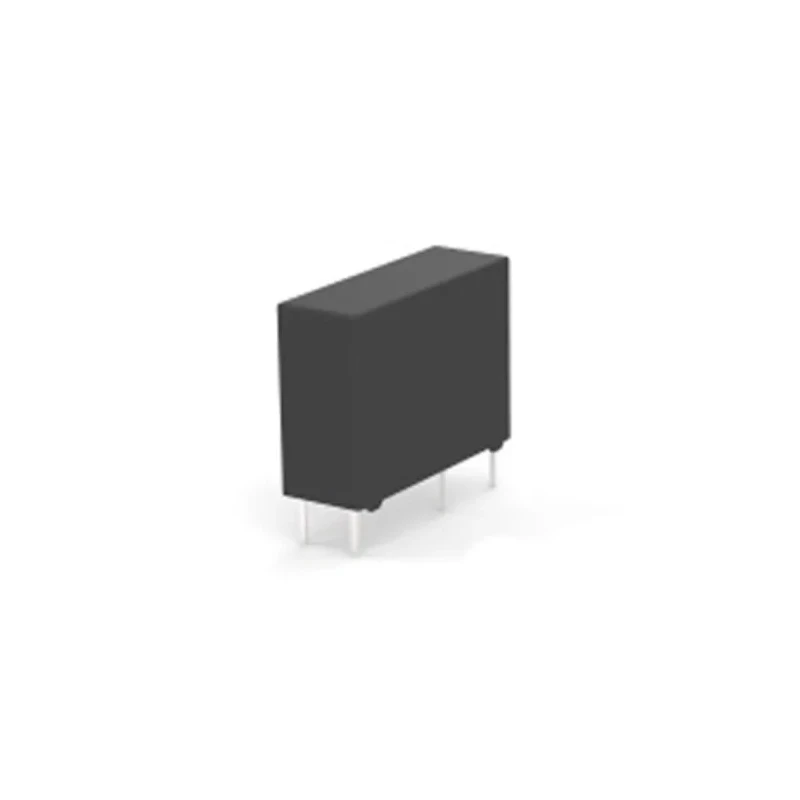

TE Connectivity PCJ-124D3M,301 is a miniature power relay specifically designed for PCB mount applications, featuring a 24V DC coil and capable of handling a 3A switching current with SPST contact configuration.

This relay is part of the PCJ series, known for miniature size and reliable performance with a coil power of just 200 mW. The relay includes silver alloy contacts that provide excellent conductivity and durability for long-term use in electrical and automation systems.

Its compact dimensions (20.4 mm length, 7 mm width, and 15 mm height) allow for space-efficient integration on printed circuit boards. It is designed for harsh operating environments with an operational temperature range from -40°C to 85°C, making it suitable for industrial, commercial, and domestic applications.

The relay supports switching voltages up to 250V AC and 30V DC, allowing use in various control circuits and appliance applications. Its contact resistance is low at 100 mΩ, ensuring minimal losses during switching. The 45 Ω coil resistance provides reliable coil current regulation, reducing the risk of overheating.

This product is RoHS compliant, ensuring adherence to environmental standards. Typical applications include domestic appliances, instrumentation, and industrial control systems requiring sensitive coil operation and reliable contact switching.

The PCB mount design enables easy through-hole assembly in circuits. Silver alloy contacts ensure reliable electrical connections and long service life. Low coil power consumption reduces energy usage in control applications.

Broader operating temperature range supports use in diverse environments. Compact size facilitates integration into dense circuit board designs.
