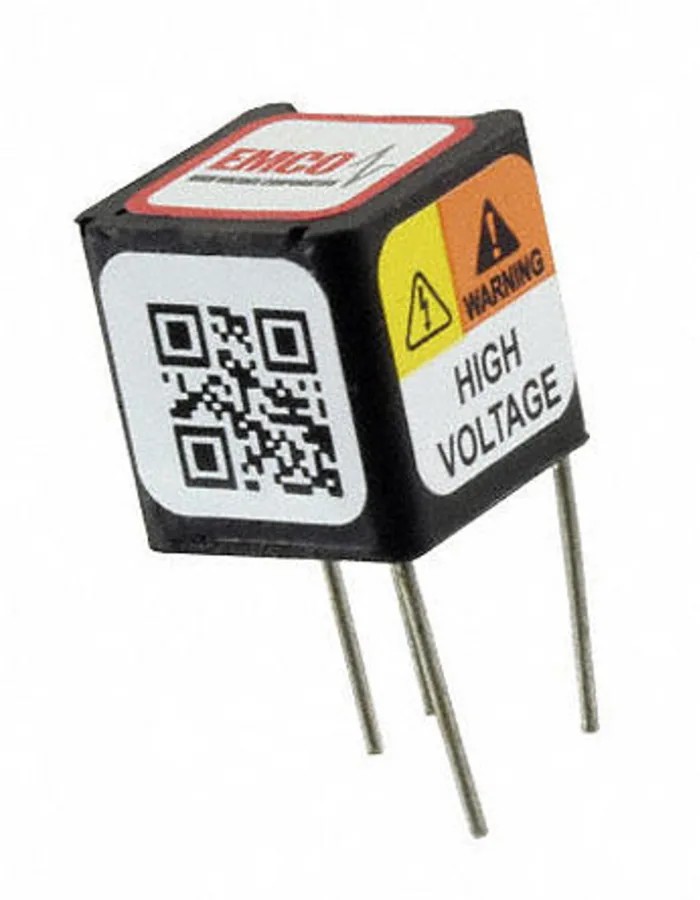

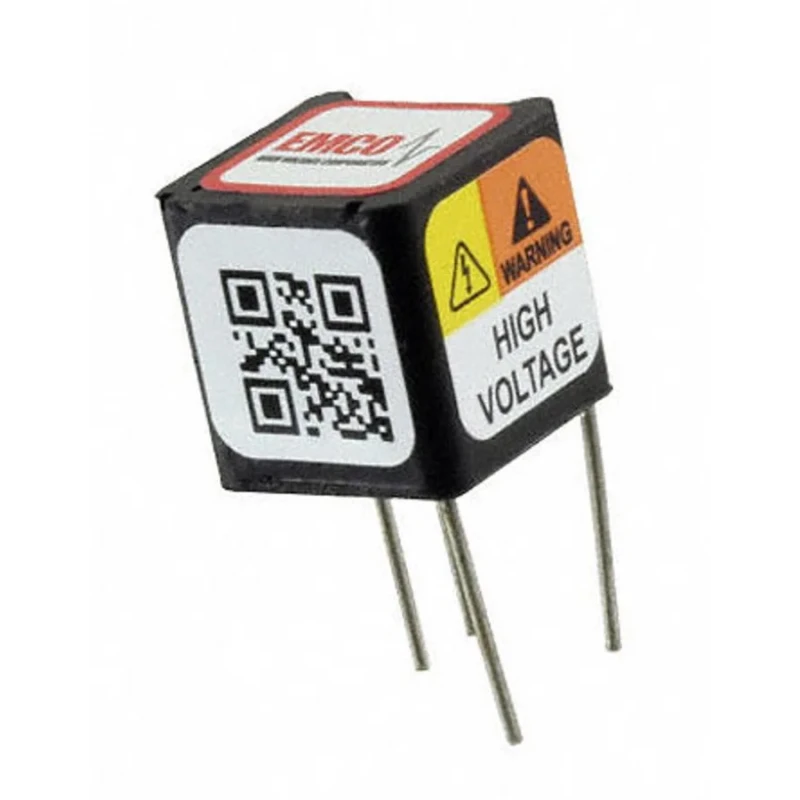

XP Power Ultra Miniature Through Hole DC/DC Converter 5V Input 250V Output 2mA 0.5W 70°C Max Temp Q025-5C

XP Power Q025-5C DC/DC Converter is a highly reliable ultra miniature DC to high voltage DC converter designed to operate at 5V input with a 250V output voltage and a maximum output current of 2mA.

This through-hole mounted device provides a compact solution with dimensions of 12.7mm width, length, and depth, weighing only 4.3 grams. It is engineered for low ripple and noise, featuring 0.25% peak-to-peak ripple, which ensures clean and stable voltage output essential for precision applications.

With an isolation voltage rating of 500V, it guarantees excellent input/output isolation to protect sensitive electronics from voltage spikes and electrical noise. The converter functions reliably within an operational temperature range of -25°C to 70°C, making it suitable for industrial and laboratory settings.

Additional features include short circuit protection and low leakage current, enhancing device robustness and longevity. It requires no external components, facilitating straightforward implementation into circuit designs.

Common applications for the XP Power Q Series include powering avalanche photodiodes, photomultiplier tubes, sustaining ion pumps, piezo devices, electrophoresis equipment, printers, igniters, and capacitor charging circuits. This makes it particularly useful in scientific instruments, medical devices, and industrial process control.

The product is manufactured in the United States and complies with UL and RoHS standards. The converter offers an output current of 2mA at 250V output voltage. It supports through-hole mounting for stable PCB installation.

Features low ripple and noise to provide clean voltage output. High isolation voltage of 500V ensures device and system protection. Compact size with 12.7mm cubic dimensions and lightweight design. Operating temperature from -25°C to 70°C allows use in harsh environments.

Includes short circuit protection for enhanced safety. Low leakage current minimizes power loss and interference. No external components required simplifies system integration. Ideal for industrial, laboratory, and scientific equipment applications.
