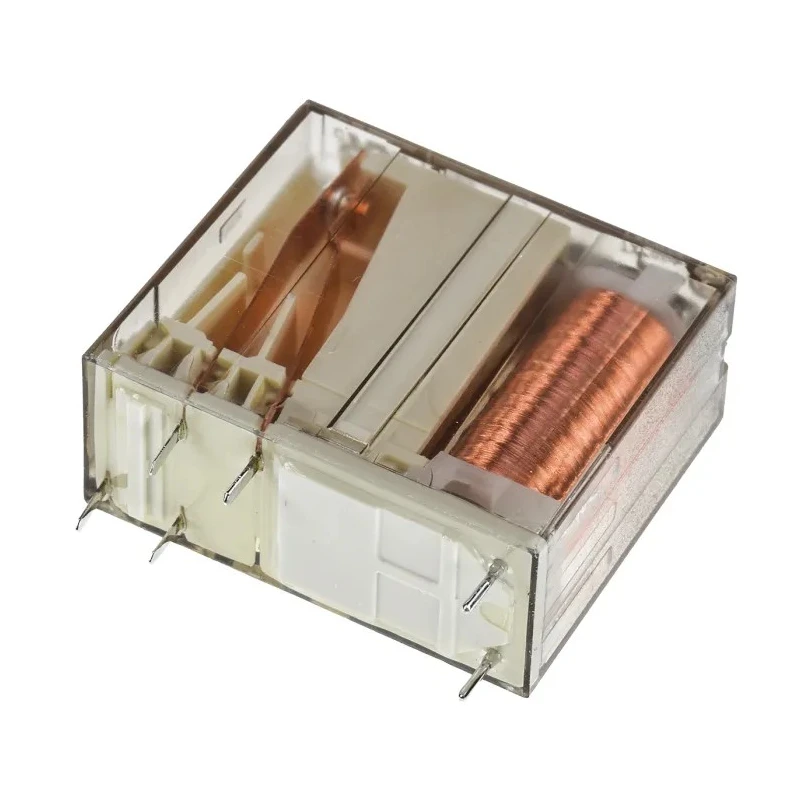

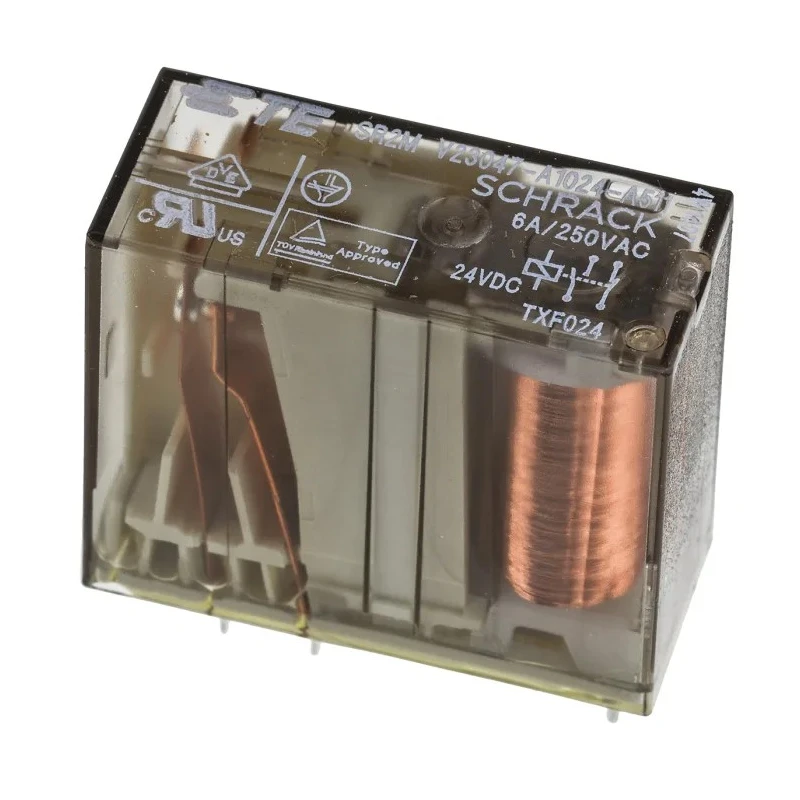

TE Connectivity PCB Force Guided Relay 24V DC Coil Voltage 2-Pole 1 NO/1 NC V23047-A1024-A511 1-1393258-7

TE Connectivity V23047-A1024-A511 1-1393258-7 is a high-quality PCB force guided relay designed for industrial, automation, and electrical applications requiring reliable switching performance. This relay operates with a 24V DC coil voltage and features a 2-pole contact configuration with 1 normally open (NO) and 1 normally closed (NC) contact, allowing for versatile control schemes.

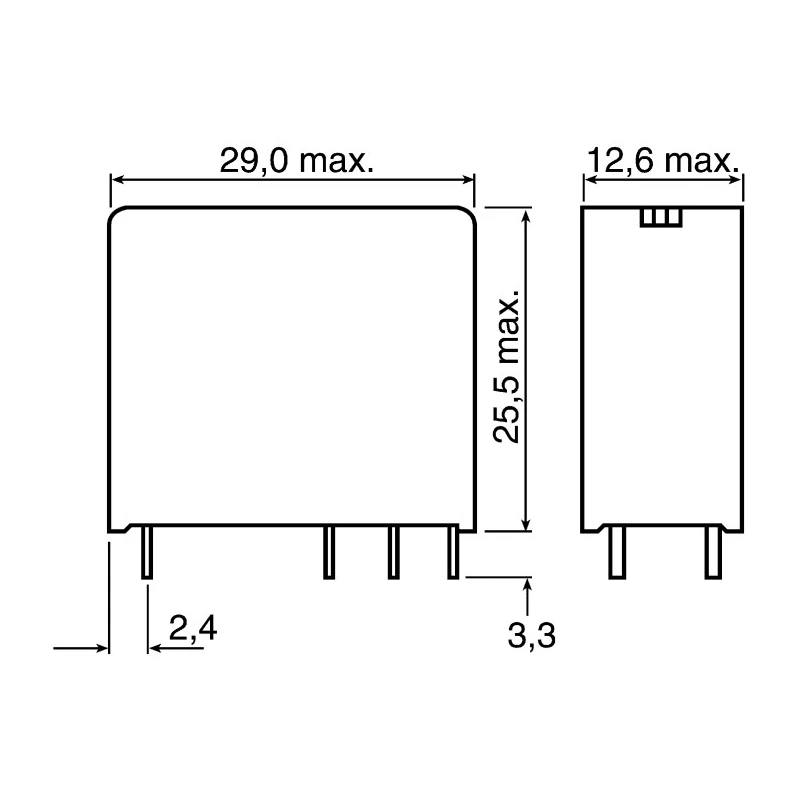

Its compact size with dimensions of 29 mm length, 25.5 mm height, and 12.6 mm depth makes it suitable for PCB installations where space savings are essential. The relay uses silver alloy contacts to ensure excellent conductivity and durability during operation, reducing contact wear and extending product life.

The coil resistance of 823 ohms and a coil power of 700 mW provide energy-efficient operation. The isolation between coil and contact rated at 4 kVrms offers strong electrical safety and minimizes interference. Designed to operate reliably across a wide temperature range from -25°C to 70°C, this relay is well suited for industrial and commercial equipment in demanding environments.

The solder terminal type ensures strong and secure electrical connections to the PCB assembly. The model belongs to the SR2M series, known for its monostable nature and suitability for pushdown switches using RM 2.54 mm pin spacing.

PCB mounting for reliable installation and integration. Low coil power consumption at 700 mW enhances efficiency. Silver alloy contacts provide excellent conductivity and durability. Wide operating temperature range from -25°C to 70°C.

High isolation rating of 4 kVrms coil to contact. Compact dimensions for space-saving PCB layout. Solder terminal type for secure electrical connection.

This TE Connectivity force guided relay is an ideal component for control systems, automation equipment, safety interlocks, and other industrial applications requiring reliable switching and safety compliance. It is manufactured in the Czech Republic, ensuring high quality standards and performance. Explore more products in the Force Guided Relays category for complementary devices and system integration at EnvMart.
