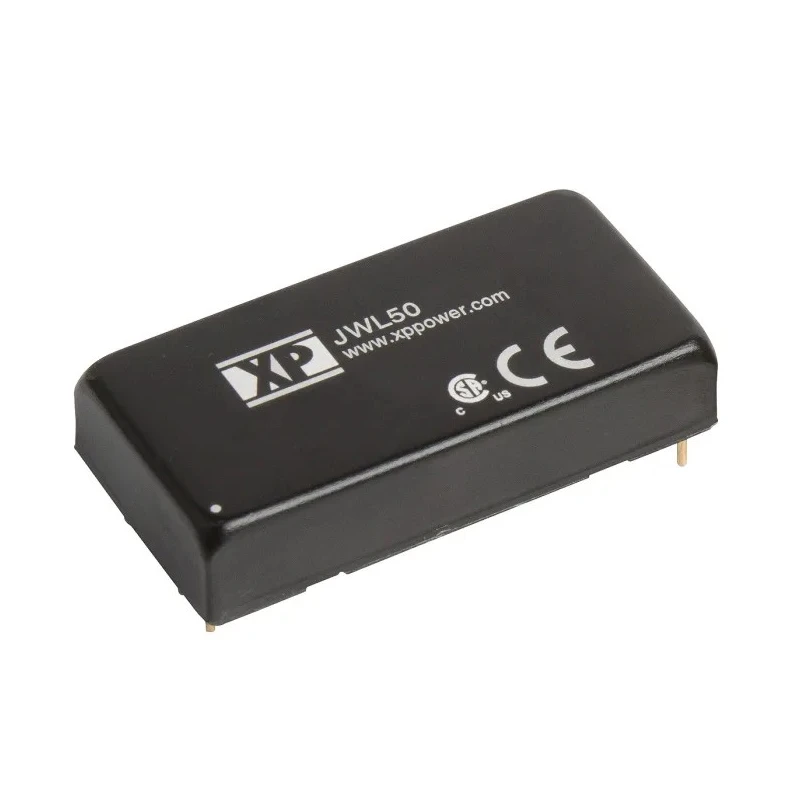

XP Power DC-DC Converter Through Hole 24 V DC Output, 2.08 A, 9-36 V DC Input, 50 W, Max Temp 105 °C JWL50
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JWL50 DC/DC Converter, 24V dc/ 2 |
| Brand | XP Power |
| Efficiency | 91% |
| Length | 50.8mm |
| Model | JWL50 |
| Depth | 11mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JWL50 |
| Maximum Operating Temperature | 105°C |
| Package Type | 2 x 1 in |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 50W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 2.08A |
| Output Voltage Adjustment Range | 9/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Operates over a wide input voltage range from 9 V to 36 V DC.
- Delivers a maximum output power of 50 W in a compact 2 x 1 inch metal package.
- Designed with a through-hole mount for secure PCB integration.
- Provides 1500 V DC isolation for safety and reliability.
- Operating temperature range from -40 °C to 105 °C for harsh environments.
- High efficiency of 91% to reduce energy loss and heat dissipation.
- Features six-pin configuration and a length of 50.8 mm, width 25.4 mm, depth 11 mm.
- Includes output voltage adjustment range of 9 to 36 V for flexible power supply settings.
Product Description
XP Power JWL50 DC-DC Converter is a highly reliable power supply solution designed for industrial, electronic components, and power systems applications. This unit provides a regulated 24 V DC output at 2.08 A with a broad 9 V to 36 V DC input range, supporting various input voltages with a 4:1 ratio. The converter features a sturdy 2 x 1 inch metal package optimized for through-hole mounting on printed circuit boards, offering a compact footprint and effective thermal management.
It includes six pins and measures 50.8 mm in length, 25.4 mm in width, and 11 mm in depth, making it suitable for space-constrained installations. The isolation voltage rating of 1.5 kV DC ensures electrical safety and isolation for use in sensitive equipment. The device operates efficiently at 91% efficiency, reducing power loss and heat generation, and supports a wide operating temperature range from -40 °C minimum to 105 °C maximum, suitable for demanding environments.
The voltage output may be adjusted from 9 to 36 V, adding versatility for different power requirements. This DC-DC converter series also meets industry-standard safety approvals and comes with a 3-year warranty, ensuring quality and long-term performance reliability.
Operates over a wide input voltage range from 9 V to 36 V DC. Delivers 50 W maximum output power in a compact 2 x 1 inch metal case. Through-hole mounting supports board-level integration and durability. High isolation voltage of 1.5 kV DC enhances safety in electronic equipment.
Wide operating temperature range from -40 °C to +105 °C accommodates harsh conditions. High efficiency of 91% reduces operational power loss and thermal buildup. Compact dimensions: length 50.8 mm, width 25.4 mm, depth 11 mm.
Single regulated output with adjustable voltage range 9 to 36 V. Ideal for industrial, power management, and electronic applications requiring reliable DC power conversion.
XP Power’s JWL50 series DC-DC converters are designed to improve production efficiency and power reliability across electronics manufacturing, industrial automation, and power supply systems. This product is part of EnvMart’s collection in DC/DC Converters offering trusted quality and performance. Explore our full catalog to find compatible power components tailored to your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a wide input voltage range from 9 V to 36 V DC.
The maximum output power is 50 W.
It measures 50.8 mm in length, 25.4 mm in width, and 11 mm in depth.
It provides a regulated output voltage of 24 V DC at 2.08 A.
The efficiency is rated at 91%.
This model is designed for through-hole mounting on printed circuit boards.
The isolation voltage rating is 1.5 kV DC.
It operates within a temperature range from -40 °C to 105 °C.
It has a single regulated output.
The output voltage can be adjusted from 9 V to 36 V.
The input ratio is 4:1.
The country of origin for this model is Taiwan.
