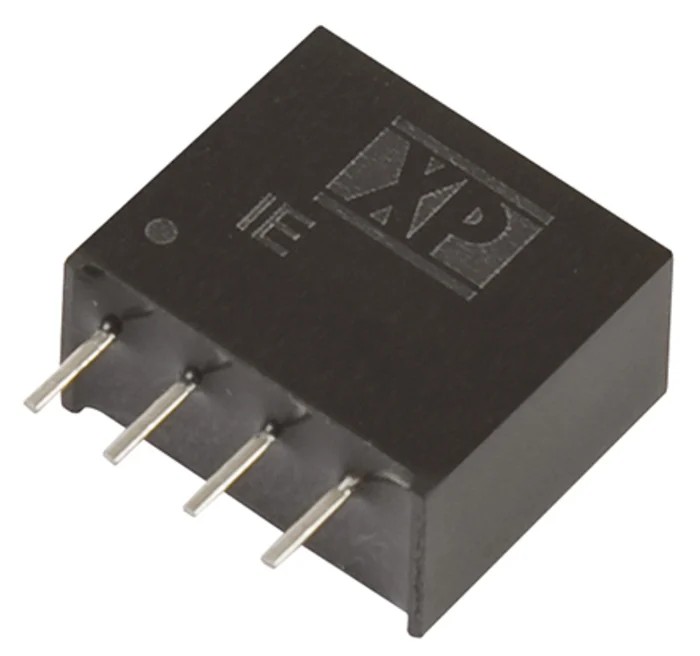

XP Power IE DC/DC Converter 12V DC 84 mA Output 5.5V Max Input Through Hole SIP Package IE0512SH
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IE DC/DC Converter, 12V dc/ 84 mA, 5 |
| Brand | XP Power |
| Efficiency | 78% |
| Length | 11.68mm |
| Model | IE0512SH |
| Depth | 10.15mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | IE |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 84mA |
| Isolation Voltage | 3kV dc |
Key Features
- Features a Through Hole mounting type suitable for stable PCB integration.
- Input voltage ranges from 4.5V minimum to 5.5V maximum ensuring operational flexibility.
- Provides robust 3000 VDC isolation voltage ensuring device safety and protection.
- Compact SIP package with dimensions of 11.68mm length, 6mm width, and 10.15mm depth for space-efficient installations.
- Operates reliably across a wide temperature range from -40°C to +85°C for industrial uses.
- Offers an efficiency rating of 78% to optimize power consumption.
- Designed with a 4-pin configuration supporting single output applications.
- Mean Time Between Failures (MTBF) of 1,100,000 hours indicating long-term reliability.
Product Description
XP Power IE0512SH is a high-quality DC/DC Converter designed for industrial and commercial electronic components requiring efficient isolated power conversion. This model outputs 12V DC at 84 mA with a nominal power rating of 1 W. It features a Through Hole SIP package, allowing straightforward mounting and integration on printed circuit boards, ideal for power supply and distribution circuits.
The converter supports input voltages ranging from 4.5 V to 5.5 V, making it versatile for various low voltage applications. It provides robust isolation voltage of 3000 VDC to ensure protection of sensitive electronics and meets safety requirements. Its operating temperature spans from -40°C to +85°C, enabling use in harsh environments across industrial, manufacturing, laboratory, and instrumentation sectors.
With compact dimensions of 11.68 mm (length), 6 mm (width), and 10.15 mm (depth), this device fits in limited spaces without compromising performance. The efficiency level of 78% ensures minimal energy loss during conversion, enhancing overall system efficiency.
The IE0512SH model features a 4-pin layout and single output construction, with a proven MTBF of 1,100,000 hours reflecting exceptional reliability and durability. Manufactured in Taiwan, Province Of China, this DC/DC converter is suitable for demanding applications requiring stable and isolated power supply conversion.
Through Hole mounting for secure PCB installation. Wide operating temperature range from -40°C to 85°C. Single output with 12V DC voltage and 84 mA current supply. 3000 VDC isolation voltage for enhanced safety. Compact SIP package with precise dimensions for space saving.
High mean time between failures (MTBF) ensures reliability. Energy-efficient 78% conversion efficiency. Designed for industrial, laboratory, and manufacturing power supply needs. Manufactured in Taiwan, Province Of China.
Explore the XP Power IE series DC/DC Converters at EnvMart for trusted power supply solutions that combine safety, reliability, and efficiency across a variety of electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 12V DC with a current of 84 mA.
The input voltage range for the IE0512SH is from 4.5V minimum to 5.5V maximum.
It features a Through Hole mounting type suitable for secure PCB integration.
The efficiency rating of this model is 78%, optimizing power consumption during operation.
The dimensions of this model are 11.68 mm in length, 6 mm in width, and 10.15 mm in depth.
The IE0512SH offers a robust isolation voltage of 3000 VDC to ensure device safety.
It operates reliably across a wide temperature range from -40°C to +85°C.
This model is designed with a single output configuration.
The MTBF for the IE0512SH is 1,100,000 hours, indicating long-term reliability.
This model comes in a compact SIP package, suitable for space-efficient installations.
The IE0512SH is manufactured in Taiwan, Province Of China.
This model is designed for industrial, laboratory, and manufacturing power supply needs.
