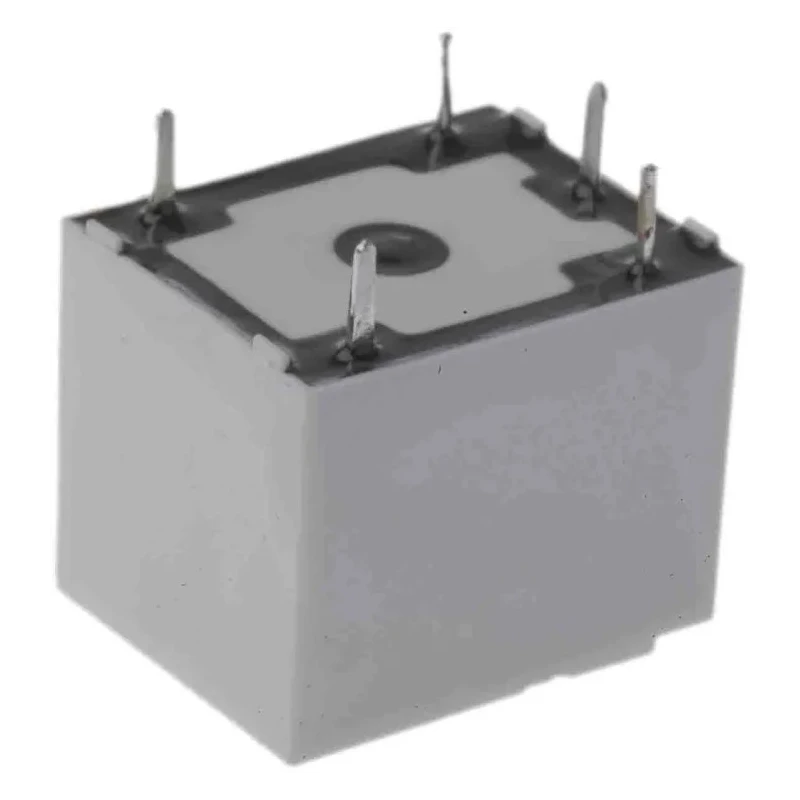

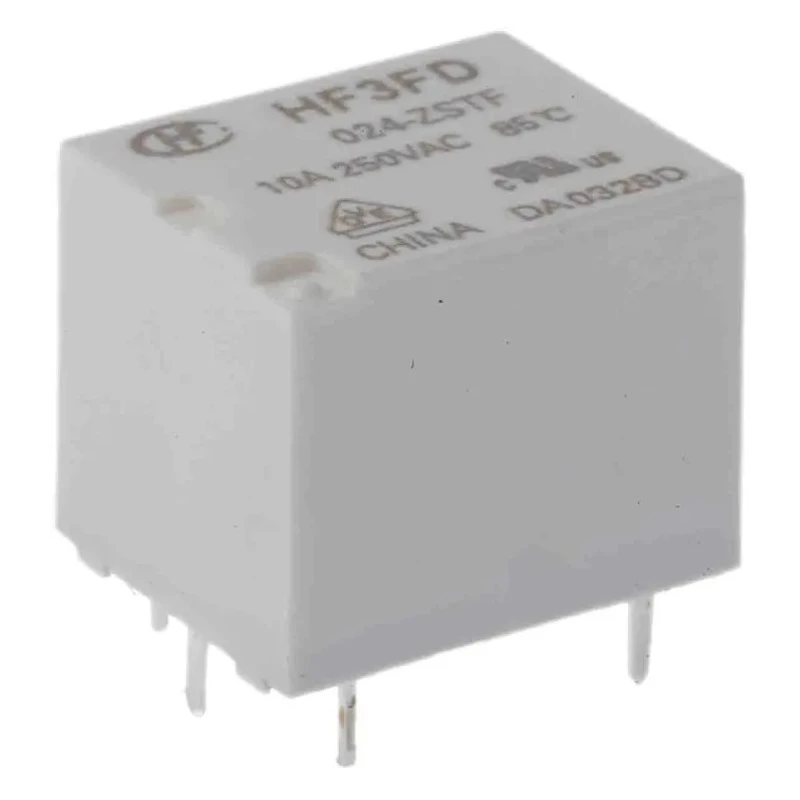

RS PRO Power Relay PCB Mount SPDT 24V DC Coil 10A Switching Current 276V AC 30V DC Switching Voltage 476-618
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.5mm |
| Length | 19mm |
| Model | 476-618 |
| Width | 15.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 360mW |
| Omron PCB Mount Non-Latching Relay, 24V dc Coil, 5A Switching Current, SPDTBrand | Omron |
Key Features
- Compact size with standard PCB layout suitable for industrial and automotive use.
- Coil voltage of 24V DC with coil power consumption of 360mW.
- Maximum switching power of 2.77 kVA with contact ratings of 10A at 277V AC and 30V DC.
- Resistant to temperatures from -40°C up to 105°C, ensuring durability.
- Contact material is silver alloy with low contact resistance of 100mΩ.
- Relay meets RoHS standards and is environmentally friendly with lead-free and cadmium-free materials.
- High dielectric strength of 2.5 kV between coil and contacts enhances reliability.
- IP67 rated for protection against dust and water ingress.
Product Description
RS PRO 476-618 power relay is a high-quality PCB mount SPDT relay with a 24V DC coil and 10A switching current designed for demanding electrical and automation applications. It operates efficiently with a coil power of 360mW and features a compact form factor measuring 19mm in length, 15.2mm in width, and 15.5mm in height. The relay's robust design ensures reliable switching for both AC (up to 277V) and DC (up to 30V) circuits, suitable for industrial, automotive, and household equipment.
This non-latching relay offers excellent performance with its silver alloy contacts that maintain low contact resistance of 100mΩ and withstand maximum operating temperatures up to 105°C. The coil resistance of 1.6kΩ and high dielectric strength of 2.5 kV ensure safe operation within electrical systems. The device complies with RoHS directives, fostering environmentally responsible use by being lead-free and cadmium-free.
The relay's IP67 rating provides protection against dust and water ingress, making it trustworthy for harsh environments. It is ideal for use in automotive engine control systems, industrial machinery, medical devices, telecommunications equipment, and household appliances where precise and reliable switching is critical.
Compact and standardized PCB mounting design. Robust silver alloy contacts for longevity and performance. Wide operating temperature range from -40°C to 105°C. Compliance with RoHS standards ensuring eco-friendly materials.
High dielectric strength for electrical safety. IP67 rated for environmental protection. Suitable for automotive, industrial, medical, and telecom applications. Non-latching relay returns to default position when de-energized.
RS PRO delivers industrial-grade components engineered for durability and efficiency. This 476-618 Power Relay is a reliable choice for all your electrical switching needs. Explore more quality relays and industrial components on EnvMart to support your projects and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a maximum switching current of 10A.
It operates with a coil voltage of 24V DC and has a coil power consumption of 360mW.
The relay measures 19mm in length, 15.2mm in width, and 15.5mm in height.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The maximum operating temperature is 105°C, while the minimum is -40°C.
It is designed for PCB mounting.
The contact material is silver alloy, which helps maintain low contact resistance.
It has a high dielectric strength of 2.5 kV between the coil and contacts.
The relay can switch AC voltage up to 277V and DC voltage up to 30V.
Yes, it meets RoHS standards, ensuring it is lead-free and cadmium-free.
The contact resistance is rated at 100mΩ.
This relay is suitable for automotive, industrial, medical, and telecommunications applications.
