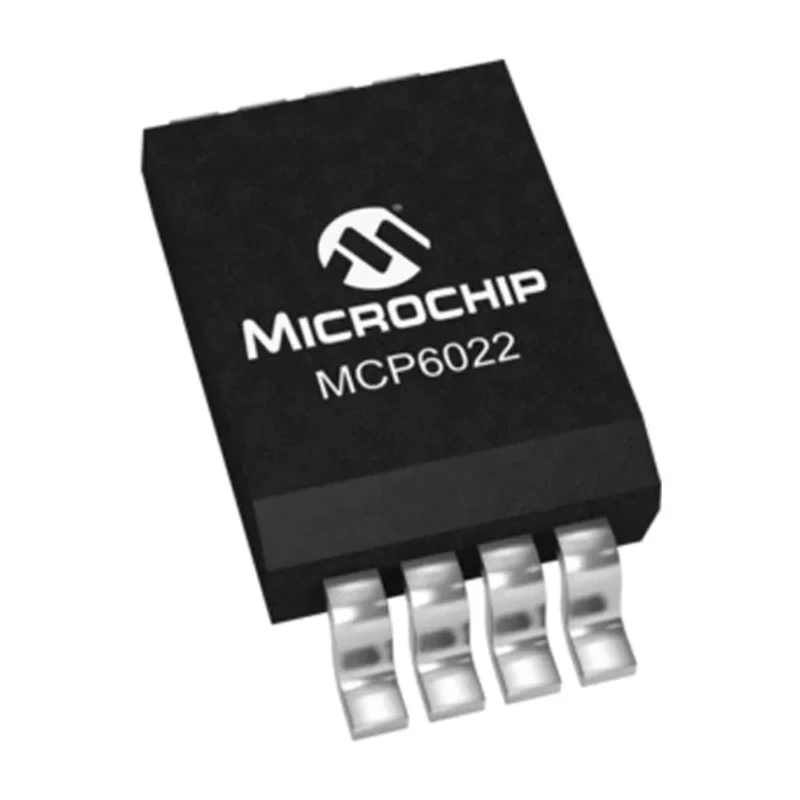

Microchip Operational Amplifier MCP6022-I/SN 10 MHz 5.5V 8-Pin SOIC Dual Channel
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | MCP6022-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6022 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 7V/μs |
| MCP6022-E/SN Microchip, Operational Amplifier, 10 MHz, 8-Pin 5.5V SOICBrand | Microchip |
Key Features
- The amplifier operates with a supply voltage ranging between 3 V and 5.5 V.
- It features a gain bandwidth product of 10 MHz suitable for moderate frequency applications.
- The input offset voltage is ±500 μV, ensuring precise signal amplification.
- The device includes two operational amplifier channels in an 8-pin SOIC package.
- It operates reliably between -40°C to 85°C temperature range.
- The input bias current is ultra-low at 1 picoampere, minimizing signal distortion.
- Provides a fast slew rate of 7 V/μs for rapid signal response.
- Output current capability is up to 30 mA for driving loads effectively.
Product Description
Microchip MCP6022-I/SN is a high-performance dual operational amplifier designed for precision and efficiency in electronic circuit applications. Featuring a gain bandwidth product of 10 MHz, it effectively amplifies signals up to moderate frequencies, making it ideal for audio, sensor interfacing, and control systems in industrial and commercial electronics.
This amplifier operates within a supply voltage range of 3 V to 5.5 V, housed in a compact 8-pin SOIC surface-mount package. Its ultra-low input bias current of 1 picoampere and minimal input offset voltage of ±500 μV provide excellent accuracy and low noise amplification, critical for sensitive instrumentation and measurement equipment.
The device supports a maximum operating temperature of 85°C and functions reliably in harsh environments, with the ability to withstand temperatures as low as -40°C. The high slew rate of 7 V/μs ensures fast transient response, essential for dynamic signal processing.
Designed to deliver up to 30 mA of output current, it can drive moderate loads directly. Compliance with RoHS directives supports environmentally responsible manufacturing, while production in Thailand ensures quality control and consistency.
The amplifier's compact physical dimensions of 4.9 mm length, 3.9 mm width, and 1.5 mm height make it suitable for dense PCB layouts in embedded systems, laboratory instrumentation, telecommunications equipment, and control systems in industrial automation.
Dual operational amplifier channels in a single SOIC package. 10 MHz gain bandwidth product for versatile signal amplification. Low input offset voltage and bias current for precision. Fast 7 V/μs slew rate for signal integrity and speed.
Wide operating temperature range from -40°C to 85°C. Can supply output current of up to 30 mA. Compact surface-mount SOIC package for space-saving design. Manufactured in Thailand, ensuring high quality. RoHS compliant for environmental safety.
Microchip MCP6022-I/SN operational amplifier is suitable for electronic, industrial, and laboratory applications requiring reliable, precise amplification. Explore more components like this in the Operational Amplifier category on EnvMart for optimized design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6022-I/SN features a gain bandwidth product of 10 MHz, making it suitable for moderate frequency applications.
This model operates with a supply voltage ranging from 3 V to 5.5 V.
It can supply an output current of up to 30 mA, allowing it to drive moderate loads effectively.
The MCP6022-I/SN operates reliably within a temperature range of -40°C to 85°C.
This operational amplifier has an ultra-low input bias current of 1 picoampere.
It is housed in an 8-pin SOIC surface-mount package, suitable for compact designs.
The MCP6022-I/SN has a fast slew rate of 7 V/μs, which ensures rapid signal response.
This model includes two operational amplifier channels in a single package.
The dimensions are 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height.
Yes, this operational amplifier complies with RoHS directives, supporting environmentally responsible manufacturing.
It is suitable for applications such as audio, sensor interfacing, and control systems in industrial and commercial electronics.
This operational amplifier is manufactured in Thailand, ensuring quality control and consistency.
