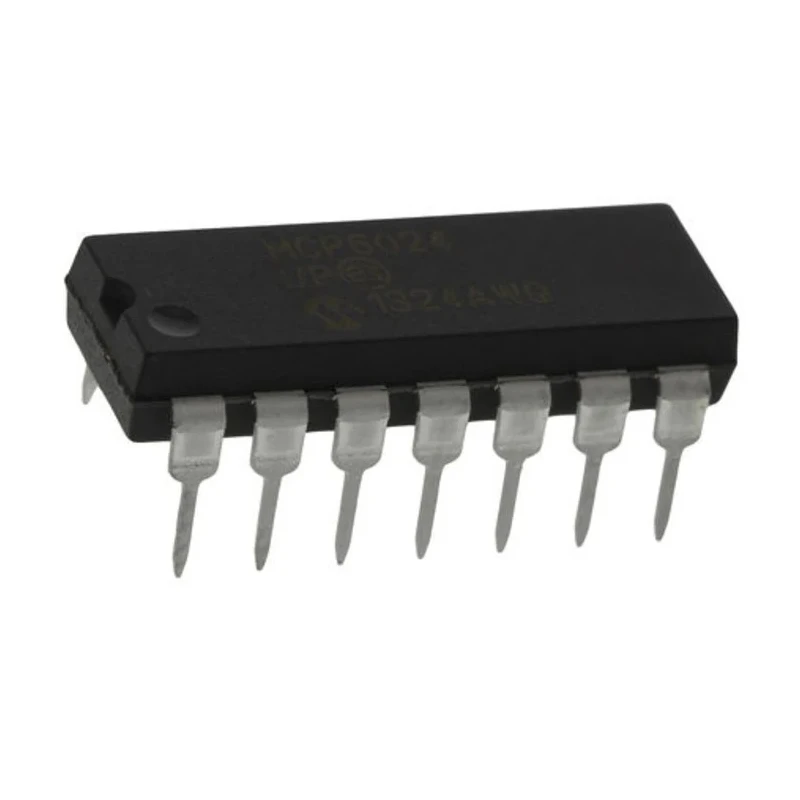

Microchip Operational Amplifier 10 MHz 4-Channel 14-Pin PDIP 3-5.5V MCP6024-I/P
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 19.05mm |
| Model | MCP6024-I/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | MCP6024 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 7V/μs |
Key Features
- Features a 4-channel configuration for versatile signal amplification.
- Operates at a voltage range from 3 V to 5.5 V for low power consumption.
- Gain bandwidth product of 10 MHz enables high-speed signal processing.
- Through hole mount with PDIP package simplifies PCB assembly.
- Input bias current as low as 1 pA for high precision applications.
- Supports operating temperatures from -40°C to 85°C for reliability in diverse environments.
- Low input offset voltage ±500 μV ensures accurate signal amplification.
- Slew rate of 7 V/μs provides quick response for fast signals.
Product Description
Microchip MCP6024-I/P is a high precision operational amplifier featuring four independent channels designed for through-hole mounting in a 14-pin PDIP package. It delivers a gain bandwidth product of 10 MHz and operates efficiently within a supply voltage range of 3 V to 5.5 V, enabling multiple industrial, electronic, and commercial applications where precision and speed are critical.
This operational amplifier is optimized for low input bias current of 1 pA and a minimal input offset voltage of ±500 μV, enhancing accuracy in sensitive signal conditioning circuits. With an output current capacity of 30 mA and a fast slew rate of 7 V/μs, the MCP6024-I/P is well suited for driving loads in instrumentation, sensor interfacing, and audio signal processing applications.
The device's operating temperature range from -40°C to 85°C underscores its robust design for challenging industrial environments, while its RoHS compliance aligns with environmental regulations. Precision electronic designers will find this amplifier ideal for applications demanding reliability and speed, including laboratory instrumentation, industrial control, and communication equipment.
Features a 4-channel configuration for versatile signal amplification. Operates at a voltage range from 3 V to 5.5 V for low power consumption. Gain bandwidth product of 10 MHz enables high-speed signal processing. Through hole mount with PDIP package simplifies PCB assembly.
Input bias current as low as 1 pA for high precision applications. Supports operating temperatures from -40°C to 85°C for reliability in diverse environments. Low input offset voltage ±500 μV ensures accurate signal amplification.
Slew rate of 7 V/μs provides quick response for fast signals. Maximum output current of 30 mA suitable for driving loads. RoHS compliant with Thailand country of origin.
This operational amplifier is suitable for applications in industrial automation, electronic test equipment, medical instrumentation, telecommunications, and embedded systems where precise amplification and stable operation are required.
Explore more Operational Amplifiers and related semiconductor components at EnvMart for your specialized electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 10 MHz, enabling high-speed signal processing.
It operates within a supply voltage range of 3 V to 5.5 V, allowing for low power consumption.
This model features a 4-channel configuration for versatile signal amplification.
The maximum output current is 30 mA, suitable for driving loads in various applications.
The input bias current is as low as 1 pA, which enhances precision in sensitive applications.
It supports an operating temperature range from -40°C to 85°C, ensuring reliability in diverse environments.
The slew rate is 7 V/μs, providing a quick response for fast signals.
It comes in a 14-pin PDIP package, which simplifies PCB assembly through hole mounting.
Yes, this operational amplifier is RoHS compliant, aligning with environmental regulations.
The dimensions are 19.05 mm in length, 6.35 mm in width, and 3.3 mm in height.
It is suitable for applications in industrial automation, electronic test equipment, medical instrumentation, telecommunications, and embedded systems.
The input offset voltage is ±500 μV, ensuring accurate signal amplification.
