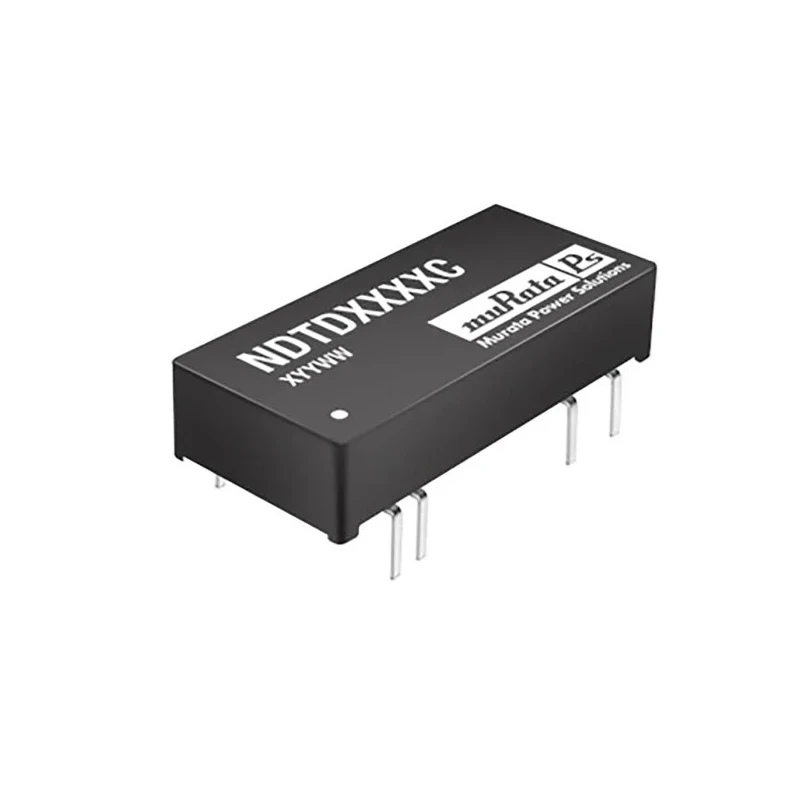

Murata Power Solutions DC/DC Converter 15V dc, -15 V dc Output, 100 mA, 18-36V dc Input, 3W, Through Hole Mount NDTD2415C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NDTD DC/DC Converter, 15V d |
| Brand | Murata Power Solutions |
| Efficiency | 82% |
| Length | 32.26mm |
| Model | NDTD2415C |
| Depth | 7mm |
| Gross Weight | 6g |
| Width | 32.26mm |
| Mount Type | Through Hole |
| Series | NDTD |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 15, -15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1kV dc |
| Wide 2 | 1 input voltage range |
Key Features
- Provides dual regulated output voltages of 15V dc and -15V dc for stable power supply.
- Operates efficiently with 3W maximum output power and 82% efficiency.
- Through hole mounting style in a DIP24 plastic package for easy PCB assembly.
- Features 1kV dc isolation voltage for enhanced electrical safety and noise reduction.

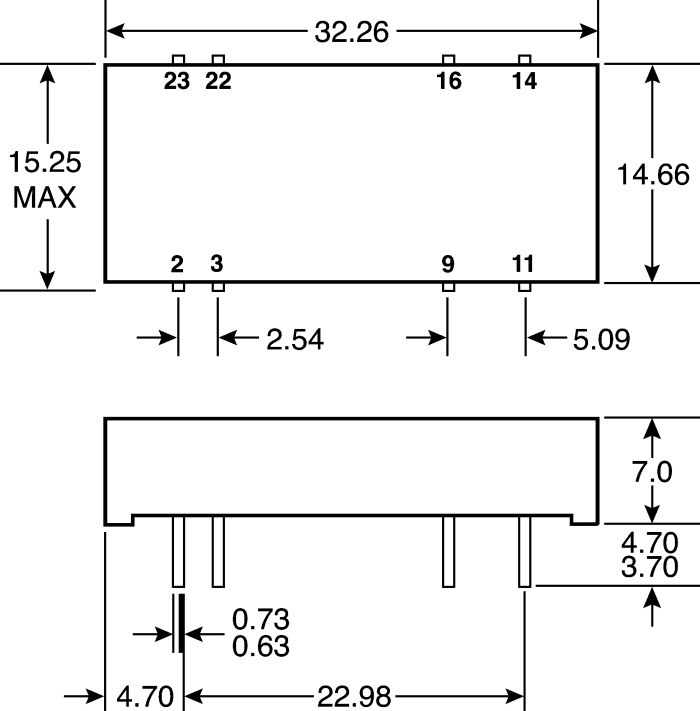

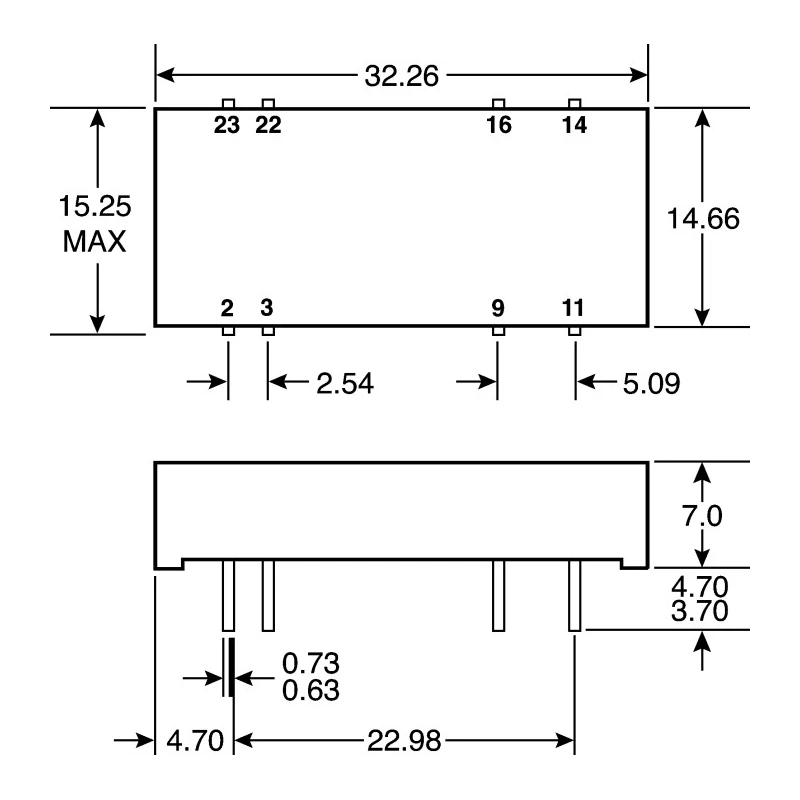

- Compact size with dimensions 32.26mm length, 32.26mm width, and 7mm depth.
- Wide operating temperature range from -40°C to 85°C suitable for various industrial environments.
- Low ripple and noise of 150mV peak-to-peak ensures clean power output.
- Constructed with UL94V-0 flame retardant material for superior durability.
Product Description
Murata Power Solutions NDTD2415C DC/DC Converter is a high-performance, regulated, isolated power module providing dual 15V dc output voltages at 100 mA current each. Designed for through hole mounting in a compact DIP24 plastic package, this converter accepts input voltages ranging from 18V dc to 36V dc. With a maximum output power of 3W and an efficiency of 82%, it offers reliable performance in a small footprint measuring 32.26mm by 32.26mm by 7mm.
This converter incorporates a 1kV dc isolation barrier between input and output, ensuring safe operation and minimizing noise interference in demanding electronic environments. The low ripple and noise specification of 150mV peak-to-peak guarantees a clean and stable power source for sensitive equipment.
Constructed using UL94V-0 rated flame retardant materials, the component provides safety and durability. The device operates reliably over a wide temperature range from -40°C to 85°C, suited for harsh industrial and commercial conditions. Its internal SMD construction and continuous short circuit protection enhance the converter's robustness and longevity.
Key applications include industrial automation systems, measurement and control devices, laboratory instruments, and other equipment requiring isolated dual output DC power within the voltage and current ratings specified.
Dual regulated output voltages of 15V dc and -15V dc at 100 mA output current. Wide input voltage range from 18V dc to 36V dc for flexible power sources. Through hole mount DIP24 plastic package simplifies PCB implementation.
1kV dc isolation voltage ensures electrical isolation and noise reduction. Compact dimensions: 32.26mm length and width, 7mm depth. Efficiency of 82% enables energy-saving operation. Low ripple and noise performance at 150mV peak-to-peak.
Wide operating temperature range from -40°C to 85°C. UL94V-0 rated flame retardant package material. Internal continuous short circuit protection increases reliability. EnvMart customers can explore the related category of DC/DC Converters for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V dc to 36V dc.
This converter provides dual regulated output voltages of 15V dc and -15V dc.
The maximum output power of this model is 3W.
The efficiency rating of this converter is 82%.
It has dimensions of 32.26mm in length, 32.26mm in width, and 7mm in depth.
The isolation voltage of the NDTD2415C is 1kV dc, providing enhanced electrical safety.
The ripple and noise specification for this model is 150mV peak-to-peak.
This converter operates within a temperature range from -40°C to 85°C.
The NDTD2415C is designed for through hole mounting.
It is constructed with UL94V-0 rated flame retardant materials for safety and durability.
This model is suitable for applications in industrial automation systems, measurement and control devices, and laboratory instruments.
The gross weight of this converter is 6g.
