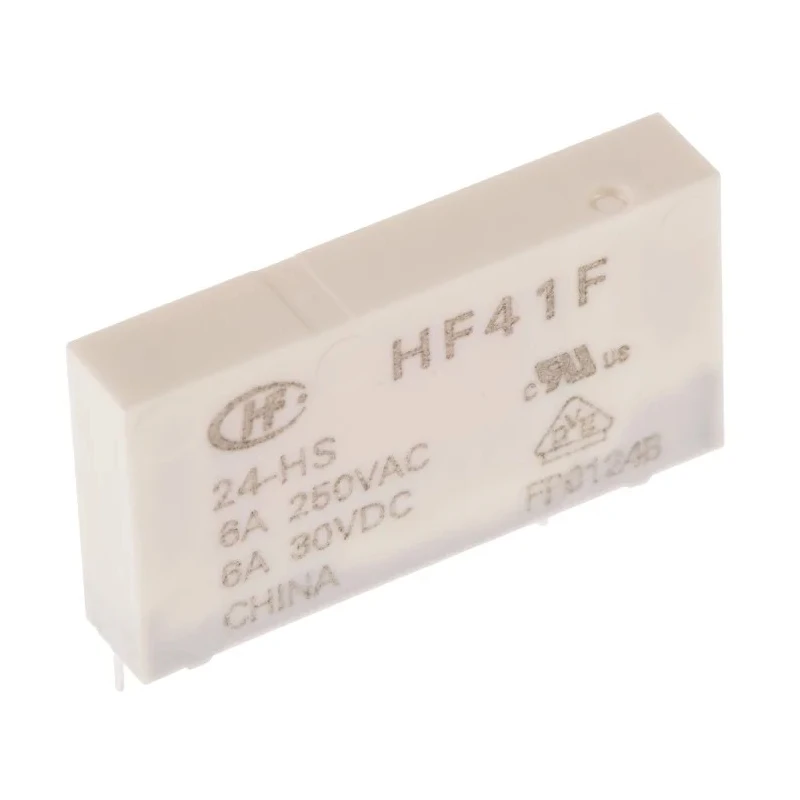

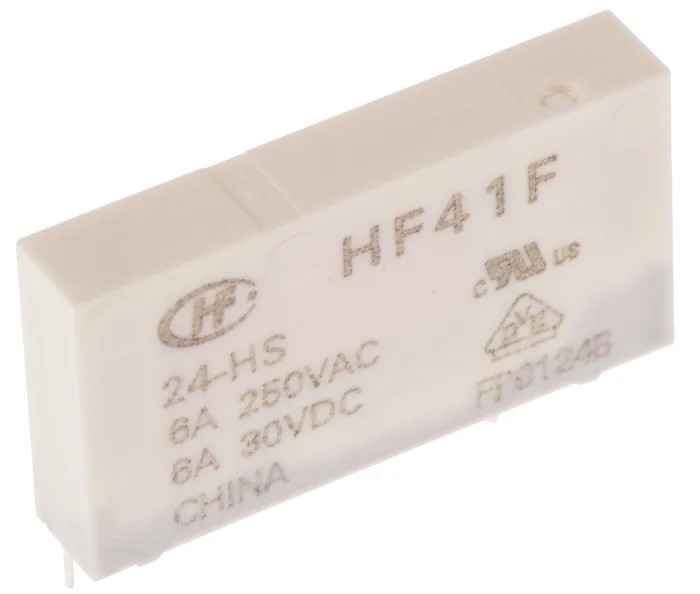

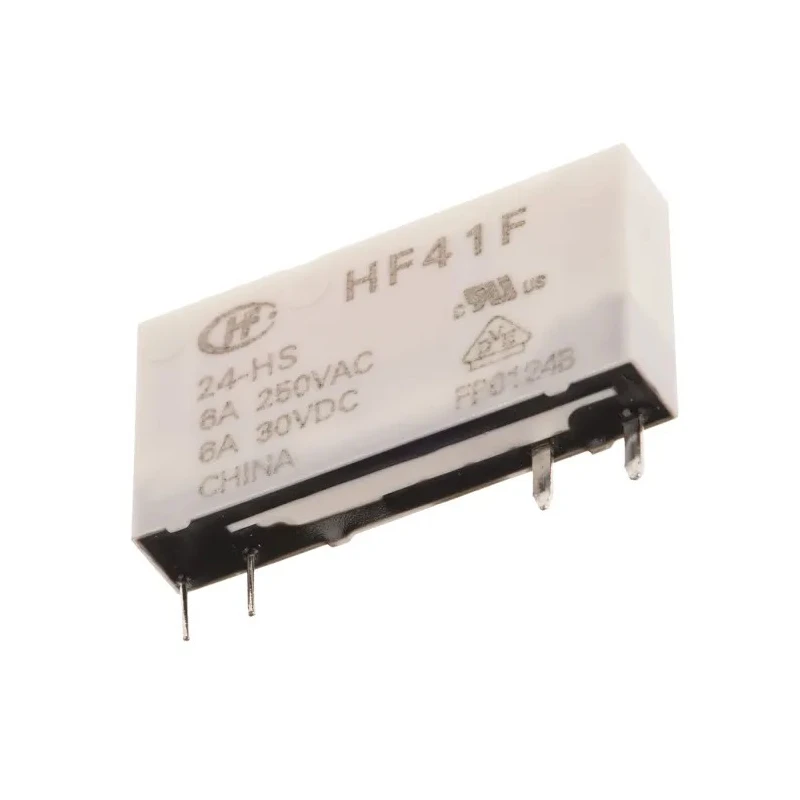

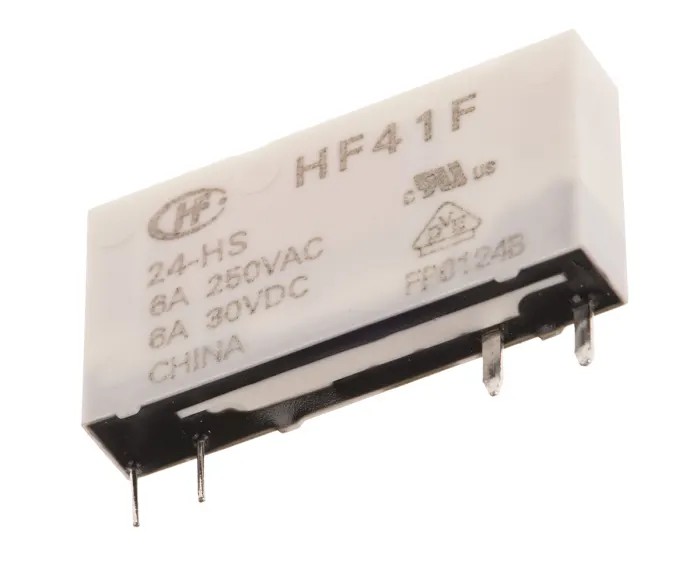

RS PRO Power Relay PCB Mount 24V dc Coil 6A Switching Current SPST 125V AC/DC Silver Alloy 800-4552
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15mm |
| Length | 28mm |
| Model | 800-4552 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Through Hole |
| Standards/Approvals | UR, CQC |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 170mW |
Key Features
- Compact slim size with a 5mm width for space-efficient PCB integration.
- High sensitivity coil consuming only 170mW power for energy-efficient operation.
- Rated switching current of 6A and switching AC/DC voltage up to 125V.
- Constructed with silver alloy contacts ensuring reliable conductivity and durability.
- Wide operating temperature range from -40°C to 85°C for varied environmental conditions.
- High dielectric strength of 4kV between coil and contacts for enhanced electrical isolation.
- Surge voltage withstand capability up to 6kV between coil and contacts for robust performance.
- Thoroughly tested and certified to UL and VDE standards ensuring quality and safety compliance.
Product Description
RS PRO 800-4552 Power Relay is a reliable and slim PCB mount relay designed for electrical and automation applications requiring efficient power switching. Featuring a 24V dc coil voltage and a single pole single throw (SPST) contact configuration, this relay is optimized for space-saving through hole mounting on printed circuit boards.
Its coil power consumption is only 170mW, providing high sensitivity and energy efficiency. The relay switches currents up to 6A and can handle AC/DC voltages of 125V, making it suitable for controlling power in various industrial and commercial electrical circuits.
Constructed with silver alloy contact material, the relay ensures low contact resistance and high reliability. The device operates across a broad temperature range from -40°C to 85°C, allowing it to perform in demanding environmental conditions.
Electrically, it offers a strong dielectric strength of 4kV between coil and contacts, and can withstand surge voltages up to 6kV, protecting circuits against transient voltage spikes. The clearance and creepage distance of 8mm adds to the safety margins required in industrial contexts.
This power relay complies with both UL (File no. E133481) and VDE (File no. 40020043) certifications, reflecting its adherence to international standards for performance and safety.
Ideal for use in industrial automation, manufacturing equipment, HVAC systems, and other applications requiring reliable power relay switching, the RS PRO 800-4552 provides durable and consistent operation.
Compact slim size with a 5mm width for efficient PCB integration. Low coil power consumption of 170mW for energy saving. 6A switching current rating for robust power switching. Silver alloy contacts for excellent conductivity and durability.
Wide operating temperature range of -40°C to 85°C. High dielectric strength and surge voltage resistance. Compliance with UL and VDE safety standards. Through hole terminal type for stable mounting. Clearance/creepage distance of 8mm for electrical safety.
Designed for industrial and commercial power relay applications. Explore more Power Relay solutions and accessories at EnvMart to meet your automation and electrical control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO power relay has a switching current rating of 6A.
This model operates with a coil voltage of 24V DC.
The relay measures 28mm in length, 13mm in width, and 15mm in height.
It features a single pole single throw (SPST) contact configuration.
The coil power consumption is 170mW, making it energy-efficient.
The maximum operating temperature is 85°C.
It has a high dielectric strength of 4kV between the coil and contacts.
This relay can withstand surge voltages up to 6kV.
It is designed for PCB mounting with a through hole terminal type.
The contacts are constructed from silver alloy, ensuring reliable conductivity.
It is certified to UL and VDE standards, ensuring quality and safety compliance.
The minimum operating temperature is -40°C, allowing it to function in diverse environmental conditions.
