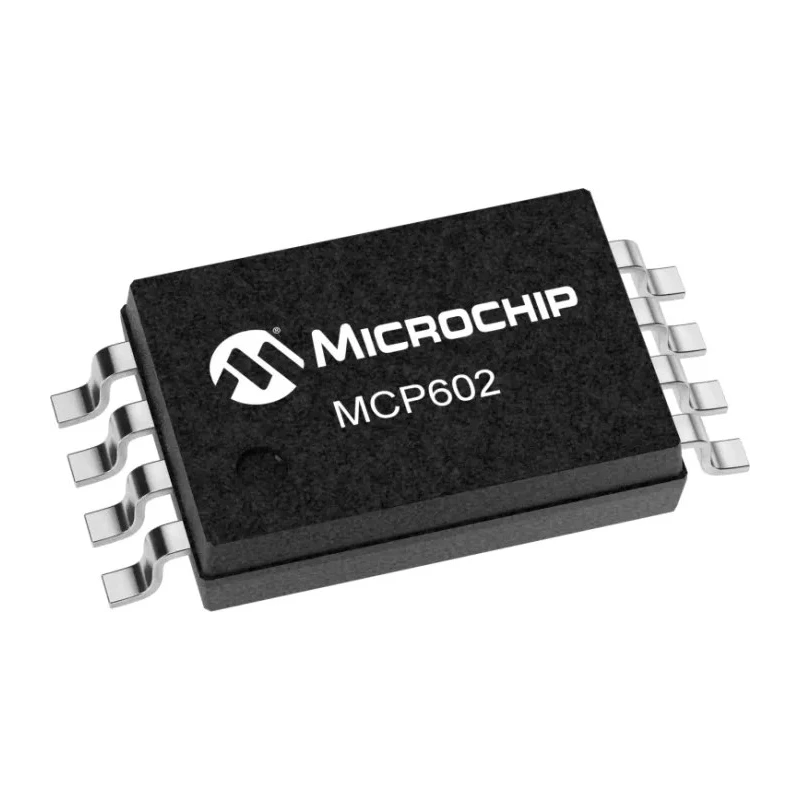

Microchip Operational Amplifier 2.8 MHz Gain Bandwidth, 8-Pin SOIC, 2.7-6 V Supply MCP602T-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | MCP602T-I/ST |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP602 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 2.8MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 2.3V/μs |
Key Features
- Advanced CMOS technology ensures low bias current and high-speed operation.
- Wide industrial temperature range from -40°C to 85°C supports robust use cases.
- Rail-to-rail output swing maximizes output voltage range.
- Low quiescent current ideal for battery-powered circuits.
- Input range includes ground for improved signal handling.
- Slew rate of 2.3 V/μs allows fast signal transitions.
- Output current capability up to 30 mA supports diverse applications.
Product Description
Microchip MCP602T-I/ST operational amplifier is a dual low-power Op Amp designed using advanced CMOS technology. This device provides high open-loop gain, low input bias current of 1 pA, and a bandwidth of 2.8 MHz. It operates with a single supply voltage ranging from 2.7 V to 6 V making it suitable for portable and battery-operated equipment.
The 8-pin SOIC package with compact dimensions (4.9 mm length, 3.9 mm width, 1.75 mm height) fits in space-constrained circuit boards. Its rail-to-rail output swing enables maximum utilization of the supply voltage, enhancing output signal range.
The amplifier supports an industrial operating temperature range from -40°C to 85°C, ensuring reliability in harsh environments. Its slew rate of 2.3 V/μs allows the device to respond quickly to changes in input signals, which is critical for high-speed applications.
With an output current capacity of 30 mA, the MCP602T-I/ST can drive various loads. The low quiescent current feature makes it highly efficient for applications such as analog-to-digital converter inputs, anti-aliasing filters, and other low power analog systems.
Manufactured under RoHS compliance, this operational amplifier is widely used in industrial, laboratory, and consumer electronics projects needing precise and stable signal amplification.
Advanced CMOS low bias current and high-speed operation. Wide temperature range from -40°C to 85°C for industrial use. Rail-to-rail output maximizes output voltage swing. Low quiescent current suitable for battery-operated devices.
Slew rate of 2.3 V/μs for rapid signal response. Compact 8-pin SOIC package dimensions. 30 mA output current capability for diverse load driving. Input bias current as low as 1 pA offers high precision. Explore more Operational Amplifiers at EnvMart for versatile industrial and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of the MCP602T-I/ST operational amplifier is 2.8 MHz.
This operational amplifier operates with a supply voltage ranging from 2.7 V to 6 V.
The MCP602T-I/ST can provide an output current of up to 30 mA, suitable for driving various loads.
The package dimensions are 4.9 mm in length, 3.9 mm in width, and 1.75 mm in height.
The input bias current for the MCP602T-I/ST is as low as 1 pA, providing high precision in signal amplification.
This model operates within an industrial temperature range of -40°C to 85°C, ensuring reliability in harsh environments.
The slew rate of the MCP602T-I/ST is 2.3 V/μs, allowing for rapid signal response.
This operational amplifier uses a surface mount type for installation.
Yes, the MCP602T-I/ST is manufactured under RoHS compliance.
The MCP602T-I/ST is suitable for applications such as analog-to-digital converter inputs and anti-aliasing filters, among others.
The rail-to-rail output swing of the MCP602T-I/ST maximizes the output voltage range, enhancing signal utilization.
The MCP602T-I/ST belongs to the MCP602 series of operational amplifiers.
