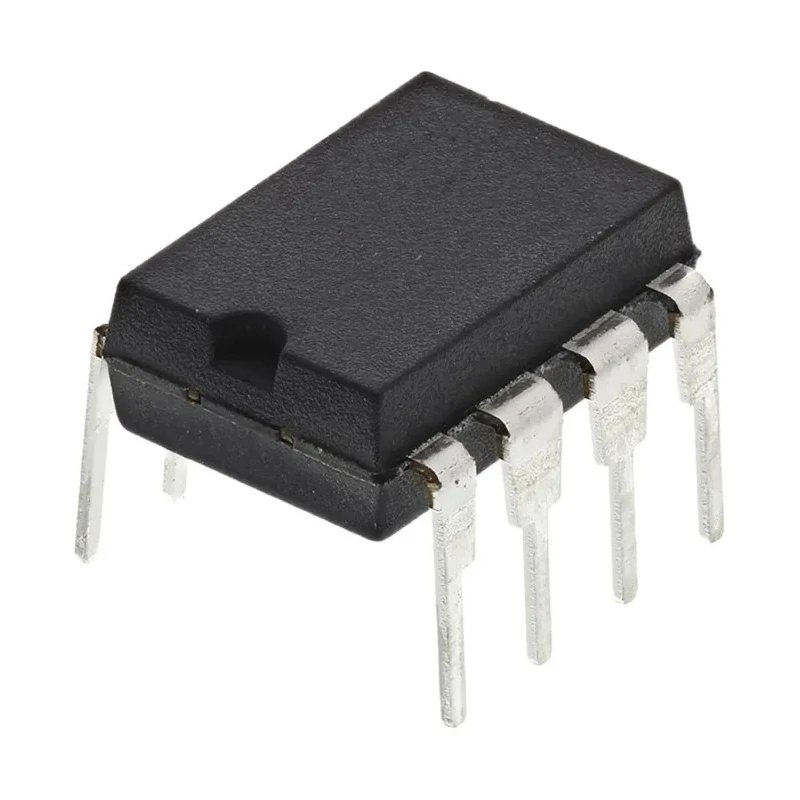

Microchip 128 kB Serial SPI EEPROM 8-Pin PDIP 2.5V to 5.5V 10MHz 25LC128-I/P

Microchip 25LC128-I/P is a Serial EEPROM memory device providing 128 kB of storage capacity within a compact 8-pin PDIP package. It uses a Serial SPI interface to facilitate high-speed data transfer at frequencies up to 10MHz. The device operates across a supply voltage range of 2.5V to 5.5V, making it compatible with various system voltages and ensuring versatile use in multiple electronic designs.

Designed to meet automotive quality standards (AEC-Q100), the 25LC128-I/P is suited for demanding environments and industrial applications. It supports a wide operating temperature range from -40°C to 85°C, allowing reliable operation in harsh temperature conditions. The memory architecture features 16k words of 8 bits each, optimized for embedded system storage requirements.

The device offers low power consumption with a typical supply current of 5mA and maintains data retention for up to 200 years, ensuring long-term data preservation. Access times are rapid, with a maximum random access time of 160ns, which contributes to efficient system performance in timing-critical applications.

Its through-hole mounting style simplifies assembly and prototyping, making it an excellent choice for both development and production phases. Physical dimensions are compact, with 9.4mm length and 6.35mm width, suitable for space-constrained electronic designs.

Typical applications include memory storage for microcontrollers, data logging, industrial automation, and automotive electronics. The robust features ensure reliability and stable performance across diverse industrial, automotive, and embedded electronics markets.

Supports a maximum clock frequency of 10MHz for fast data access. Wide operating voltage range from 2.5V to 5.5V ensures flexible integration. Rated for automotive standard AEC-Q100 for high reliability. Operating temperature range from -40°C to 85°C suitable for harsh environments.

Offers data retention of 200 years ensuring long-term reliability. Features 5mA supply current with maximum random access time of 160ns. Memory organization of 16k x 8 bits with 8 bits per word. Through-hole mount type enables easy prototyping and soldering.
