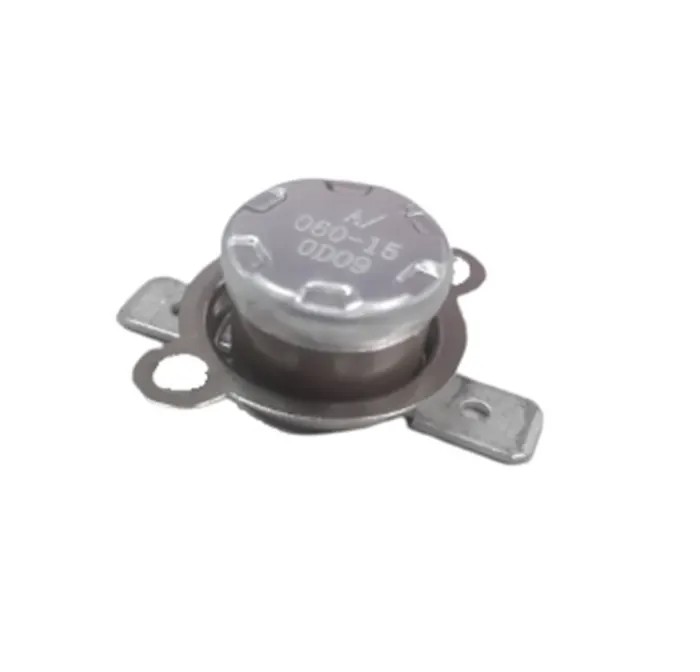

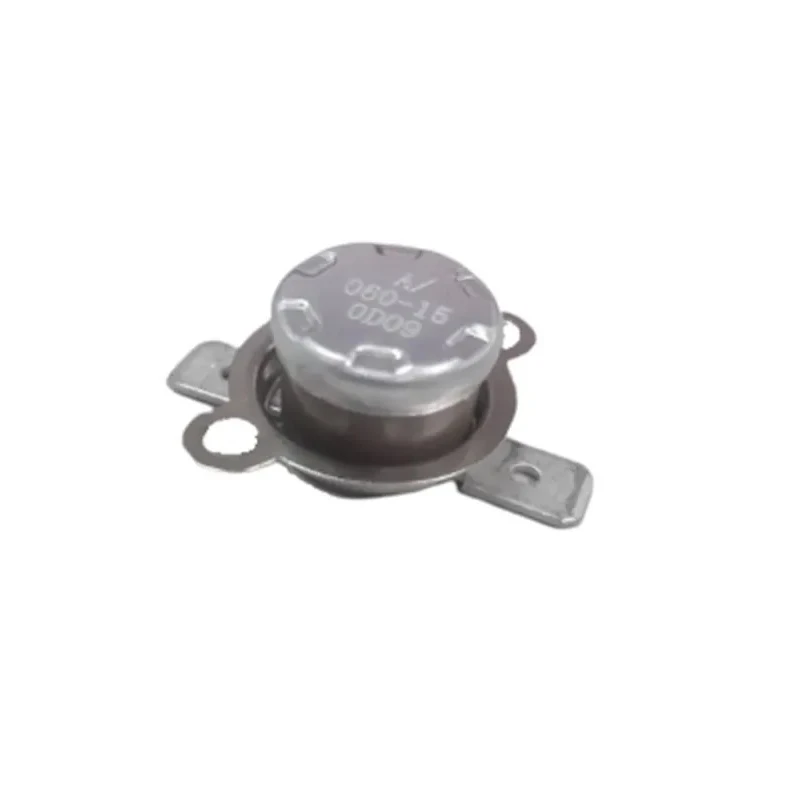

RS PRO Bi-Metallic Thermostat 0 to 80°C, Closes at 65°C, 16A, Fixed Mount 222-8230

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Bi-Metallic Thermostat 0 to 80°C, Closes at 65°C, 16A, Fixed Mount 222-8230

Name: RS PRO Bi-Metallic Thermostat 0 to 80°C, Closes at 65°C, 16A, Fixed Mount 222-8230
Brand: RS PRO
SKU: 395044
Price: 15.31 USD
Availability: InStock



Category Thermostat Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	222-8230
Mount Type	Fixed
Maximum Operating Temperature	80°C
Minimum Operating Temperature	0°C
Terminal type	Horizontal Tab
Thermostat Type	Bi-Metallic
Standards/Approvals	UL/cUL, CQC, ENEC17
Contact DC Voltage	250V dc
Contact AC Voltage	250V ac
Contact Current	16A
Reset Type	Automatic
Switch Function	NC
Closing Temperature	65°C

Key Features

Operates within a temperature range of 0 to 80 degrees Celsius.
Closes automatically at 65 degrees Celsius with automatic reset function.
Capable of handling a contact current of 16 amperes.
Features a fixed mount with horizontal tab terminals for secure installation.
Designed with a temperature-sensitive bimetallic disc providing rapid temperature response.
Suitable for use in appliances such as coffee machines, smoke detectors, and heating systems.
Meets UL/cUL, CQC, and ENEC17 standards for safety and quality.
Offers normally closed (NC) switch function for reliable operation.

Product Description

RS PRO 222-8230 is a bi-metallic thermostat designed for precise temperature control in a wide range of electrical devices. It functions by using a temperature-sensitive bimetallic disc that actuates thermally and electrically isolated contacts, which open when the temperature reaches the snap point. This model closes at 65 degrees Celsius and can operate safely up to 80 degrees Celsius, ensuring protection against overheating in sensitive equipment.

With a contact current capacity of 16 amperes and contact voltages of 250V AC and DC, this thermostat is robust enough for various industrial and commercial applications. The fixed mounting design and horizontal tab terminals facilitate easy and secure installation in multiple device configurations.

This thermostat features an automatic reset type, offering convenience and safety by restoring normal operation once the temperature falls below the threshold. The compact height of 12.4 mm makes it suitable for retrofit or new designs in appliances like coffee machines, heating systems, boilers, and smoke detectors.

Manufactured to comply with UL/cUL, CQC, and ENEC17 standards, the RS PRO 222-8230 meets rigorous quality and safety requirements. Its normally closed switch function ensures that the circuit remains closed until the specified temperature is reached, providing dependable thermal management.

This product is ideal for applications in sensing and instrumentation, HVAC, automotive, industrial equipment, as well as computer peripherals. Its rapid response time to temperature changes and compact form factor make it an essential component for managing device temperatures effectively.

Operates within 0 to 80°C temperature range. Closes at 65°C with automatic reset. Contact rating of 16A at 250V AC/DC. Fixed mounting with horizontal tab terminals. Bimetallic disc actuator for fast response. Complies with UL/cUL, CQC, ENEC17 standards.

Suitable for coffee machines, heating systems, smoke detectors. Normally closed switch function for reliable operation.

Choose RS PRO products for high quality and reliable performance in industrial and commercial thermostat applications. Browse our category for more Thermostats and temperature control devices.
