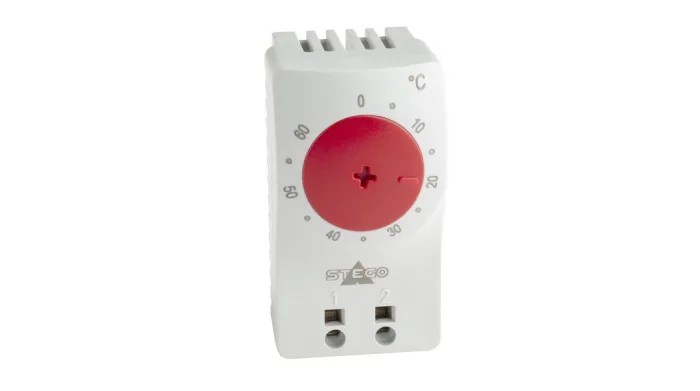

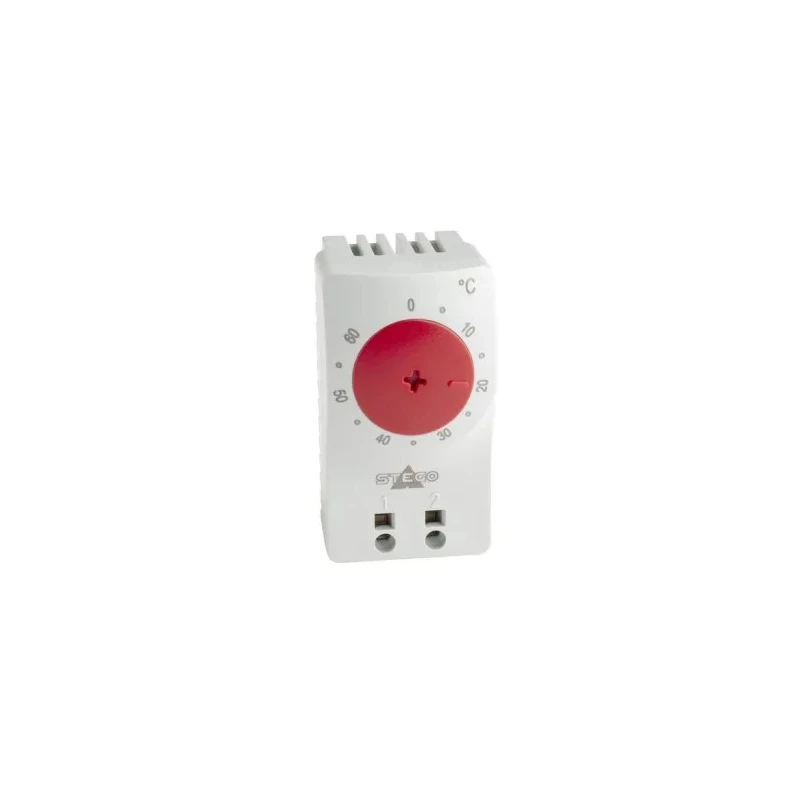

STEGO Mechanical Thermostat KT Series 10 A Contact Current 250 V Voltage, Temperature Setting Range -10 to +50 °C 11100.0-01

The STEGO 11100.0-01 mechanical thermostat from the KT Series is engineered to control temperature settings reliably across industrial and commercial environments. It supports a 10 A contact current and operates safely with contact voltage up to 250 V. This thermostat features a normally closed (NC) switch configuration specifically designed to open the contact when the temperature rises, making it an excellent choice for regulating heaters and thermal management systems.

The thermostat accommodates a broad temperature operating range, from as low as -45 °C up to a maximum of 80 °C, with an adjustable setting range of -10 to +50 °C that allows precise control tailored to specific application needs. The snap-action contact type combined with a thermostatic bimetal sensor element provides rapid and accurate temperature response.

Its Push-In terminals provide consistent pressure on wires, ensuring secure electrical connections and preventing wire loosening during operation, which enhances durability and safety. The device features a switch temperature difference of 7 K with a tolerance of ±4 K to maintain reliable temperature regulation under varying conditions.

Manufactured in Germany, the STEGO 11100.0-01 complies with multiple international standards including CE, EAC, RoHS, EN, VDE, UL, and cULus, guaranteeing high quality and safety for industrial, laboratory, HVAC, manufacturing, and water treatment applications that require consistent thermal control.

Designed for temperature regulation with mechanical switch configuration NC. Operating temperature range from -45 °C minimum to 80 °C maximum. Temperature setting adjustable between -10 to +50 °C. Equipped with snap-action contact and thermostatic bimetal sensor element.

Push-In terminals ensure secure wire connections preventing loosening. Switch temperature difference is 7 K with ±4 K tolerance for precise control. Suitable for industrial applications requiring reliable temperature management.

Constructed in Germany, conforming to CE, EAC, RoHS, EN, VDE, UL, and cULus standards. Explore more in EnvMart's electronics and electrical category for robust Thermostats and temperature management devices.
