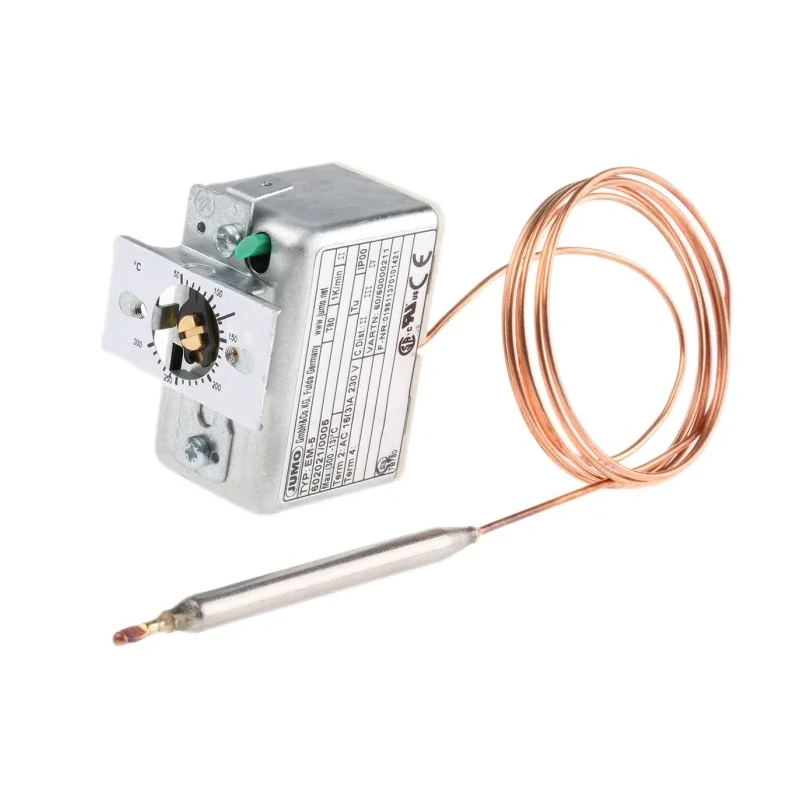

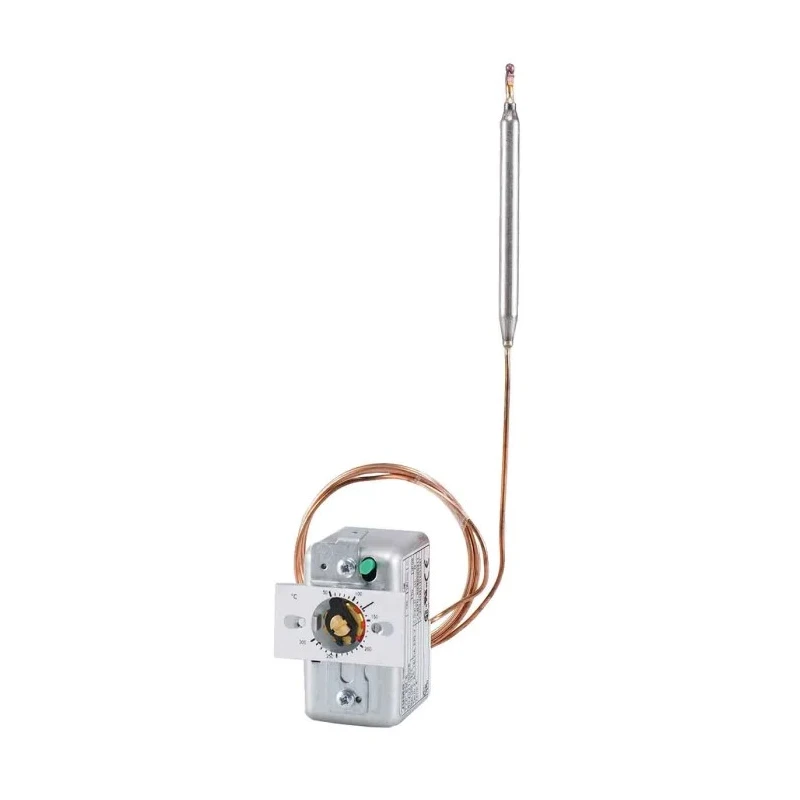

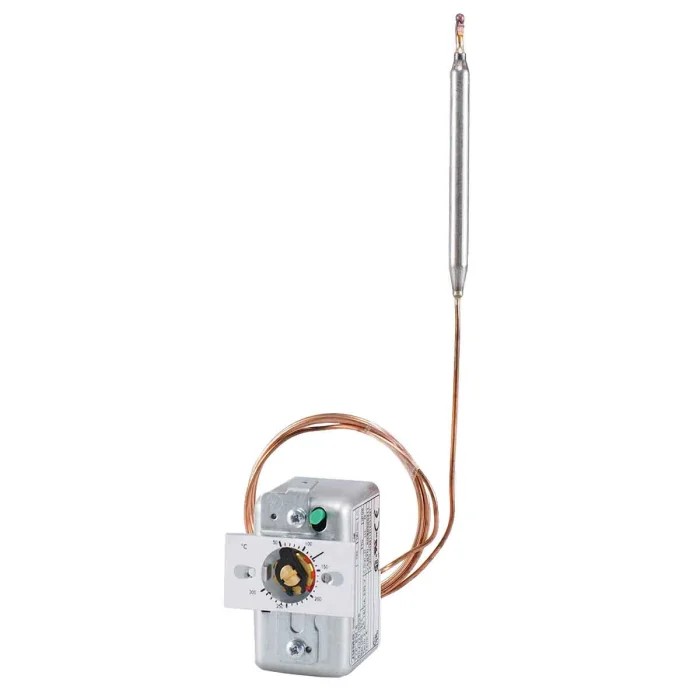

Jumo Panel Mounted Capillary Thermostat Temperature Controller Safety 602021/0005-064-000-25-1000-40-10-00-00-000-00-6

Jumo 602021/0005-064-000-25-1000-40-10-00-00-000-00-6 Panel Mounted Capillary Thermostat offers precise temperature monitoring and control, designed for industrial applications requiring safety temperature limiting and monitoring up to a maximum of +300°C.

This thermostat operates within a minimum temperature of 50°C and a maximum of +300°C. It utilizes a capillary sensing element coupled with a microswitch that responds to fluid expansion to trigger electrical switching.

Equipped with a single SPST switching contact, the switching point can be finely adjusted using a screwdriver, allowing for customized threshold settings. The unit includes an automatic reset feature to maintain continuous operation without manual reset.

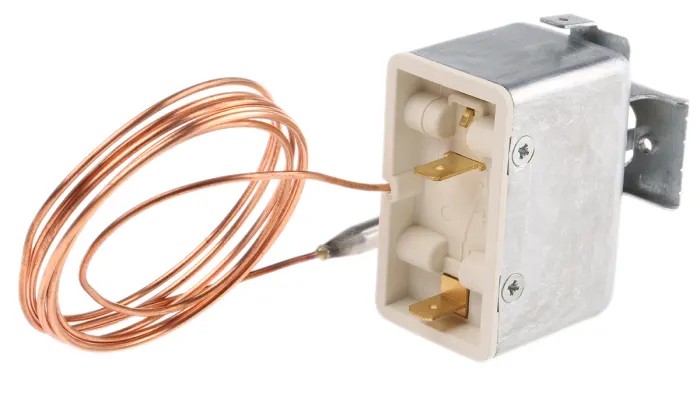

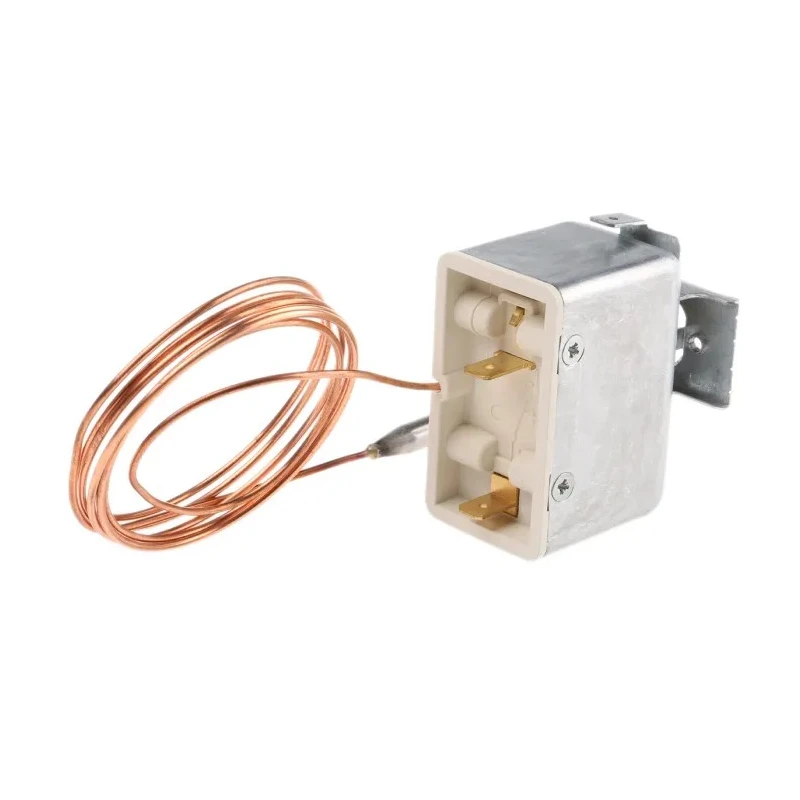

Designed for panel mounting, the thermostat features solder tab terminals for secure electrical connections. It supports both AC and DC voltages up to 230V and can handle a contact current of 20mA, making it compatible with various control circuits.

The product meets rigorous international standards, including DIN EN 14597, UL 353, UL 873, CSA C 22.2, PED 2014/68/EU, and DIN EN ISO 13849-1, ensuring compliance and reliability in demanding industrial environments.

This capillary thermostat functions effectively as a temperature controller, safety temperature limiter, and temperature monitor, essential in automated industrial, manufacturing, HVAC, and laboratory temperature safety applications.

Operates within a temperature range of 50°C to +300°C. Single-pole single-throw (SPST) switching contact. Switching point adjustable via screwdriver for precise control. Automatic reset for uninterrupted safety monitoring.

Panel mount installation with solder tab terminals. AC/DC contact voltage up to 230V and contact current of 20mA. Compliant with multiple international safety and performance standards. Designed for temperature control and safety limitation in industrial use.

Ideal for integration in electrical switchgear, heating systems, and safety control panels, this Thermostat delivers reliable temperature regulation and protection. Explore our wide range of measuring and testing instruments in the Electronics & Electricals category at EnvMart.
