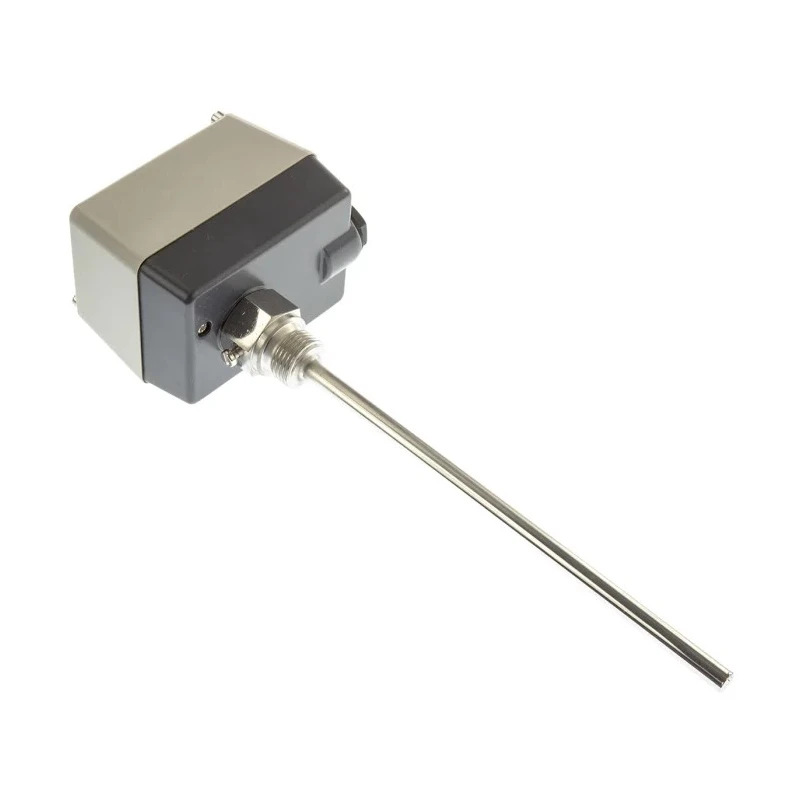

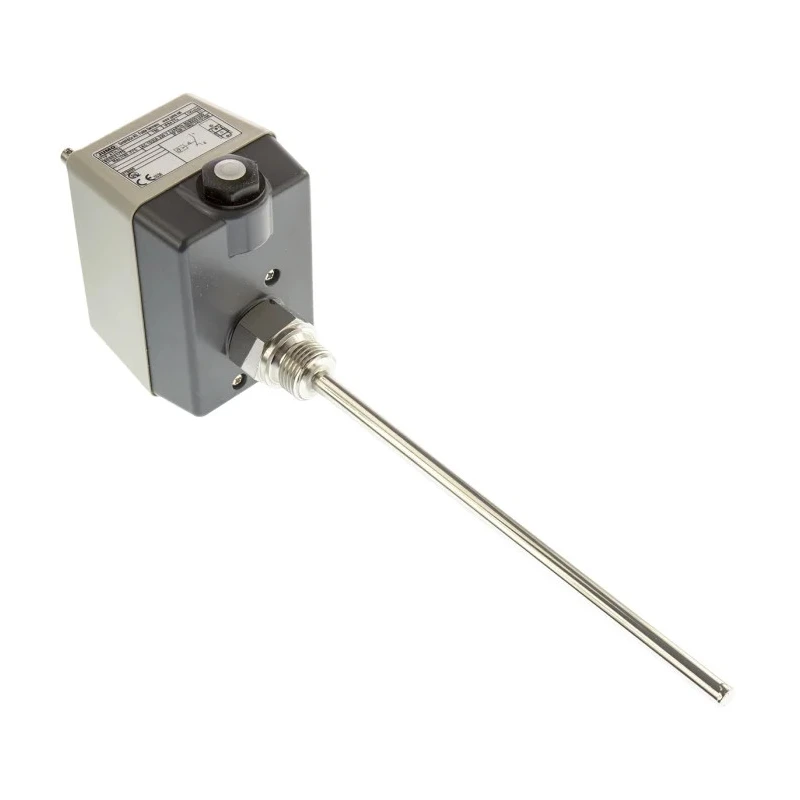

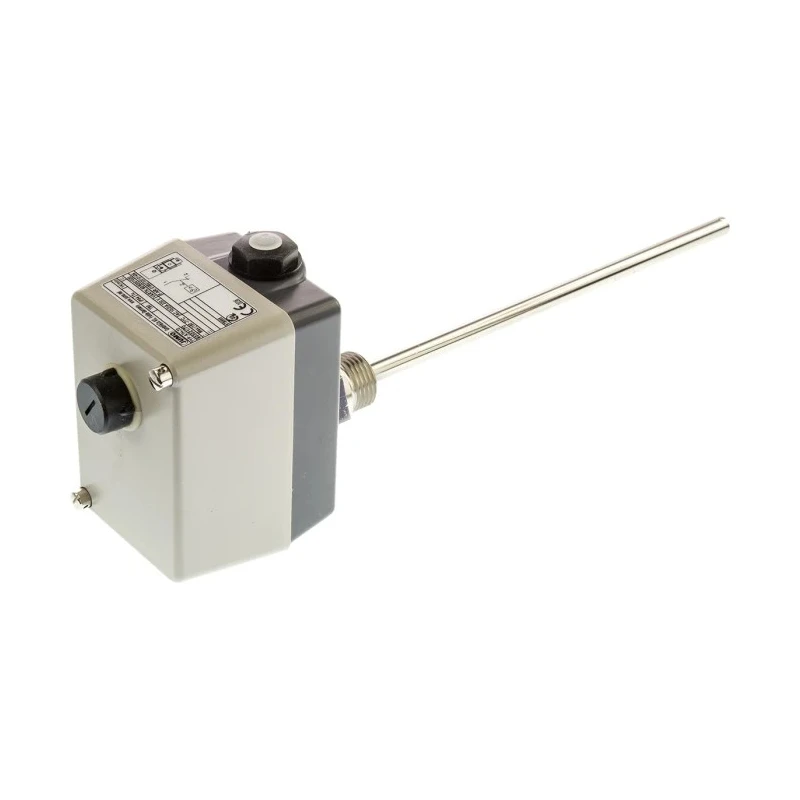

Jumo Capillary Thermostat Safety Temperature Monitor with +120°C Max Operating 603021/70-1-043-00-0-00-20-13-46-200-8-6/000

Jumo 603021/70-1-043-00-0-00-20-13-46-200-8-6/000 Capillary Thermostat is an advanced safety temperature monitoring device engineered to ensure precise control and protection against overheating. It operates effectively within temperature parameters ranging from +20°C to a maximum of +120°C, making it suitable for industrial and laboratory environments requiring stringent thermal safety measures.

This device features a capillary sensing element coupled with a mechanically locked micro switch that activates upon reaching preset temperature limits, cutting off the circuit to protect equipment. The thermostat includes one normally open (NO) and one normally closed (NC) contact configuration supporting both AC and DC voltages up to 230V, and can handle switching currents up to 10 amperes, providing dependable performance under typical load conditions.

The thermostat utilizes a manual reset mechanism ensuring that once the temperature falls below the threshold, the device can be safely reactivated after removal of the cap nut. Its surface mount design and screw terminals facilitate straightforward installation and secure electrical connections. Compliance with industry-recognized standards such as DIN EN 14597, EN 60529-IP54, and 2014/68/EU highlights its robust construction and reliability. Additionally, the product holds the EAC Approval Mark, underlining its adherence to hazardous area certification requirements.

With a process connection size of G1/2 and shaft size options of 8 x 150 mm or 8 x 200 mm, the thermostat is versatile for various applications. Manufactured in Germany, this thermostat is ideal for industrial automation, HVAC, water treatment systems, and safety-critical temperature monitoring applications where precise temperature control and safety limits are paramount.

Operates from +20°C to +120°C maximum temperature. Capillary sensing with rigid shaft options of 8 x 150 mm and 8 x 200 mm. Contact configuration: 1 NO/1 NC supporting AC/DC voltage of 230V. Maximum switching current of 10A at 250V for reliable control.

Manual reset type with mechanical lock to prevent premature reset. Surface mount installation with screw terminal connections. Certified with EAC Approval Mark; standards DIN EN 14597, EN 60529-IP54, 2014/68/EU compliant.

Process connection G1/2 suitable for industrial fitting requirements. Manufactured in Germany ensuring engineering quality and durability.

This Jumo thermostat is widely used in industrial and commercial applications requiring dependable over-temperature protection and precise monitoring, including heating systems, manufacturing processes, and safety interlocks. It guarantees user safety and system integrity through accurate temperature limit control.
