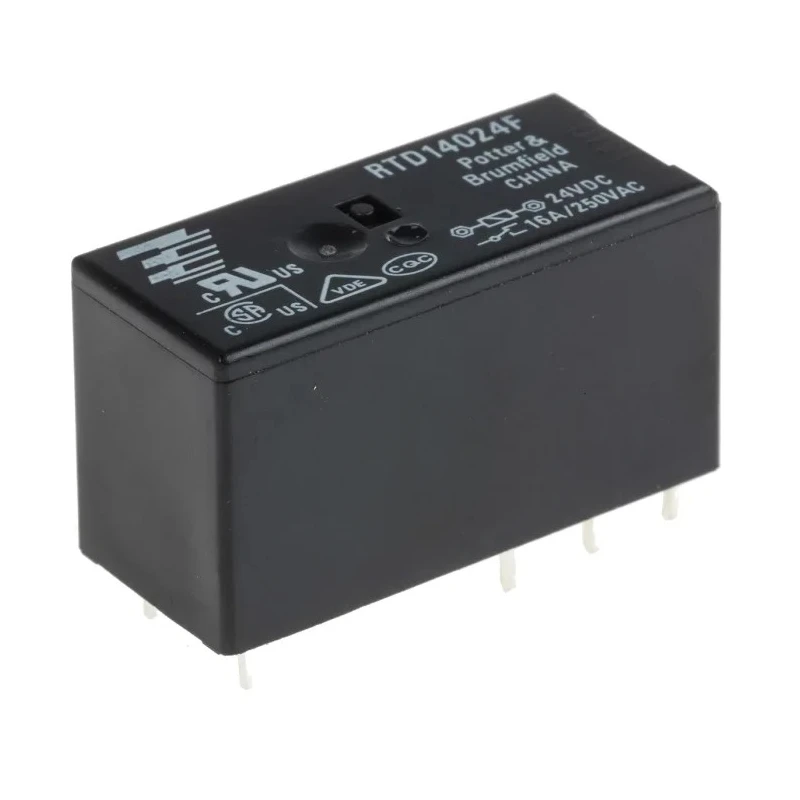

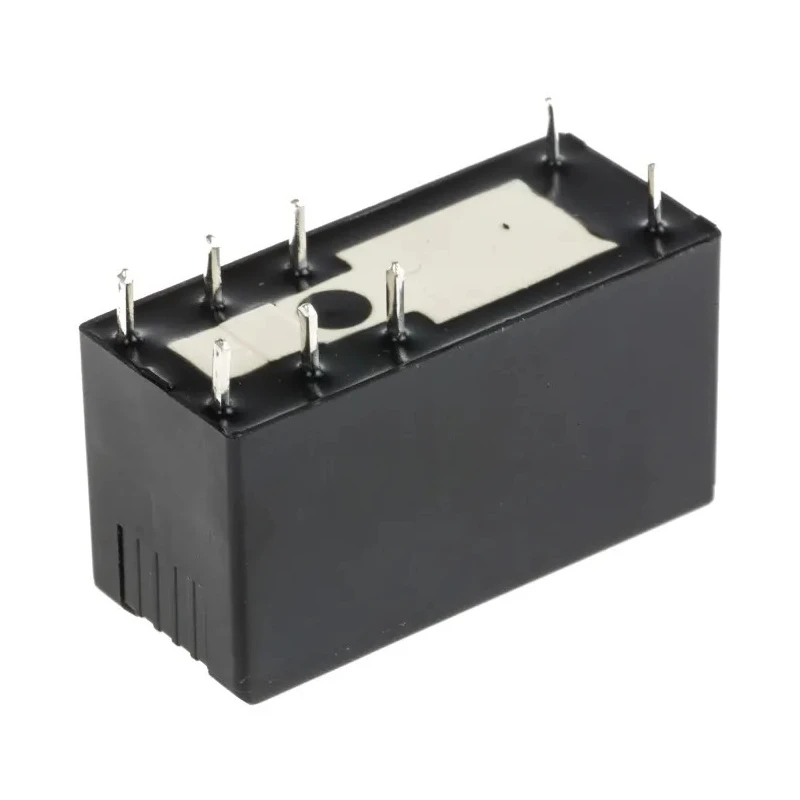

TE Connectivity PCB Power Relay 24V dc Coil 16A Switching Current SPDT RTD14024F

TE Connectivity RTD14024F is a high-quality PCB power relay designed for industrial, automation, and domestic electrical applications requiring reliable switching performance. Featuring a 24V dc coil and SPDT contact configuration, it supports a switching current of 16 amperes, making it suitable for a variety of interface and control tasks.

This relay series RT1 and RT2 includes through-hole mounts with solder terminals, designed for secure PCB assembly. The RTD variant specifically offers wash-tight 5mm pinning to ensure robust operation in demanding environments.

The relay delivers switching power up to 400mW and can handle AC voltages up to 400V. With a coil resistance of 1.4 kilo-ohms, the coil consumes 400mW power, ensuring efficient operation at 24V DC coil voltage.

Operating temperature ranges from -45°C to a maximum of 85°C, suitable for harsh industrial conditions. The contact material is a silver nickel alloy, providing reliable electrical performance and extended service life.

Its compact form factor with length 29mm, height 15.7mm, and width 12.7mm allows for efficient space utilization on printed circuit boards. The product meets stringent international standards including CSA, UL, and UR approvals, assuring quality and safety.

This power relay is designed for through-hole PCB mounting with solder terminals. Rated for a switching power of 400mW and switching voltage of up to 400V AC. The coil resistance is 1.4kΩ with a coil power consumption of 400mW.

Operates reliably within a temperature range from -45°C to 85°C. Constructed with silver nickel alloy contacts for durability and performance. Compact and space-efficient PCB mount design. Certified with CSA, UL, and UR approvals to meet industrial standards.

This relay is ideal for use in electrical, automation, security lighting, heating systems, interface circuits, and other industrial and domestic applications requiring precise and dependable relay switching.
