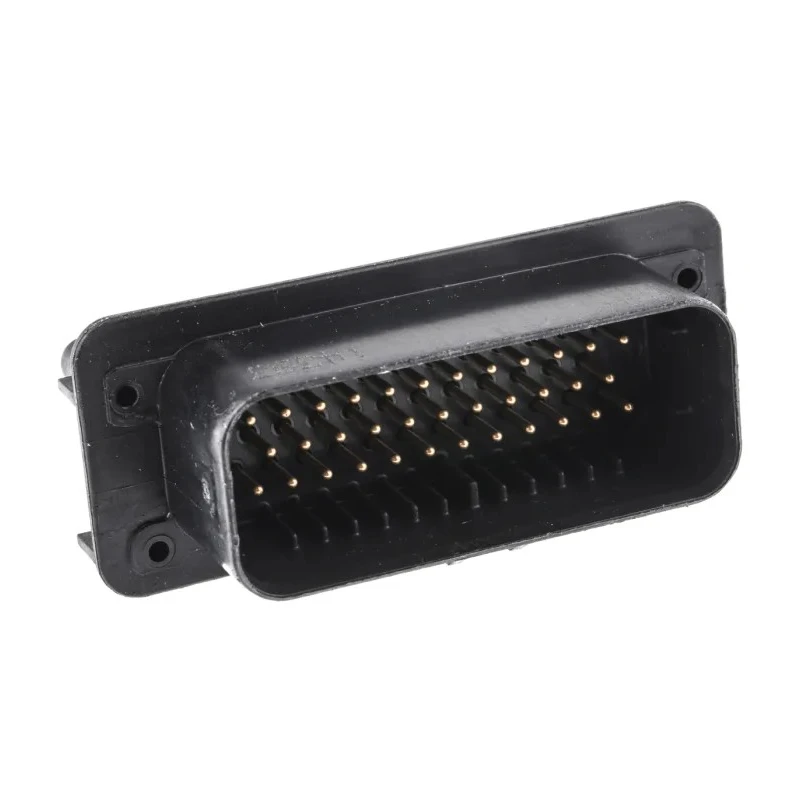

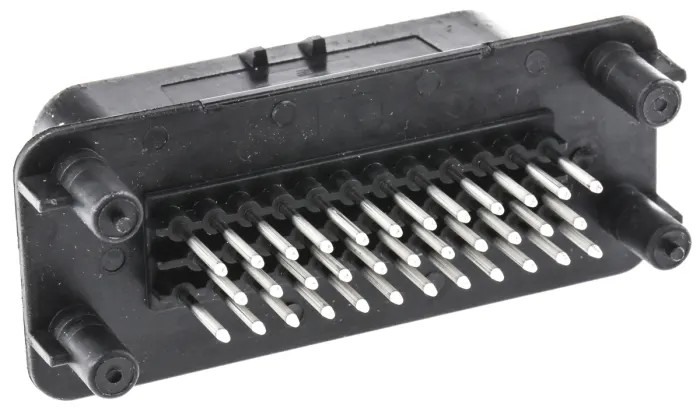

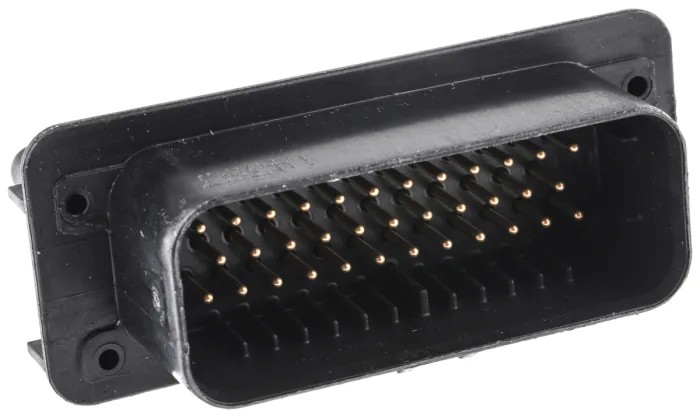

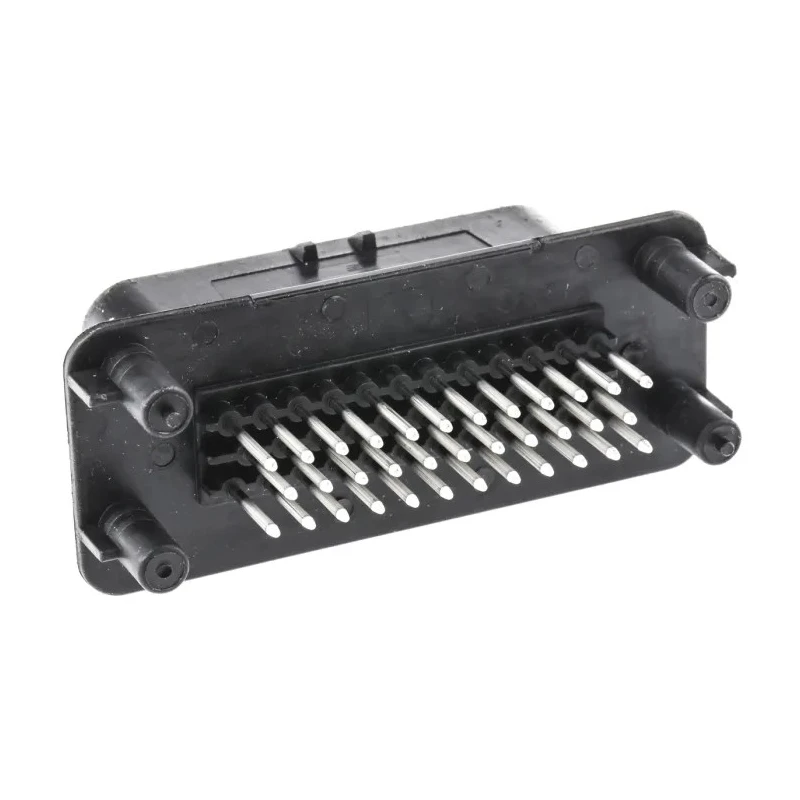

TE Connectivity Ampseal Automotive Connector Male Black Panel Mount 35 Way Solder Termination 1-776230-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 17A |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 76.9mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 35 |
Key Features
- Designed for panel mount installation with a 3-row layout.
- Utilizes solder type termination for secure connections.
- Rated for 17A operating current with IP6K9K ingress protection rating.
- Constructed using fibreglass reinforced polybutylene terephthalate housing.
- Gold plated brass contacts ensure high conductivity and corrosion resistance.
- Operates reliably between -40°C and 125°C temperature range.
- Complies with Ampseal series specifications for automotive connectors.
Product Description
TE Connectivity 1-776230-1 is a male automotive connector from the Ampseal series, featuring 35 solder termination contacts. It is designed for rugged automotive use as a panel mount connector, delivering reliable electrical connection for automotive and industrial applications.
The connector is manufactured with a fibreglass reinforced polybutylene terephthalate housing that provides strong mechanical stability and durability under harsh environmental conditions. Gold-plated brass contacts ensure excellent conductivity and resistance to corrosion, vital for automotive electrical systems.
Rated at 17 amperes of current and featuring an ingress protection rating of IP6K9K, this connector is well suited to withstand dust, water jets, and aggressive environments. The operating temperature range of -40°C to 125°C makes it compatible with extreme automotive operating conditions.
Physical dimensions include a width of 76.9mm, depth of 34.3mm, and height of 32.1mm. Its 3-row configuration accommodates 35 contacts, facilitating complex circuit connections. The panel mount design allows for secure integration into enclosures or control panels.
Designed for panel mount installation with a 3-row layout. Utilizes solder type termination for secure connections. Rated for 17A operating current with IP6K9K ingress protection rating. Constructed using fibreglass reinforced polybutylene terephthalate housing.
Gold plated brass contacts ensure high conductivity and corrosion resistance. Operates reliably between -40°C and 125°C temperature range. Dimensions are 76.9mm width, 34.3mm depth, and 32.1mm height. Complies with Ampseal series specifications for automotive connectors.
This connector is ideal for automotive electrical systems requiring robust, high-integrity connections, suitable also for industrial and commercial applications involving harsh environments.
Explore other Automotive Connectors and related products in the EnvMart Electronics & Electricals category to find the perfect component for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector is rated for 17A operating current.
It has an IP6K9K ingress protection rating, making it resistant to dust and water jets.
The connector operates reliably between -40°C and 125°C.
It features a fibreglass reinforced polybutylene terephthalate housing and gold-plated brass contacts.
This model has 35 solder termination contacts arranged in a 3-row layout.
The dimensions are 76.9mm in width, 34.3mm in depth, and 32.1mm in height.
It utilizes solder type termination for secure connections.
Yes, it is designed for rugged automotive use and can withstand harsh environmental conditions due to its robust construction.
The connector is black in color.
This connector is part of the Ampseal series, designed for automotive applications.
This model is a male connector.
The country of origin for this connector is India.
