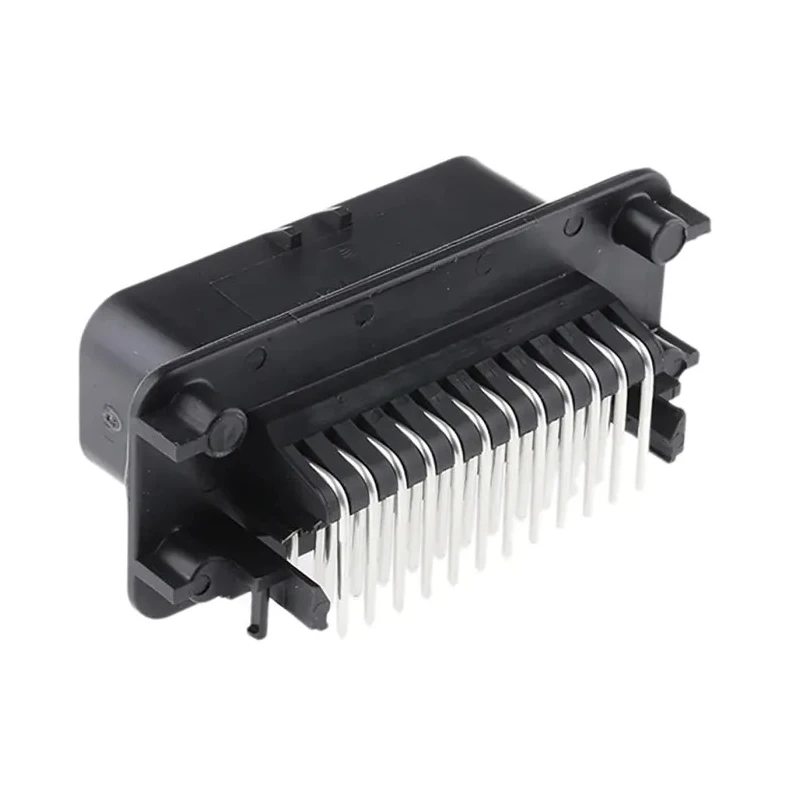

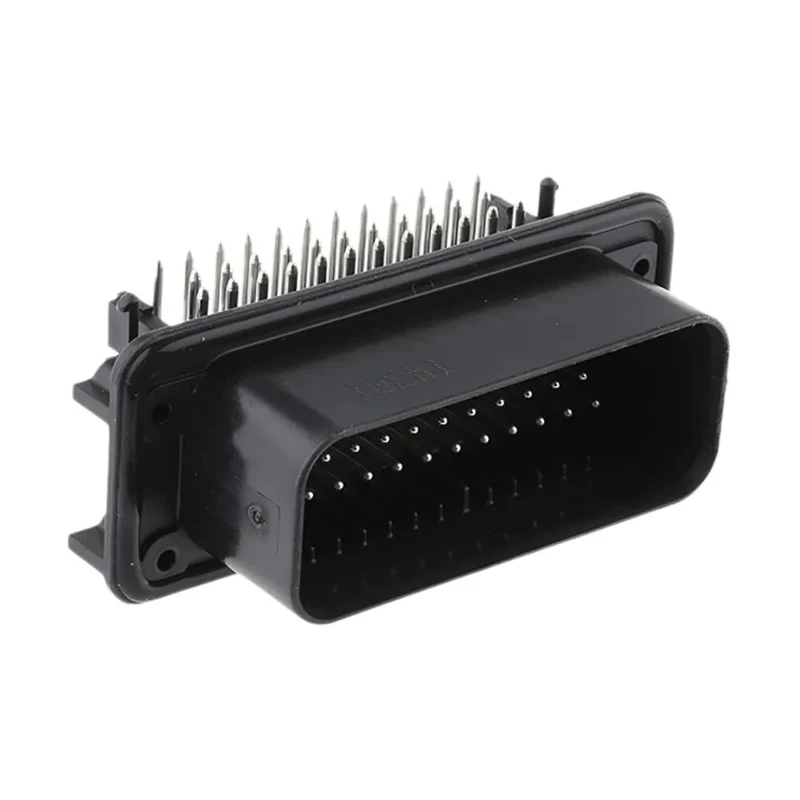

TE Connectivity Ampseal Automotive Connector Male 35 Way Black Panel Mount Solder Termination 776163-1

TE Connectivity 776163-1 Ampseal Automotive Connector Male is a rugged 35-contact panel mount connector designed for automotive and industrial applications where reliability and environmental protection are critical. Featuring a durable thermoplastic housing and brass contacts with tin plating, this connector offers superior performance in harsh conditions with operating temperatures from -40°C to 105°C.

The solder termination ensures secure wiring connections, while the 3-row configuration supports complex multi-pin setups. The connector's IP6K9K rating guarantees resistance to dust ingress and high-pressure, high-temperature water jets, making it ideal for automotive uses such as trucks, buses, and construction vehicles, as well as off-road and emergency service equipment.

Besides meeting stringent IP67 sealing standards when mated, the connector also provides excellent insulation resistance and voltage rating (250 VAC), assuring electrical safety and robustness. Its compact form factor with 76.9 mm width, 37.9 mm depth, and 32.1 mm height enables integration into various panel setups without compromising space.

TE Connectivity's Ampseal series is known for exceptional vibration and shock resistance, making this connector suitable for environments with high mechanical stress. The black coloring aligns with common automotive aesthetic and safety standards.

Features 35 contacts arranged in 3 rows ensuring reliable multi-pin connections. Constructed with thermoplastic housing and brass contacts plated with tin for durability. Rated for panel mount installation with solder termination for secure wiring.

Operates across a temperature range of -40°C to 105°C, suitable for harsh environments. Rated IP6K9K for excellent protection against dust and high-pressure water jets. Superior resistance to vibration and shock, ideal for automotive and off-road use.

Supports an insulation resistance minimum of 100 megaohms and voltage rating of 250 Volts AC. Designed to meet IP67 rating for mated connectors, ensuring environmental sealing and protection. Compact dimensions: 76.9mm width, 37.9mm depth, and 32.1mm height for easy integration.

Black color provides compliance with automotive industrial design standards.

This connector is optimal for demanding environments in automotive, off-road, agricultural, marine, and emergency service applications. Its durability and reliable electrical connections contribute to long-term system integrity.
