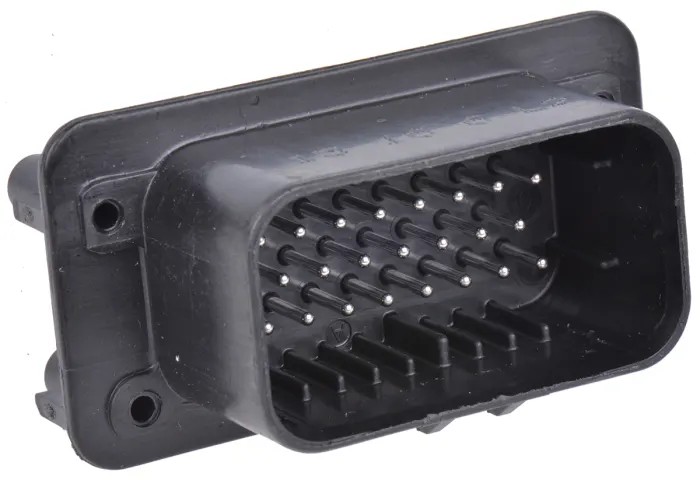

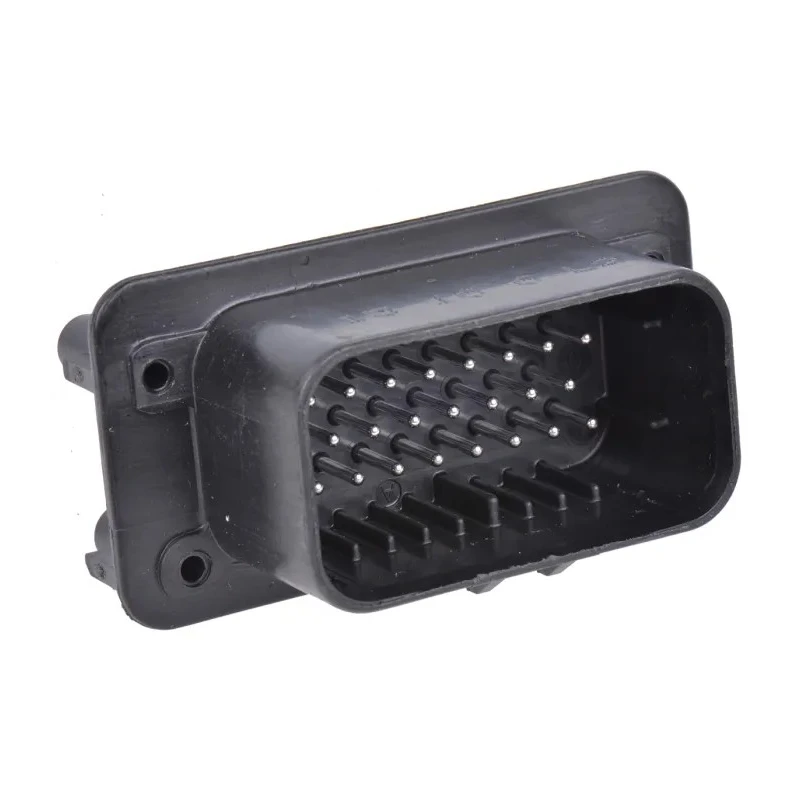

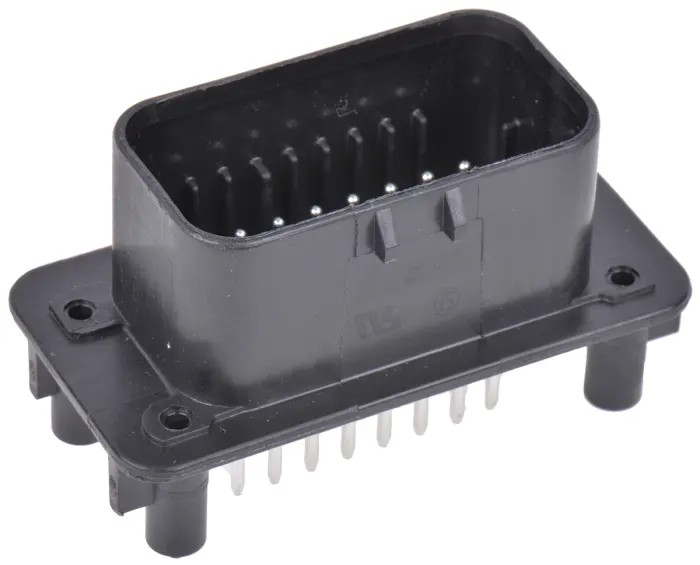

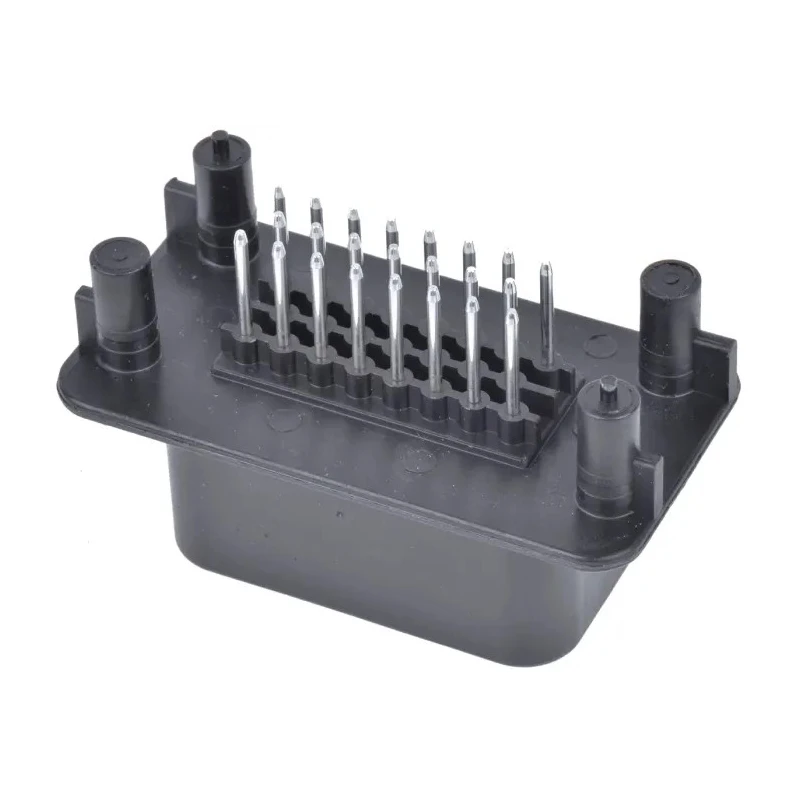

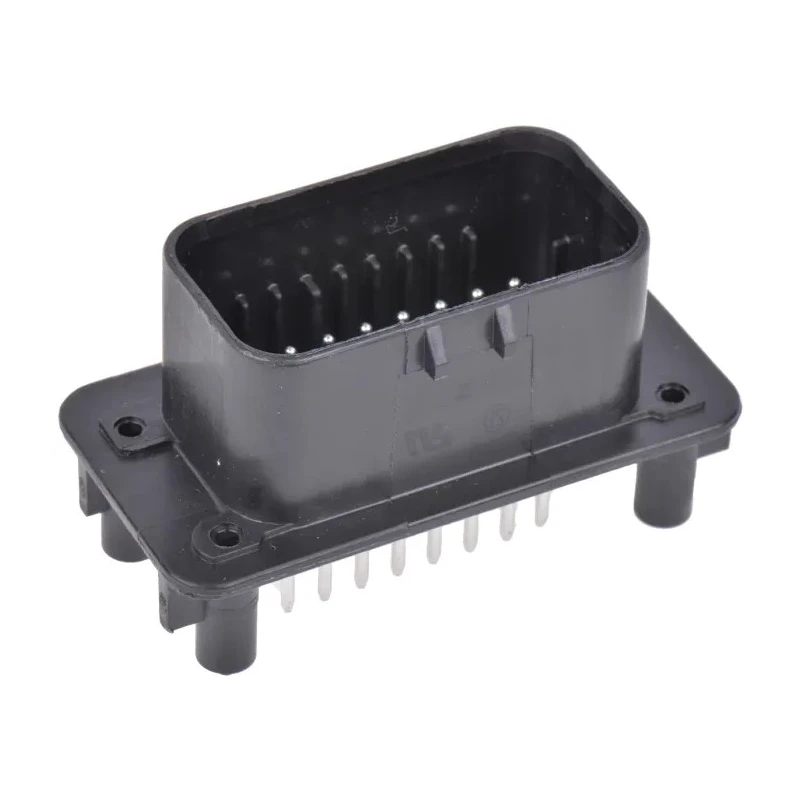

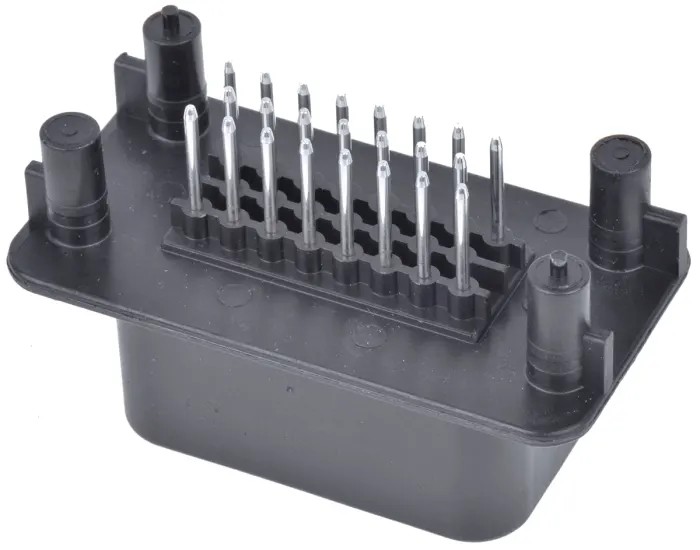

TE Connectivity Ampseal Automotive Connector Male Black Panel Mount 23 Way Solder Termination 776200-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 13A |
| Height | 32.1mm |
| Model | 776200-1 |
| Depth | 34.25mm |
| IP Rating | IP6K9K |
| Width | 60.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Tin |
| Number of Contacts | 23 |
Key Features
- Designed with 23 contacts ensuring secure electrical connection.
- Panel mount type with a three-row configuration for compact installation.
- Supports a maximum current rating of 13A for reliable performance.
- Constructed from fibreglass reinforced polybutylene terephthalate housing with brass contacts plated in tin.
- Operates within a temperature range of -40°C to 105°C suitable for harsh environments.
- Rated IP6K9K offering excellent protection against dust and high-pressure water jets.
- Colour coded black with solder termination for solid conductor attachment.
- The Ampseal series connector ensures durable automotive-grade connection integrity.
Product Description
TE Connectivity 776200-1 is a high-quality automotive connector specifically designed for panel mounting in automotive and industrial applications. This male connector features 23 contacts arranged in three rows, offering a reliable solder termination.
The body is made of fibreglass reinforced polybutylene terephthalate, providing exceptional mechanical strength and chemical resistance. Brass contacts with tin plating offer excellent conductivity and corrosion protection.
With a current rating of 13A, this connector supports medium power automotive circuits and is rated IP6K9K, ensuring resistance to dust ingress and high-pressure water jets making it suitable for harsh environments.
The operating temperature range from -40°C to 105°C ensures performance stability in extreme climatic conditions often encountered in automotive and industrial settings.
This connector’s panel mount design simplifies integration in vehicle control units and electrical assemblies. It is part of the Ampseal series which is known for keyed connections and secure mating to prevent misconnection.
23 contacts for multi-signal capability. Panel mount with three-row layout optimized for space saving. 13A current rating suitable for automotive power circuits. Robust housing and contact materials for durability. Wide temperature and ingress protection rating for challenging conditions.
Widely used in automotive electronics, manufacturing equipment, and other electrical control systems requiring a dependable connector. Available in black color, allowing easy identification and matching with system components.
Explore the full range of Automotive Connectors at EnvMart for seamless integration into your electronic assemblies and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current rating of 13A, making it suitable for medium power automotive circuits.
It operates within a temperature range of -40°C to 105°C, ensuring performance stability in extreme conditions.
This automotive connector features 23 contacts arranged in a three-row configuration.
The housing is made of fibreglass reinforced polybutylene terephthalate, and the contacts are brass plated in tin for conductivity and corrosion protection.
It is rated IP6K9K, providing excellent protection against dust and high-pressure water jets.
This model uses solder termination for solid conductor attachment, ensuring a secure connection.
The connector has a height of 32.1mm, a width of 60.8mm, and a depth of 34.25mm.
Yes, it is designed to operate in harsh environments due to its wide temperature range and IP6K9K rating.
This connector is designed for panel mounting, simplifying integration into vehicle control units and electrical assemblies.
It belongs to the Ampseal series, known for its keyed connections and secure mating to prevent misconnection.
It is widely used in automotive electronics, manufacturing equipment, and other electrical control systems requiring a dependable connector.
This connector is a male type, designed to ensure secure connections with compatible female connectors.
