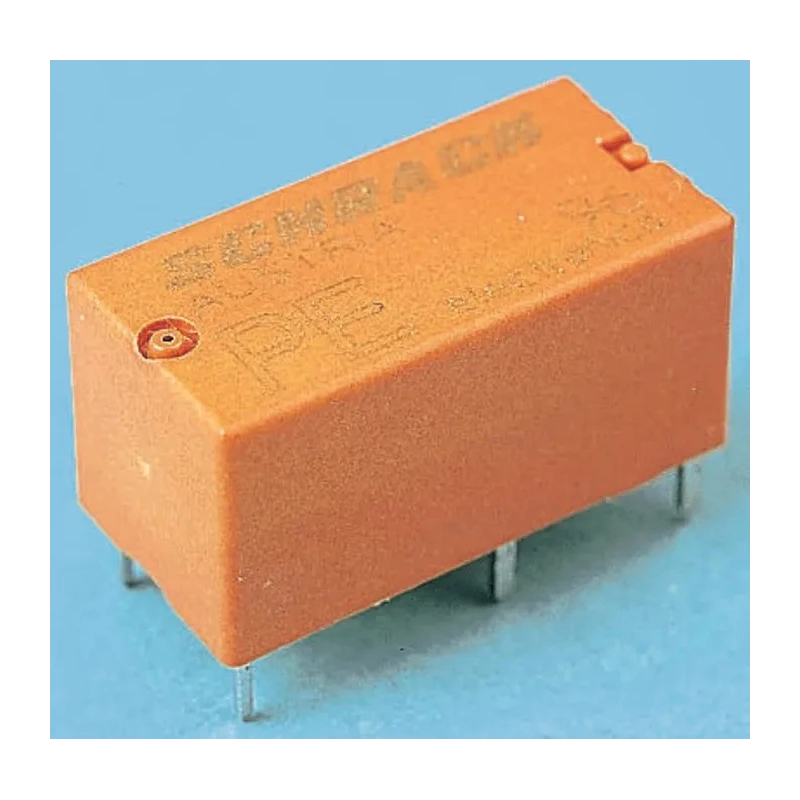

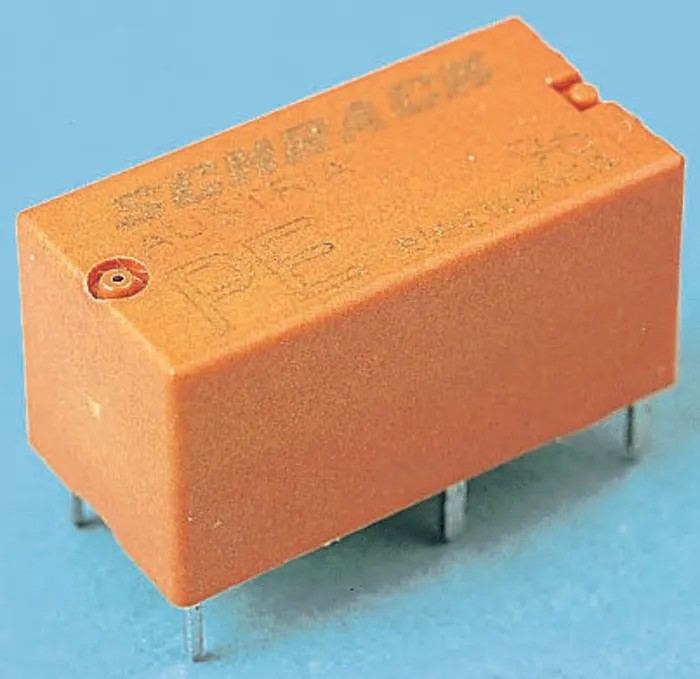

TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current SPDT 2-1393219-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS, REACH, IEC |
| Coil Resistance | 685Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
| High Coil sensitivity | 200mW |
Key Features
- Features a Single Pole Double Throw (SPDT) contact configuration.
- Coil voltage specification of 12V DC ensuring compatibility with PCB mount designs.
- Rated switching current of 5A with a switching power of 1.25kVA.
- Constructed with silver alloy contact material for reliable conductivity.
- Compact dimensions of 20mm length, 10mm width, and 10mm height fit small PCB footprints.
- Low coil power consumption at 200mW supports energy-efficient operation.
- Operating temperature range from -40°C to +85°C for harsh environments.
- Compliant with UL, RoHS, REACH, and IEC standards ensuring quality and safety.
Product Description
TE Connectivity 2-1393219-0 PCB Power Relay is a high-quality power relay designed for precise electronic switching applications. Featuring a 12V DC coil and SPDT contact configuration, this relay supports a switching current of up to 5A, making it suitable for industrial automation, household appliances, and control equipment.
The relay body measures 20mm in length, 10mm in height, and 10mm in width, enabling easy integration into printed circuit boards. Its coil resistance is 685Ω, drawing only 200mW coil power which ensures efficient energy usage. The silver alloy contact material provides excellent conductivity and durability over long-term use.
Designed to operate reliably across a wide temperature range from -40°C to +85°C, this relay is suitable for challenging environments and demanding industrial conditions. It complies with multiple industry standards including UL, RoHS, REACH, and IEC, guaranteeing an environmentally friendly and safe product.
The PE series relay comes with PCB mounting and solder-type terminals, simplifying installation in electronic assemblies. Creepage and clearance distances meet safety requirements with ≥4 mm and ≥3.2 mm respectively. The switching AC voltage rating is 400V, with AC switching voltage up to 250Vac.
This PCB power relay is an essential component for applications requiring high coil sensitivity and dependable performance. It is packaged ready for machine insertion, improving production efficiency in manufacturing environments.
Features a Single Pole Double Throw (SPDT) contact configuration. Coil voltage specification of 12V DC ensuring compatibility with PCB mount designs. Rated switching current of 5A with a switching power of 1.25kVA. Constructed with silver alloy contact material for reliable conductivity.
Compact dimensions of 20mm length, 10mm width, and 10mm height fit small PCB footprints. Low coil power consumption at 200mW supports energy-efficient operation. Operating temperature range from -40°C to +85°C for harsh environments.
Compliant with UL, RoHS, REACH, and IEC standards ensuring quality and safety.
Ideal for industrial, laboratory, manufacturing, HVAC, and electronic control applications, the TE Connectivity 2-1393219-0 PCB Power Relay offers robust switching performance combined with longevity and efficiency. Browse the Power Relay category at EnvMart for additional technical products and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a rated switching current of 5A, making it suitable for various electronic applications.
This model operates with a coil voltage of 12V DC, ensuring compatibility with PCB mount designs.
The relay measures 20mm in length, 10mm in width, and 10mm in height, allowing for easy integration into small PCB footprints.
It operates reliably across a temperature range of -40°C to +85°C, suitable for harsh environments.
This model features a Single Pole Double Throw (SPDT) contact configuration for versatile switching capabilities.
The coil power consumption is low at 200mW, supporting energy-efficient operation.
The contacts are constructed from silver alloy, providing reliable conductivity.
It complies with UL, RoHS, REACH, and IEC standards, ensuring quality and safety in its applications.
The relay supports a switching power of 1.25kVA, making it suitable for various control applications.
This model features solder-type terminals, which facilitate easy installation on PCBs.
The relay has a maximum AC switching voltage rating of 400V, allowing for diverse application scenarios.
This relay is part of the PE series, known for its reliable performance in electronic switching applications.
