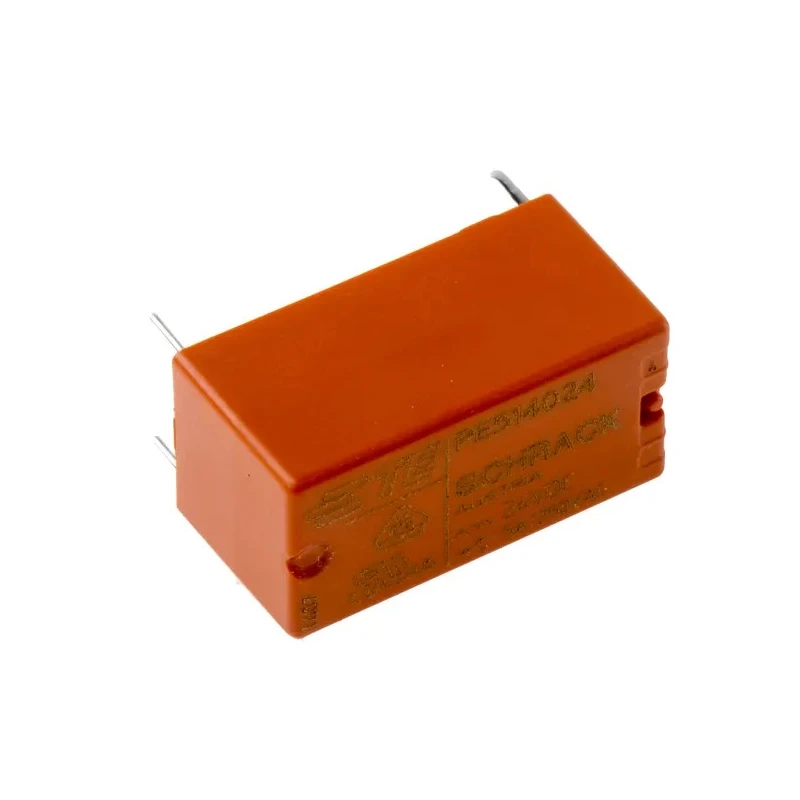

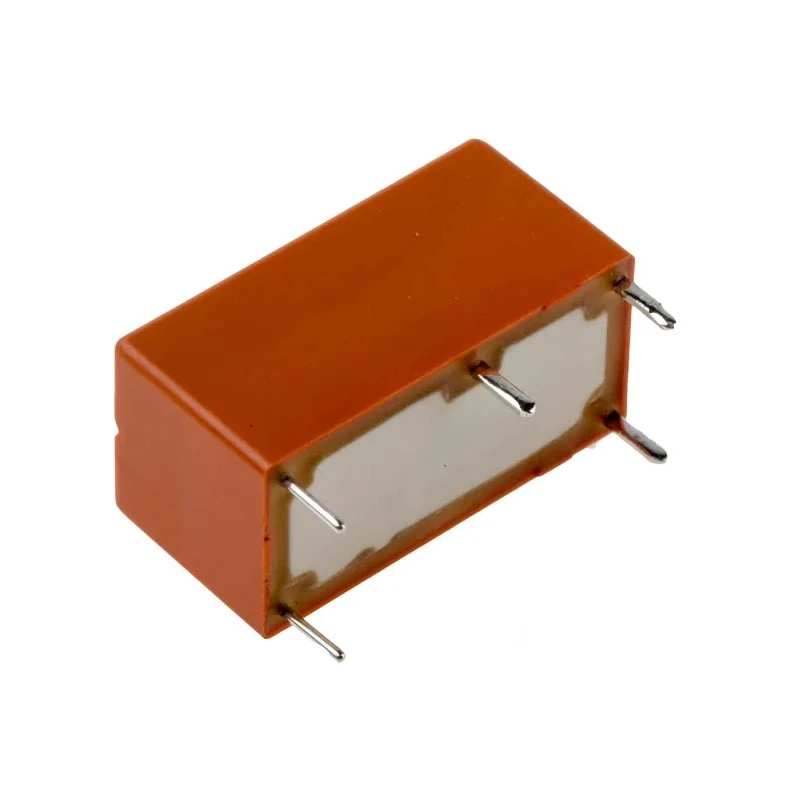

TE Connectivity PCB Power Relay 24V DC Coil 5A Switching Current SPDT 2-1393219-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS, REACH, IEC |
| Coil Resistance | 2.7kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 211mW |
| High Coil sensitivity | 200mW |
Key Features
- Operates with a coil voltage of 24V DC for efficient control.
- SPDT contact configuration providing reliable switching capability.
- Switching current rated at 5A ensuring robust performance.
- Compact dimensions measuring 20mm length, 10mm width, and 10mm height.
- High coil sensitivity with low coil power consumption of 211mW.
- Suitable operating temperature range from -40°C to 85°C for harsh environments.
- Silver alloy contact material for enhanced durability and conductivity.
- Complies with industry standards including UL, RoHS, REACH, and IEC.
Product Description
TE Connectivity 2-1393219-2 is a PCB Power Relay designed for industrial and electronic applications requiring precise and reliable switching.
This relay operates at a 24V DC coil voltage and supports a 5A switching current with a single-pole double-throw (SPDT) contact configuration, offering versatile control in automation and control systems.
The compact relay measures 20mm in length, 10mm in width, and 10mm in height, making it suitable for densely populated circuit boards. It features a high coil sensitivity with coil power of just 211mW, reducing energy consumption.
Its operating temperature range from -40°C to 85°C ensures dependable operation under extreme environmental conditions. The silver alloy contacts provide low contact resistance and high reliability for switching voltages up to 400V AC and switching power of 1.25 kVA.
Mounting is designed for PCB with solder terminals facilitating straightforward installation into printed circuit boards. The relay complies with international standards including UL, RoHS, REACH, and IEC, underscoring its quality and environmental compliance.
This power relay is typically employed in industrial electronics, household appliances, HVAC control systems, and various automation equipment requiring compact, energy-efficient, and durable switching components.
Operates with a coil voltage of 24V DC for efficient control. SPDT contact configuration providing reliable switching capability. Switching current rated at 5A ensuring robust performance. Compact dimensions measuring 20mm length, 10mm width, and 10mm height.
High coil sensitivity with low coil power consumption of 211mW. Suitable operating temperature range from -40°C to 85°C for harsh environments. Silver alloy contact material for enhanced durability and conductivity. Complies with industry standards including UL, RoHS, REACH, and IEC.
PCB mount type with solder terminals for secure installation. Explore more Power Relays and related electronic components at EnvMart for comprehensive solutions in electronic and electrical manufacturing sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It has a switching current rated at 5A, ensuring robust performance in various applications.
The relay measures 20mm in length, 10mm in width, and 10mm in height, making it compact for PCB applications.
This relay features a single-pole double-throw (SPDT) contact configuration, providing versatile control.
It operates effectively in a temperature range from -40°C to 85°C, suitable for harsh environments.
The coil power consumption is low at 211mW, which contributes to its energy efficiency.
The contacts are made from silver alloy, enhancing durability and conductivity.
It complies with several industry standards including UL, RoHS, REACH, and IEC.
This model is designed for PCB mounting with solder terminals for secure installation.
The relay can switch AC voltages up to 400V, making it suitable for various applications.
The coil resistance is 2.7kΩ, which is essential for its operation.
This power relay is commonly employed in industrial electronics, household appliances, HVAC control systems, and automation equipment.
