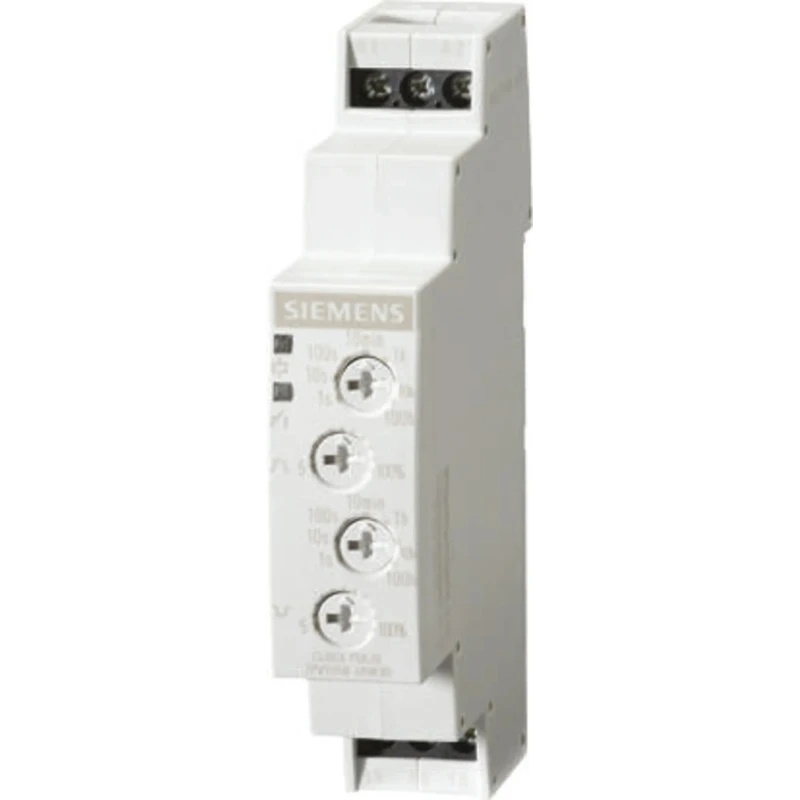

Siemens 7PV15 Series DIN Rail Multifunction Timer Relay, 1-Contact, 12 V dc 240V ac, 3 to 100 min, 5 to 100 h 7PV1558-1AW30

Siemens 7PV1558-1AW30 is a multifunction timer relay engineered for precise timing control in industrial, automation, electrical, and manufacturing applications. Designed for easy DIN Rail mounting, it offers a wide range of configurable timing settings from 0.05 seconds to 100 hours, covering seconds, minutes, and hours scale adjustments.

This model features a single SPDT contact configuration with a maximum switching voltage of 300V and contact current rating of 3A, ensuring reliable operation in demanding electrical circuits. The unit operates on dual voltage supplies of 12 V DC and 240 V AC, suitable for various control panel environments.

With a robust construction complying with RoHS standards, it ensures safe and environmentally responsible use. Its compact dimensions - 90.5 mm height, 90 mm length, and 17.5 mm width - allow installation in confined spaces without sacrificing performance.

The temperature range of -25°C to 55°C ensures reliable performance under diverse environmental conditions. The screw terminal connections offer easy and secure wiring, enhancing installation efficiency. Its IP20 rating offers basic protection against solid objects.

This timer relay is an ideal choice for automation engineers and industrial system integrators requiring versatile timers capable of multiple timing functions with high repeat accuracy and integrated overvoltage protection. Its slim design and LED status display aid in diagnostics and monitoring during operation.

Designed for DIN Rail mounting for easy integration. Function includes multifunction timer operations. Time ranges adjustable from 0.05 seconds up to 100 hours. Supports 1 contact with SPDT configuration. Operating voltage supports 12 V DC and 240 V AC.

Switching voltage capacity up to 300V. Compact slim design with dimensions 90.5mm height, 90mm length, 17.5mm width. Operates reliably between -25°C and 55°C ambient temperatures. Equipped with screw terminal type for stable electrical connections.

Rated for 3A contact current with IP20 protection rating.

Application areas include industrial automation, monitoring systems, control panels, electrical distribution, manufacturing processes, HVAC controls, and other automation tasks requiring precise timing control. Siemens timer relays are designed to optimize control accuracy and system reliability.
