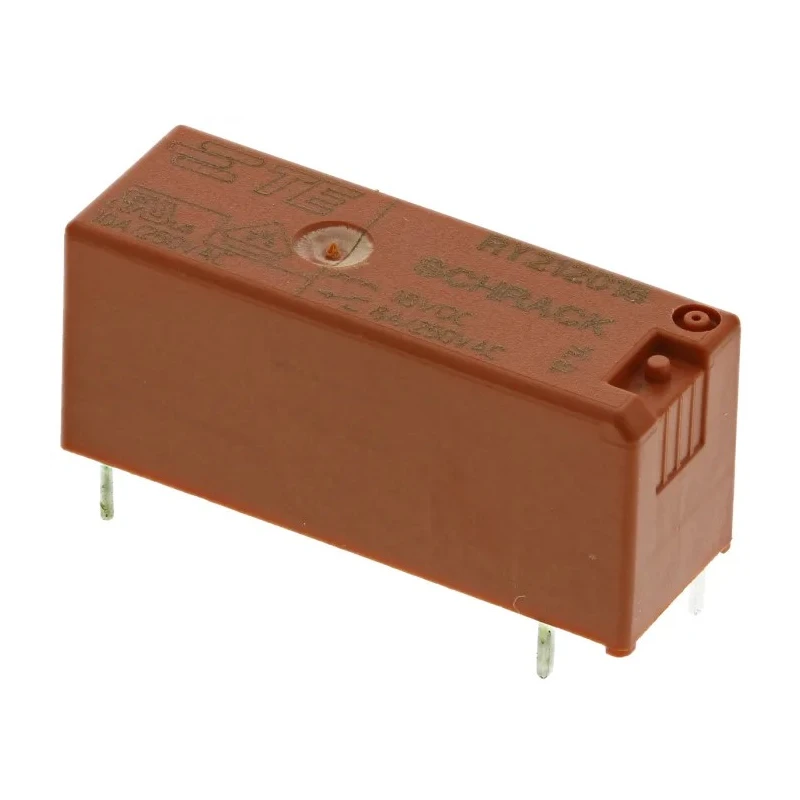

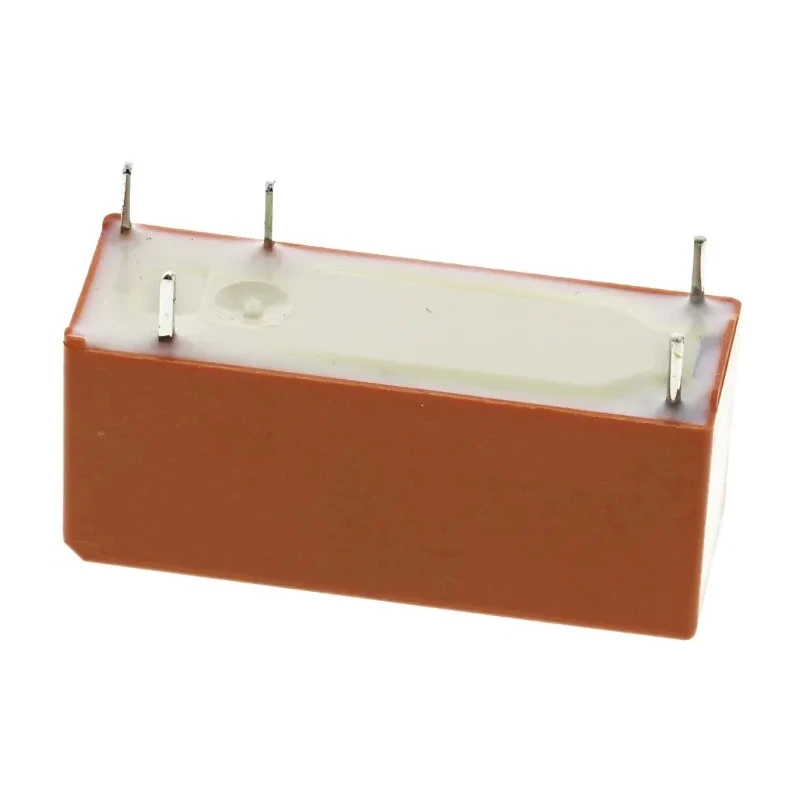

TE Connectivity PCB Power Relay 18V DC Coil 8A Switching Current SPDT RY212018

TE Connectivity RY212018 is a high-quality PCB Power Relay operating with an 18V DC coil voltage, capable of switching currents up to 8A in a SPDT contact configuration. This relay is designed primarily for printed circuit board mounting with soldered terminals, making it suitable for compact and efficient electronic assemblies.

It is constructed with gold-plated contacts to ensure superior conductivity and reliability across its service life. The relay can handle a switching AC voltage of up to 400V AC and is rated for continuous operating temperatures from -40°C to 70°C, enabling robust performance in demanding industrial and commercial electrical applications.

Its coil resistance of 1.3kΩ and coil power of 250mW make it energy-efficient, while the compact dimensions (length 28.5mm, width 10.1mm, height 12.3mm) facilitate integration into diverse electronic designs requiring power relay functionality.

The RY Series relay offers 3.2mm pinning with 8mm creepage and clearance distances for safety and compliance with stringent industry standards, including IEC 60335-1, RoHS, and VDE. UL and CSA approvals further validate its quality and safety credentials.

The relay is intended for use in industrial automation, electrical control systems, HVAC equipment, manufacturing machinery, and other applications requiring reliable power switching.

Its compact size and robust design make it ideal for dense PCB layouts and high-performance switching needs. The product supports efficient power management with low coil consumption and high switching capability. Recommended for integration where PCB-mounted power relays with SPDT contact arrangements are essential.

Package typically supplied in a tube for ease of handling and automated insertion into assembly lines.

This TE Connectivity RY212018 Power Relay exemplifies high reliability and quality suitable for various applications requiring durable and efficient power switching solutions. Explore other quality relays and electrical components available on EnvMart for your next project.
