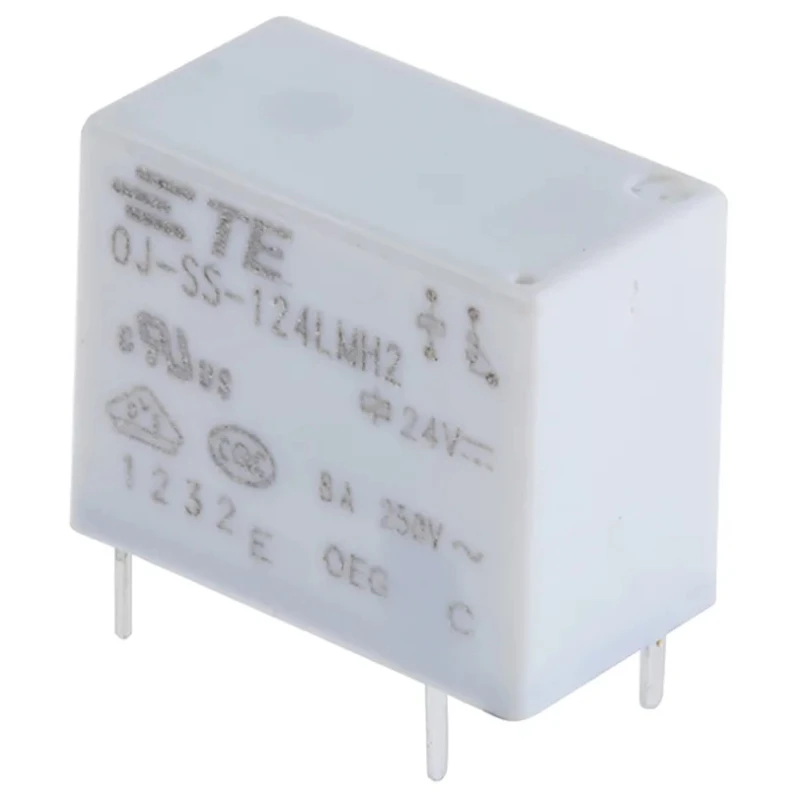

TE Connectivity PCB Power Relay 24V dc Coil 8A Switching Current SPST OJ-SS-124LMH2,005
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.7mm |
| Length | 18.2mm |
| Model | OJ-SS-124LMH2,005 |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | OJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
Key Features
- Designed for PCB mounting with SPST contact configuration.
- Operates at coil power of 200mW with coil resistance of 2.9 kΩ.
- Supports switching AC voltage up to 277V and DC voltage up to 30V.
- Wide operating temperature range from -30°C to 85°C.
- Constructed with silver alloy contact material for durability.
- Compact dimensions of 14.7 mm height, 18.2 mm length, and 10.2 mm width.
- Complies with RoHS standards, ensuring environmental safety.
- Provides isolation of 4000Vac between coil and contacts.
Product Description
TE Connectivity OJ-SS-124LMH2,005 is a high-quality PCB Power Relay featuring a 24V dc coil voltage and an 8A switching current designed for precise electrical switching applications. This single-pole single-throw (SPST) relay is optimized for PCB mounting, making it ideal for electronic control and automation systems requiring reliable switching solutions.
The relay’s coil resistance of 2.9 kΩ and coil power of 200mW ensure energy-efficient operation. It supports a switching AC voltage of up to 277V and a DC switching voltage of 30V, suitable for various low to medium power applications.
Operating reliably within a temperature range from -30°C to 85°C, this relay is built with silver alloy contact material, enhancing conductivity and durability under repeated switching cycles. The relay dimensions are 14.7 mm in height, 18.2 mm in length, and 10.2 mm in width, facilitating easy integration into compact PCB designs.
Designed to meet RoHS compliance, this product contributes to environmentally safe manufacturing processes. The isolation voltage between coil and contacts is rated at 4000Vac, ensuring high electrical isolation and operational safety in industrial, manufacturing, automation, and electrical equipment contexts.
Designed for PCB mounting with SPST contact configuration. Operates at coil power of 200mW with coil resistance of 2.9 kΩ. Supports switching AC voltage up to 277V and DC voltage up to 30V. Wide operating temperature range from -30°C to 85°C.
Constructed with silver alloy contact material for durability. Complies with RoHS standards, ensuring environmental safety. Compact size for space-conscious electronic designs. Ideal for industrial automation, control systems, and electrical applications.
Explore more Power Relay options and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
It can handle a maximum switching current of 8A.
The dimensions of this relay are 14.7 mm in height, 18.2 mm in length, and 10.2 mm in width.
This relay features a single-pole single-throw (SPST) contact configuration.
The coil resistance is 2.9 kΩ.
It operates reliably within a temperature range of -30°C to 85°C.
The isolation voltage between the coil and contacts is rated at 4000Vac.
The contacts are constructed with silver alloy material, enhancing conductivity.
It supports a maximum switching AC voltage of 277V and a DC voltage of 30V.
Yes, it complies with RoHS standards, ensuring environmental safety.
This model is designed for PCB mounting.
The coil power consumption is 200mW.
