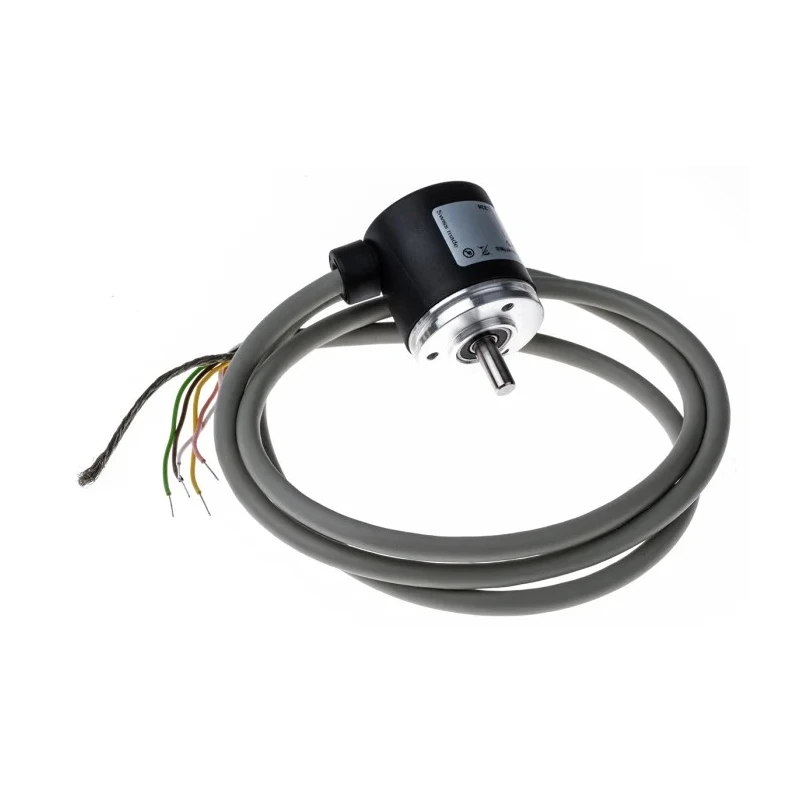

Baumer Optical Incremental Encoder 30V dc, 100 PPR, HTL Push-Pull Signal, Solid Shaft 5 mm, Synchro BDK 16.24K100-L5-5

Baumer BDK 16.24K100-L5-5 Optical Incremental Encoder is a high-precision sensor designed for motion control applications requiring reliable feedback signals. Featuring a 30V DC supply voltage and 100 pulses per revolution (PPR), this encoder offers precise and robust output with HTL (Push-Pull) signal type and TTL interface.

The device includes a solid 5 mm diameter shaft and mounting via synchro flange, facilitating easy integration into industrial setups. Its compact size with a 34 mm overall depth and 30 mm width allows installation in tight spaces.

Designed to operate reliably in harsh environments, it features an IP64 protection rating providing dust and splash resistance. The broad operating temperature range of -20°C to 85°C enables usage in diverse industrial and automation settings.

This Baumer encoder supports a maximum rotational speed of 6000 rpm and switching frequencies up to 100 kHz, making it suitable for dynamic motion control, manufacturing automation, robotics, and precise positioning systems. The unit is equipped with a 1 meter cable terminal for secure electrical connections.

Additional qualities include a plastic housing with aluminium flange, centring shoulder, low-profile mount, and short circuit protection with age and temperature compensation features. Manufactured in Switzerland, it meets UL standards emphasizing safety and durability.

The encoder technology utilizes precise optical sensing for accurate pulse detection. The solid shaft type with 5 mm diameter ensures sturdy mechanical coupling. The IP64 rating safeguards the encoder against dust ingress and water splashes.

The product operates smoothly within -20°C to 85°C temperature range. The synchro flange mount facilitates reliable and stable installation. The maximum speed capability is 6000 rpm for high-speed applications. The switching frequency of 100 kHz supports rapid signal processing.

The 1 m cable terminal type offers convenient and secure connectivity. The device includes short circuit protection and environmental compensation mechanisms. Made in Switzerland, ensuring premium quality and compliance with industrial standards.

This optical Incremental Encoder is ideal for industrial automation, robotics, manufacturing lines, and other motion control systems requiring reliable rotational feedback. Browse our full range of Baumer sensors and motion control components on EnvMart for your industrial application needs.
