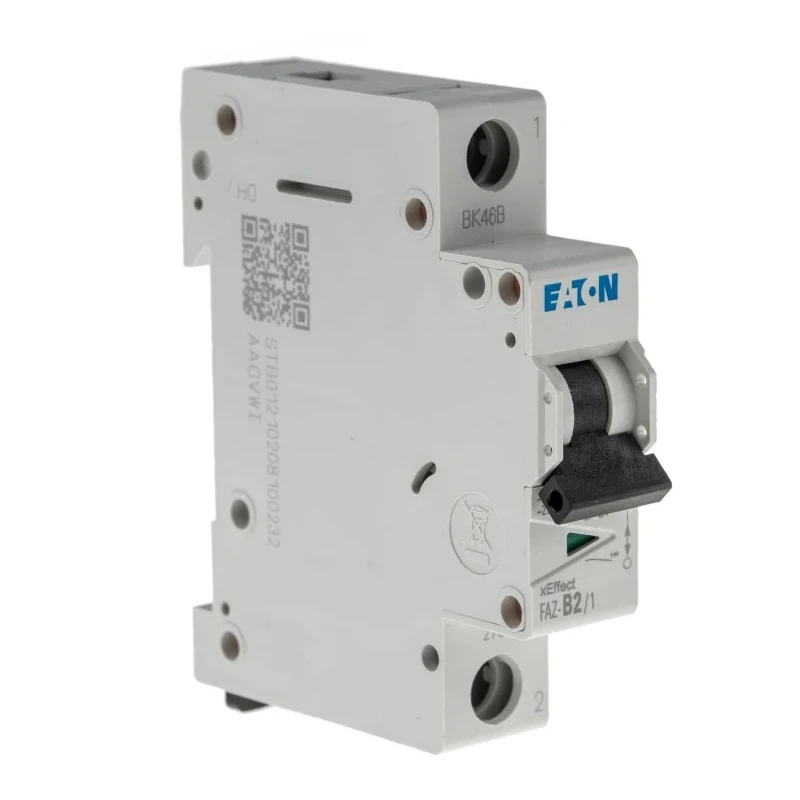

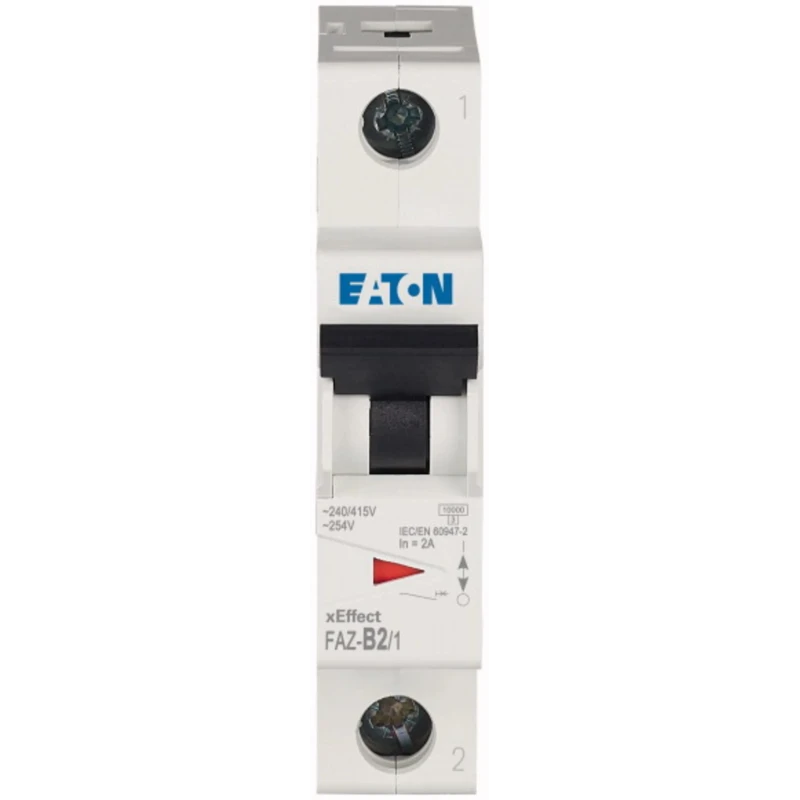

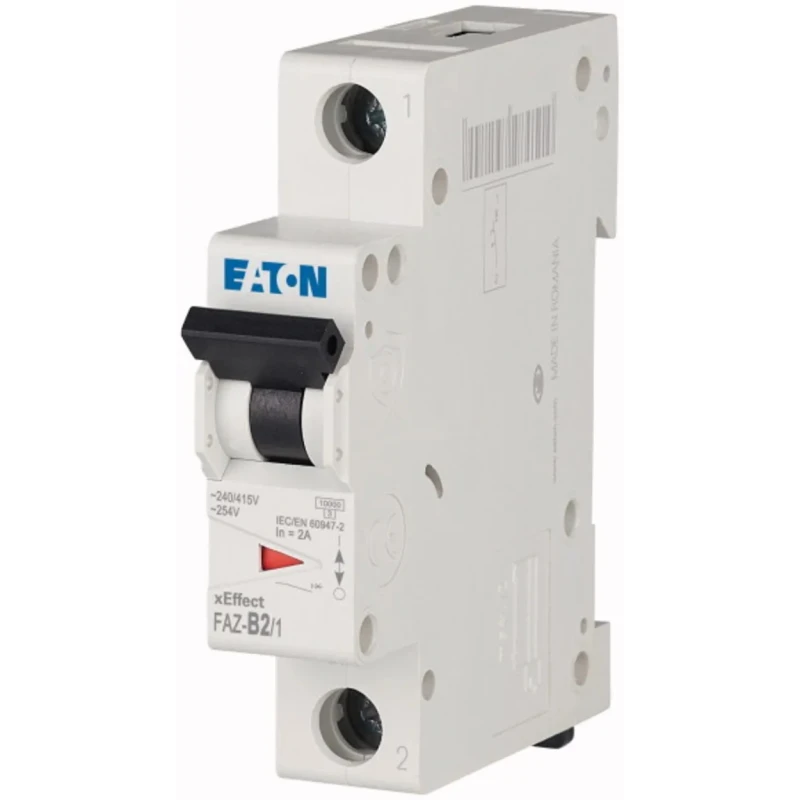

RS PRO xEffect Miniature Circuit Breaker 1-Pole 2A Type B 240V AC 48V DC 10kA Breaking Capacity 278523 FAZ-B2/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | RS PRO |
| Model | 278523 FAZ-B2/1 |
| Depth | 80mm |
| IP Rating | IP20 |
| Width | 66mm |
| Mount Type | DIN Rail |
| Current Rating | 2A |
| Series | xEffect |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Features thermal magnetic tripping mechanism with instantaneous break time.
- Supports rated AC voltage of 240V and DC voltage of 48V for versatile use.
- Offers a rated breaking capacity of 10kA to handle power surges effectively.
- Mounts quickly on DIN rail with screw terminal contacts for easy installation.
- Compact width of 66mm and depth of 80mm suitable for tight panel spaces.
- Provides safety with a toggle switch reset actuator indicating trip status clearly.
- Suitable for industrial use in generators, switchgears, and control circuits.
- Designed as per Eaton’s xEffect series for enhanced circuit protection and safety.
Product Description
Eaton 278523 FAZ-B2/1 Miniature Circuit Breaker is a single-pole 2A device with Type B tripping characteristics, supporting 240V AC and 48V DC with a breaking capacity of 10kA. It is designed to provide reliable thermal magnetic overcurrent protection for electrical circuits.
The breaker’s quick DIN rail mounting simplifies installation without special tools. Screw terminal connections ensure a firm and secure wiring interface. The toggle switch reset actuator provides clear indication of its status, locking in the OFF position until faults are cleared for enhanced safety.
Its compact build with a width of 66mm and depth of 80mm enables efficient use of panel space. The device operates effectively in a wide range of temperatures, making it suitable for demanding industrial environments like manufacturing, electrical distribution boards, generators, and switchgears.
The FAZ series from Eaton’s xEffect range offers fast short-circuit interruption with current limiting design, reducing damage risks to electrical components. The trip-free mechanism prevents manual override, ensuring consistent safety and protection.
Additional features include a rated breaking capacity of 10kA and a thermal magnetic tripping mechanism that responds instantaneously to faults. This breaker complies with pertinent quality construction standards, though no specific approvals are listed.
Thermal magnetic tripping mechanism for overload and short-circuit protection. Rated AC voltage 240V and DC voltage 48V for versatile application. 10kA breaking capacity for effective surge handling. DIN rail mounting for ease of installation.
Screw terminal contacts for secure connection. Toggle switch reset actuator shows clear trip indication and lock-out. Compact dimensions suitable for control panels. Designed for industrial and commercial electrical protection.
Explore the extensive range of circuit breakers and electrical protection devices in the Electronics & Electricals category on EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated breaking capacity of this miniature circuit breaker is 10kA, allowing it to effectively handle power surges.
This model supports a rated AC voltage of 240V and a rated DC voltage of 48V, making it versatile for different applications.
It features a thermal magnetic tripping mechanism that provides protection against overloads and short circuits.
The breaker mounts quickly on a DIN rail, facilitating easy installation without the need for special tools.
This unit has a compact width of 66mm and a depth of 80mm, making it suitable for tight panel spaces.
It includes a toggle switch reset actuator that provides clear trip status indication and locks in the OFF position until faults are cleared.
The current rating of this miniature circuit breaker is 2A, suitable for various electrical circuits.
This circuit breaker has an IP20 rating, indicating protection against solid objects larger than 12mm but no protection against water.
This model belongs to the xEffect series, designed for enhanced circuit protection and safety.
The tripping characteristic of this breaker is Type B, which is suitable for applications with moderate inrush currents.
It uses screw terminal connections, ensuring a firm and secure wiring interface for reliable operation.
This miniature circuit breaker is manufactured in India.
