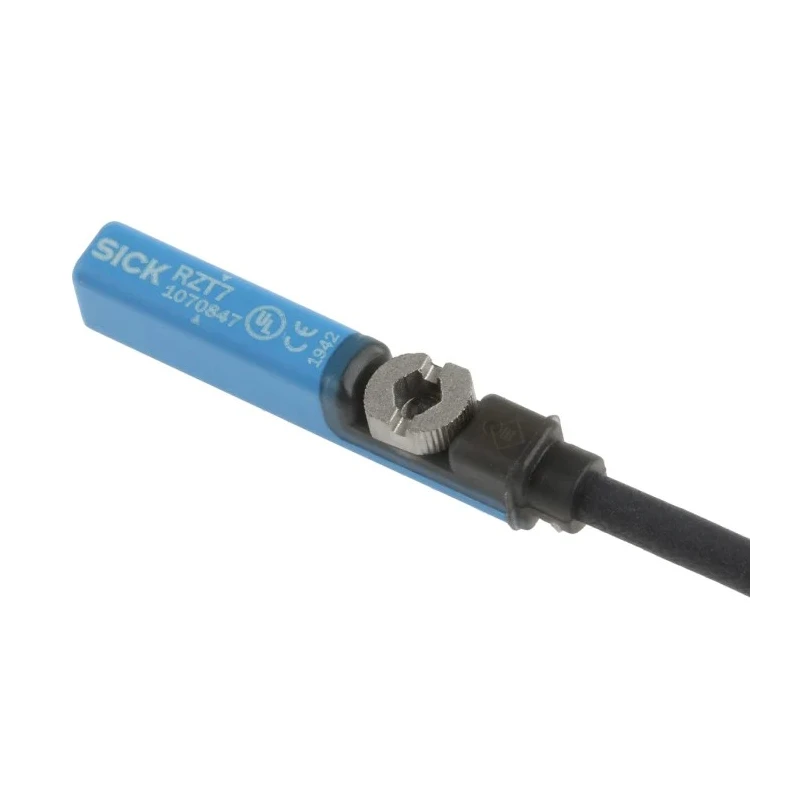

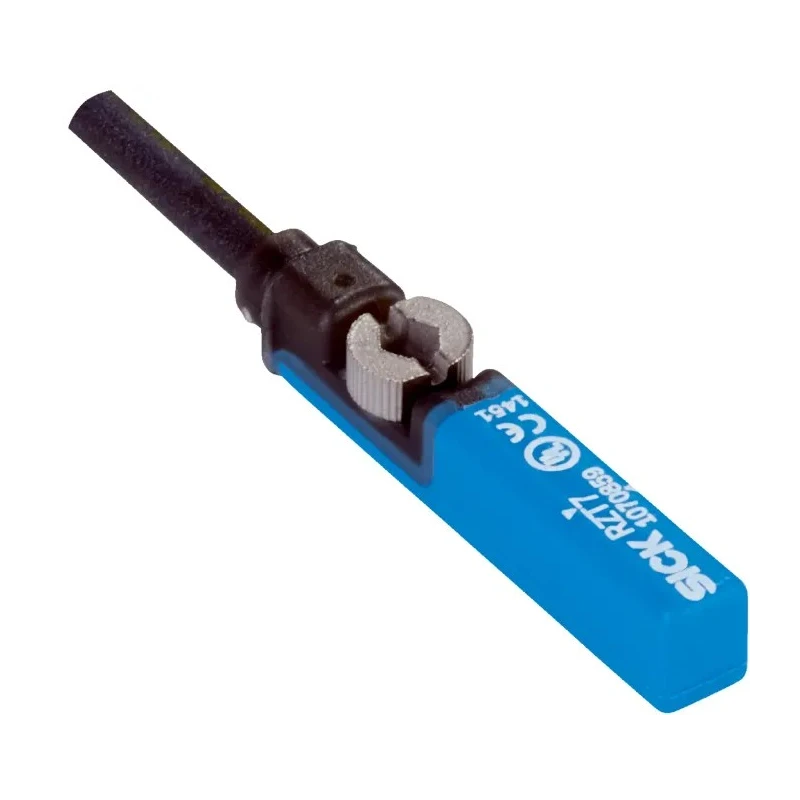

SICK Pneumatic Sensor Cable with Connector M8 3 Pin, Reed Output, IP67/IP65, 30 V ac/dc, Plastic Housing, RZT7-03ZRS-KP0

SICK RZT7-03ZRS-KP0 pneumatic sensor cable with connector M8 3 pin is designed for reliable piston position monitoring within T-slot cylinders and profile rails. Featuring a magnetic reed switch output with normally open contact, it supports simple and fast switching with a frequency of approximately 400 Hz, ideal for cyclic industrial automation applications.

The sensor's LED indicator delivers instant visual feedback of the switch status, improving diagnostics and maintenance efficiency. Constructed with robust plastic housing and a compact 2.9 mm diameter, it fits easily into dovetail grooves, making it suitable for retrofit sensing on pneumatic actuators.

With an IP rating of IP65 and IP67, this sensor cable is protected against dust ingress and can withstand washdown processes, making it reliable for harsh industrial environments. The sensor is operational across a wide temperature range of -30°C to 80°C and includes reverse-polarity protection to safeguard electronics against incorrect wiring.

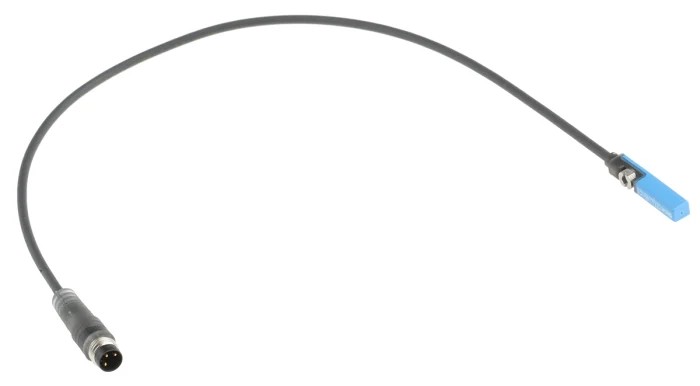

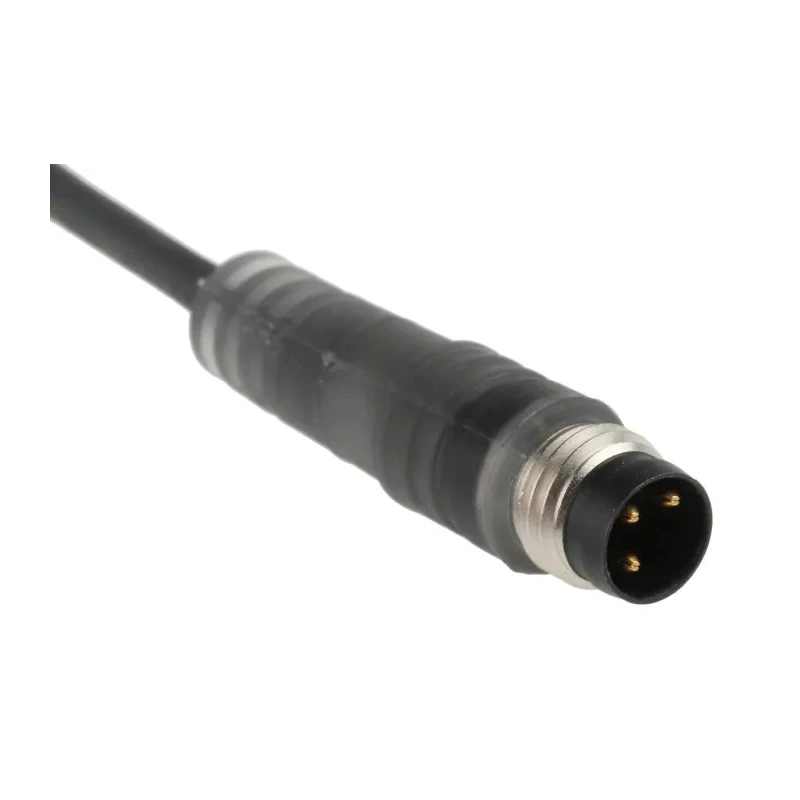

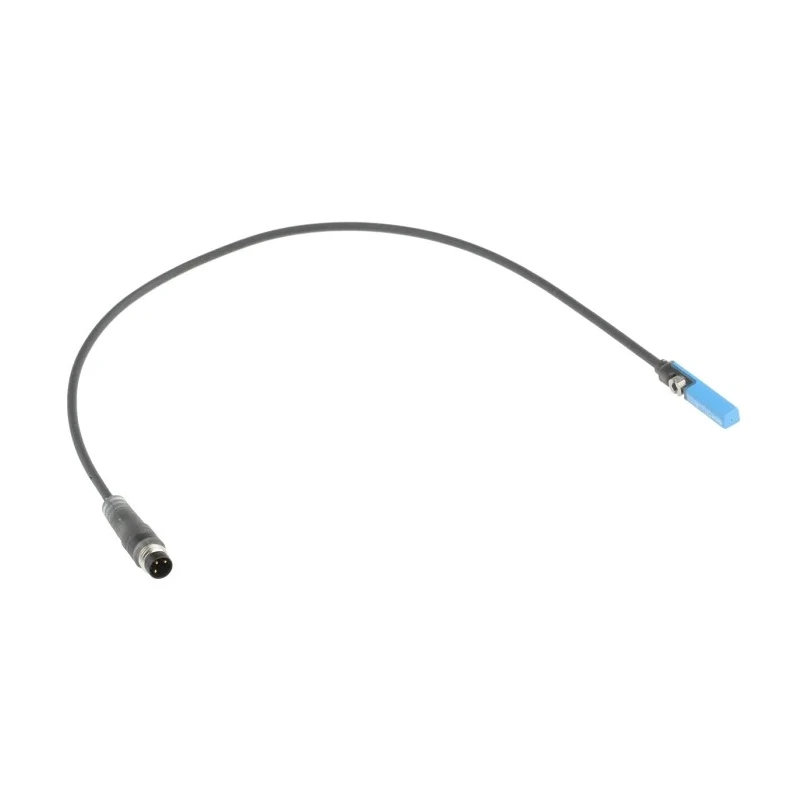

The cable assembly consists of a 0.3 meter PUR cable with 0.14 mm² conductors terminating in an M8 3-pin connector, providing a straightforward and secure electrical connection. Operating voltage compatibility includes both AC and DC supplies from 5 V to 30 V, and the sensor can handle continuous currents up to 500 mA DC and 300 mA AC, with a power switching capacity limit of 6 W.

This pneumatic sensor is ideal for use with T-slot cylinders and profile rails such as SMC's CDQ2 and ECDQ2 series and can be integrated into pneumatic assembly lines requiring compact and reliable position sensing. It is vibration and shock resistant to withstand industrial stresses with shock resistance up to 30g and vibration tolerance from 10 - 55 Hz at 1 mm amplitude.

Reed switching output with normally open contact enables simple signal integration. LED status indicator provides immediate visual confirmation of switch state. IP65 and IP67 rated enclosure ensures protection against dust and washdown environments.

Compact 2.9 mm diameter design fits within dovetail grooves for retrofit sensing. Operating voltage supports AC/DC 5 to 30 V for broad industrial applications. Durable plastic housing suitable for temperatures from -30°C to 80°C.

Cable with 0.3 m PUR length and 0.14 mm² conductors terminates in M8 3-pin connector for easy installation. Compatible with T-slot cylinders and profile rails including SMC CDQ2 and ECDQ2. Shock and vibration resistant for demanding factory and process environments.
