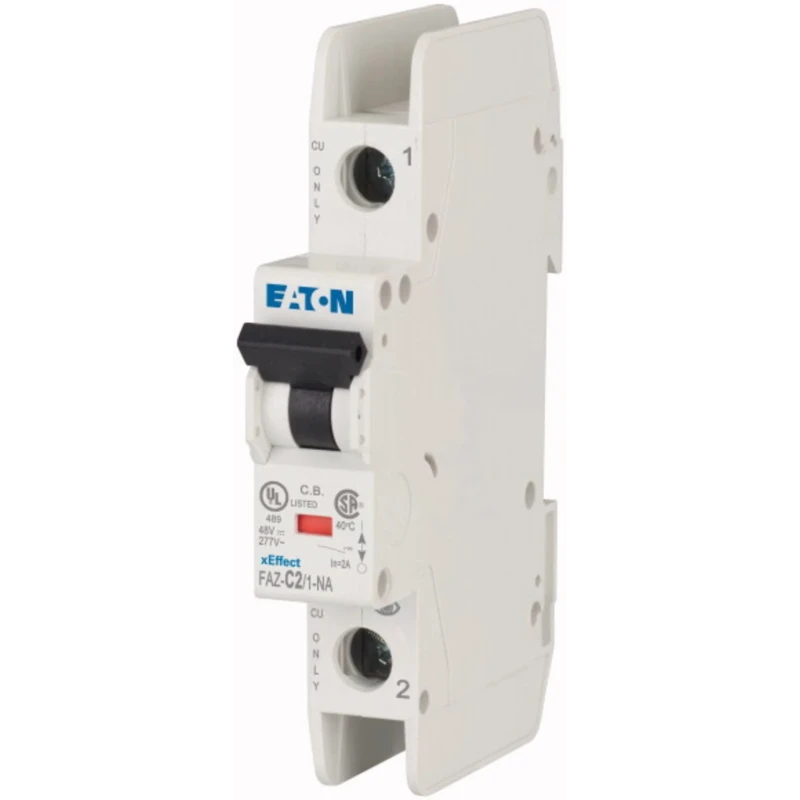

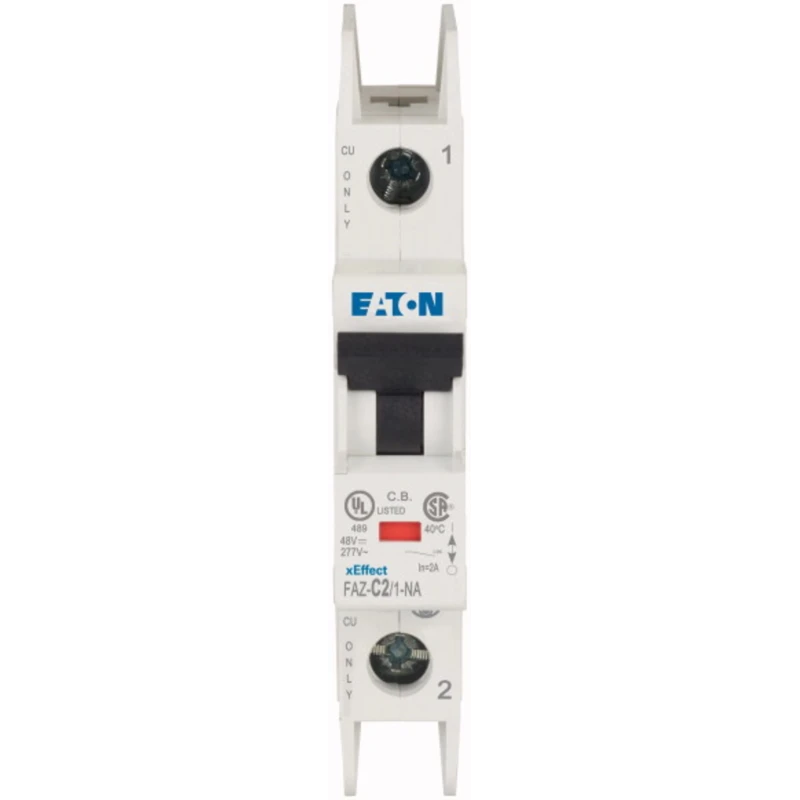

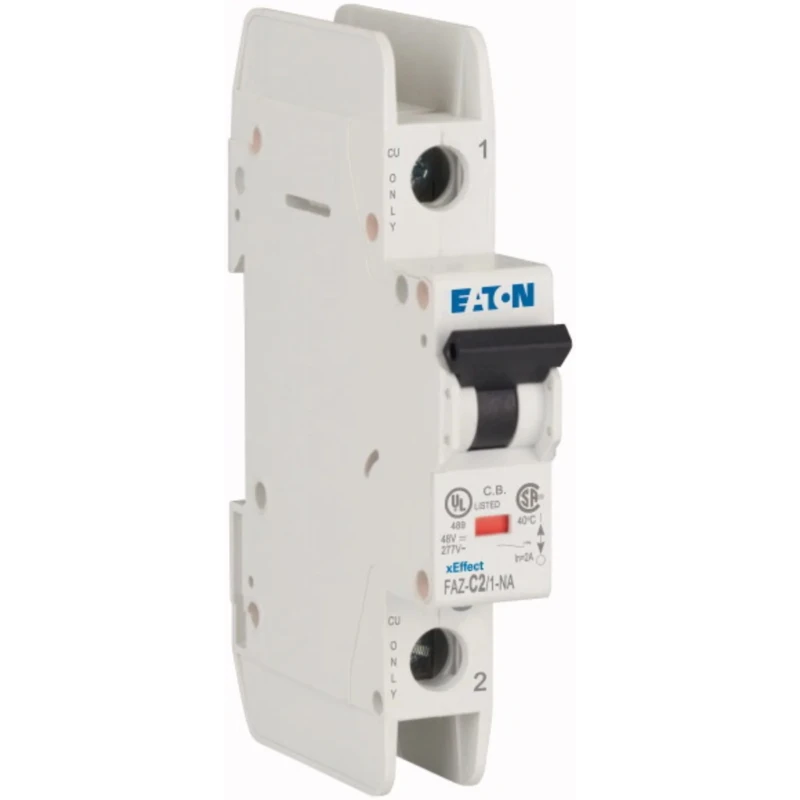

Eaton xEffect Miniature Circuit Breaker 1-Pole 2A Type C 415V AC 48V DC 10kA Breaking Capacity 102080 FAZ-C2/1-NA

The Eaton 102080 FAZ-C2/1-NA xEffect series Miniature Circuit Breaker is a 1-pole, 2A current rated device specifically engineered to protect single-phase electrical circuits. It supports both AC and DC voltages rated at 415V AC and 48V DC respectively, and is designed with a thermal magnetic tripping mechanism for precise and instantaneous fault clearance.

Its robust construction ensures over 20,000 mechanical operations providing durability required in industrial, commercial, and residential electrical systems. The breaker’s DIN rail mounting and compact size (66 mm width, 80 mm height, 80 mm depth) allow easy integration into dense panel layouts and distribution boards.

Featuring a screw terminal type and a toggle switch reset actuator, it ensures dependable and safe connections with finger-safe and back-of-hand-proof terminals that protect operators against electric shock hazards. Eaton’s FAZ series breakers are known for their modular design and low heat dissipation (1.4W), which supports energy efficiency and system reliability.

The 10 kA breaking capacity safely interrupts fault currents, making this breaker suitable for light-duty electrical protection such as lighting circuits, security camera power supplies, and other low-current installations.

With an IP20 ingress protection rating, the device is protected against solid objects greater than 12 mm and provides finger safety, complying with standard electrical installation safety and operating requirements.

The breaker offers instantaneous break time with Type C tripping characteristics suitable for general-purpose applications. It provides low maintenance and easy reset functionality enhancing operational uptime. Ideal for industrial automation, electrical distribution panels, manufacturing units, water treatment plants, and HVAC control systems.

Eaton’s FAZ series is a trusted solution that reduces downtime by acting swiftly to isolate faults. Its compact and reliable design conforms to industry standards ensuring safe installation and operation. This Miniature Circuit Breaker expands Eaton’s xEffect family, catering specifically to safety and operational efficiency in power distribution and electrical load protection.
