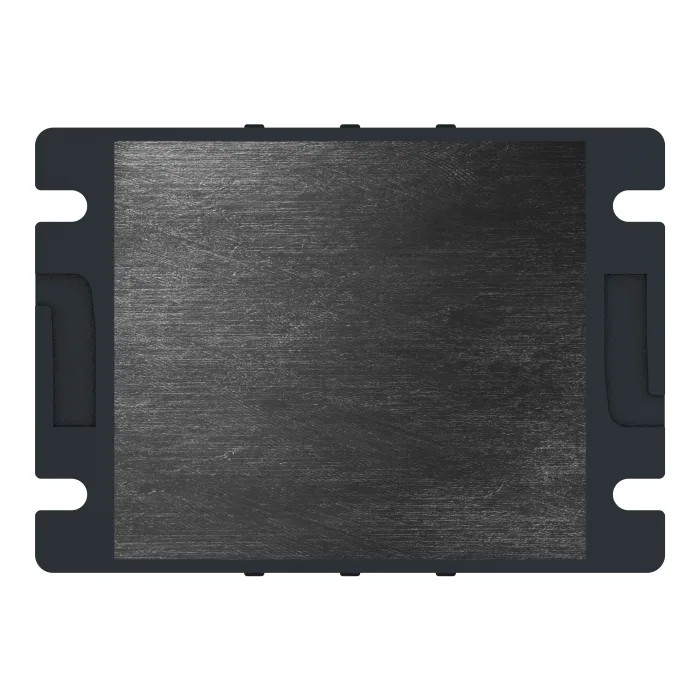

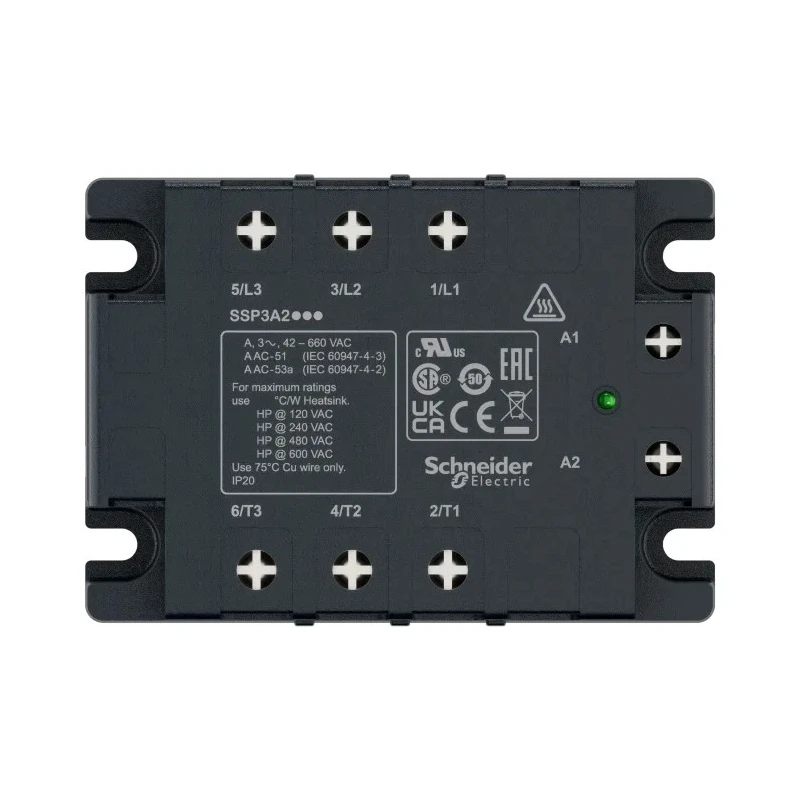

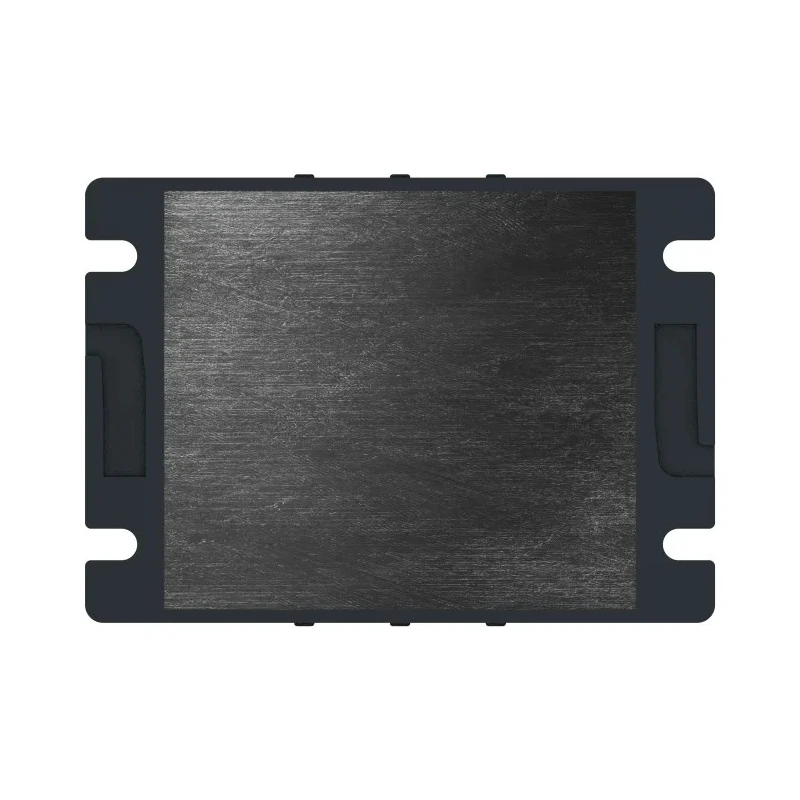

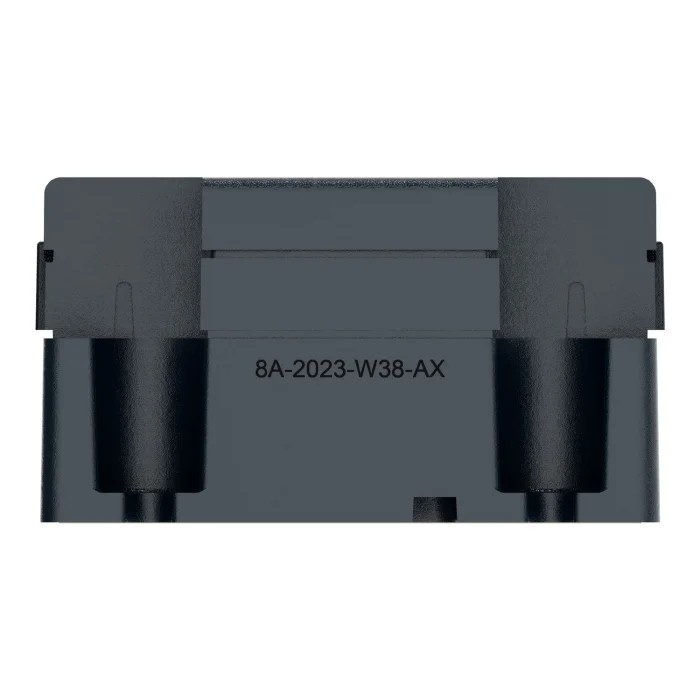

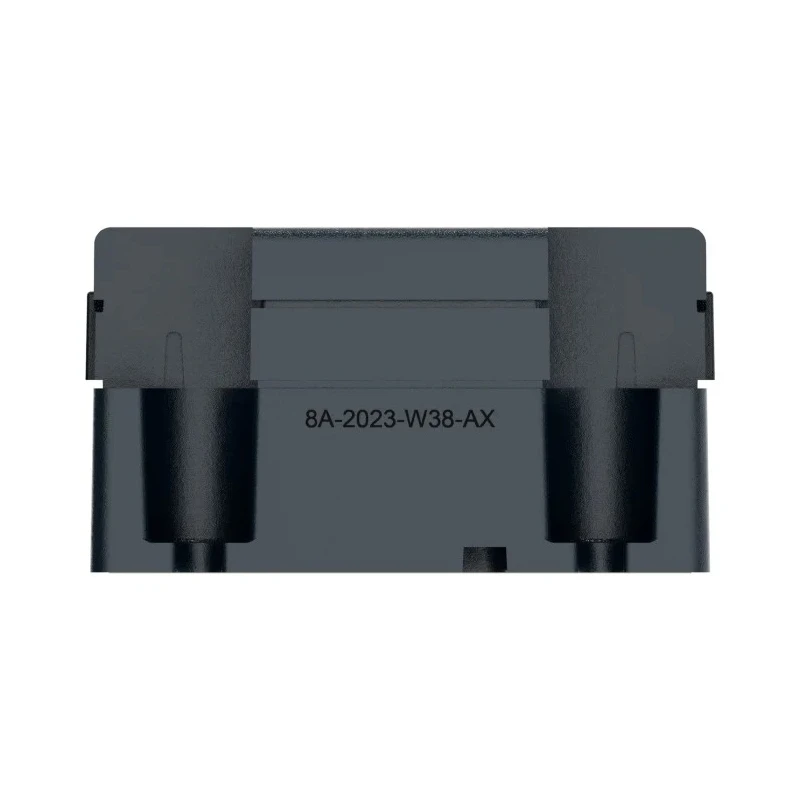

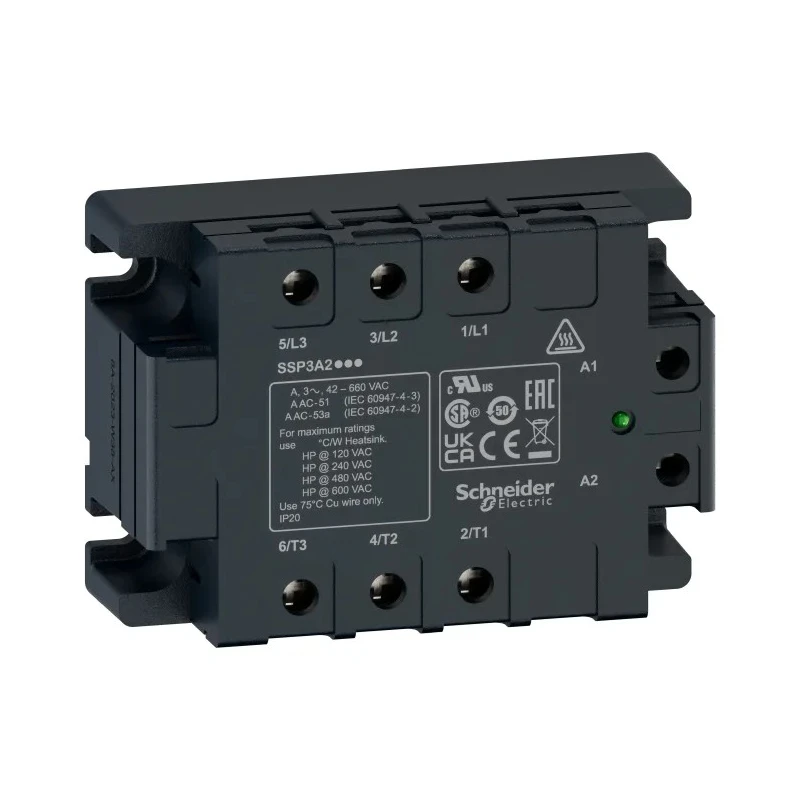

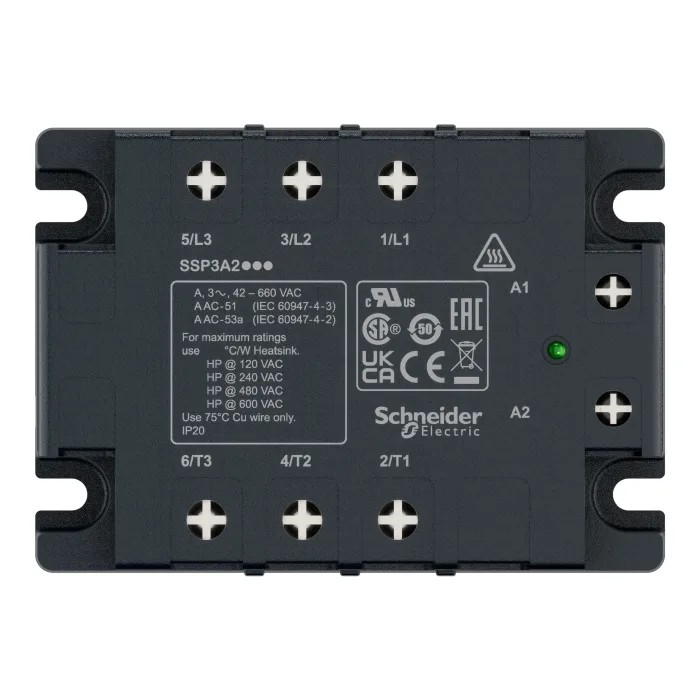

Schneider Electric Harmony Relay Series Solid State Relay, 25 A Load, Panel Mount, 530 V AC Load, 32V DC Control SSP3A225BDT

Schneider Electric SSP3A225BDT Harmony Relay Series Solid State Relay is engineered for high reliability and silent operation, providing a compact panel-mount solution for industrial automation and control systems. It supports a maximum load current of 25 A and can switch AC loads from 48V up to 530V, controlled via a DC input voltage range of 4 to 32 volts.

This Solid State Relay employs zero voltage switching technology for resistive loads, significantly reducing electromagnetic interference and extending device life. The relay is equipped with a visual indicator showing input status and an alarm output to detect faults promptly, enhancing operational safety and maintenance efficiency.

The device features screw terminal connections for robust mounting and an integrated test button to facilitate straightforward commissioning and troubleshooting. It withstands harsh industrial conditions with operating temperatures from -40°C to +80°C and an IP20 protection rating against contact and ingress of solid objects.

Compliant with industry standards such as CE, CSA, IEC 61000, REACH, RoHS, and UL, this relay ensures quality and safety in demanding applications. The contact configuration is 3PNO, and the output type is SCR with an off-state leakage current of 3mA and capacitance of 8pF.

Ideal for industrial, manufacturing, HVAC, and electrical control systems, the SSP3A225BDT ensures efficient, reliable, and silent load switching. Its robust design and extensive certifications make it suitable for critical control environments requiring durable and maintenance-friendly components.

Rated load current up to 25 A for reliable power switching. Suitable for AC load voltages ranging from 48V to 530V. Control voltage operates between 4V to 32V DC for flexible interfacing. Panel mount design with screw terminals for secure installation.

Features visual status indication and alarm output for quick diagnostics. Zero voltage switching minimizes electromagnetic interference in resistive loads. Test button included for easy debugging and commissioning. Silent operation due to absence of mechanical contacts.

Designed for robust industrial environments with IP20 rating protection. Certified to standards including CE, CSA, IEC 61000, REACH, RoHS, and UL. Explore more Schneider Electric products and relay solutions at EnvMart for your electrical, automation, and control system needs.
