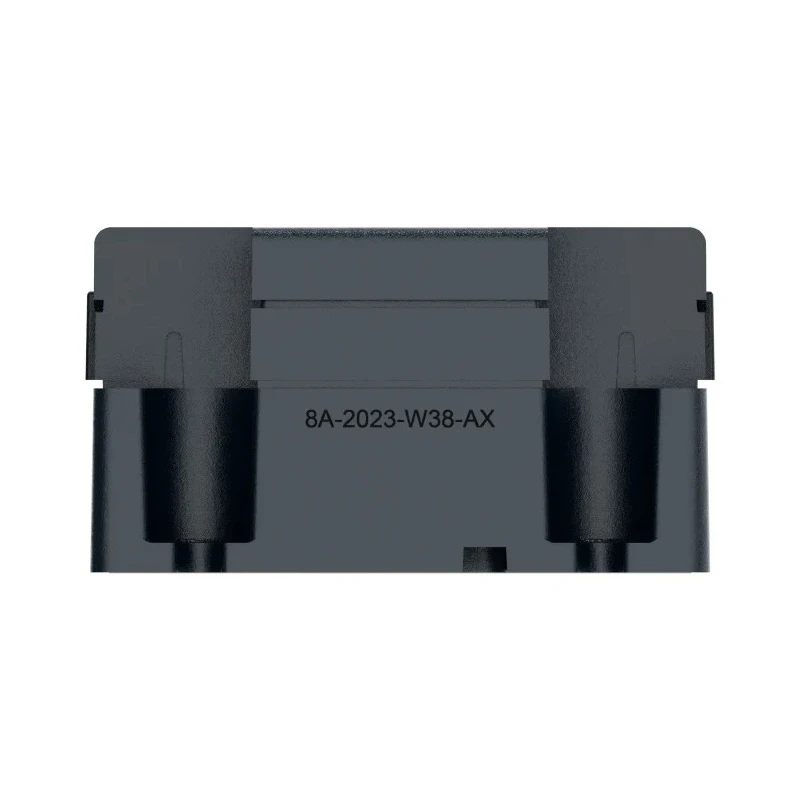

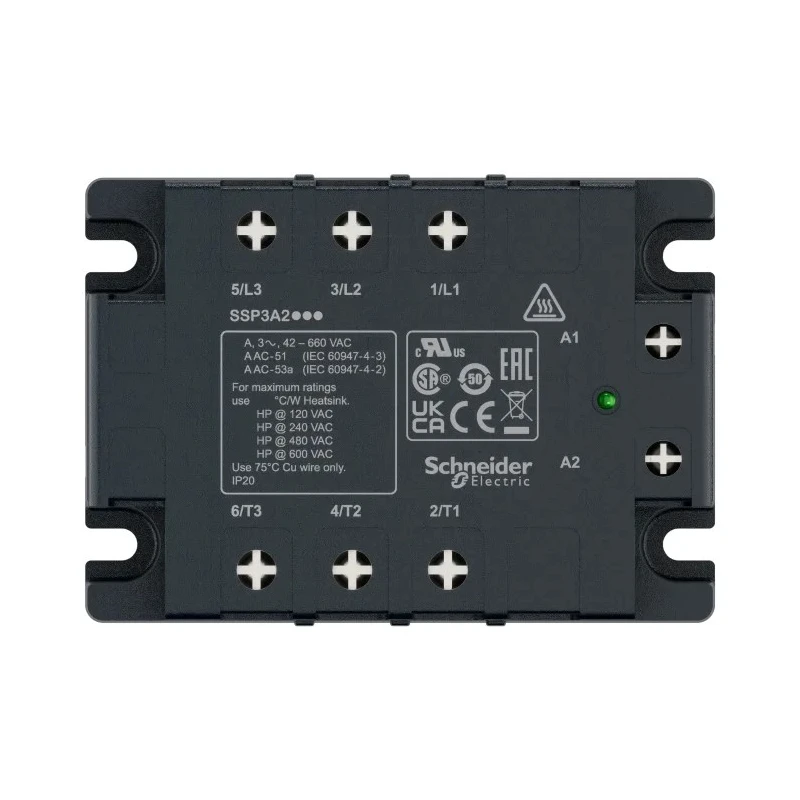

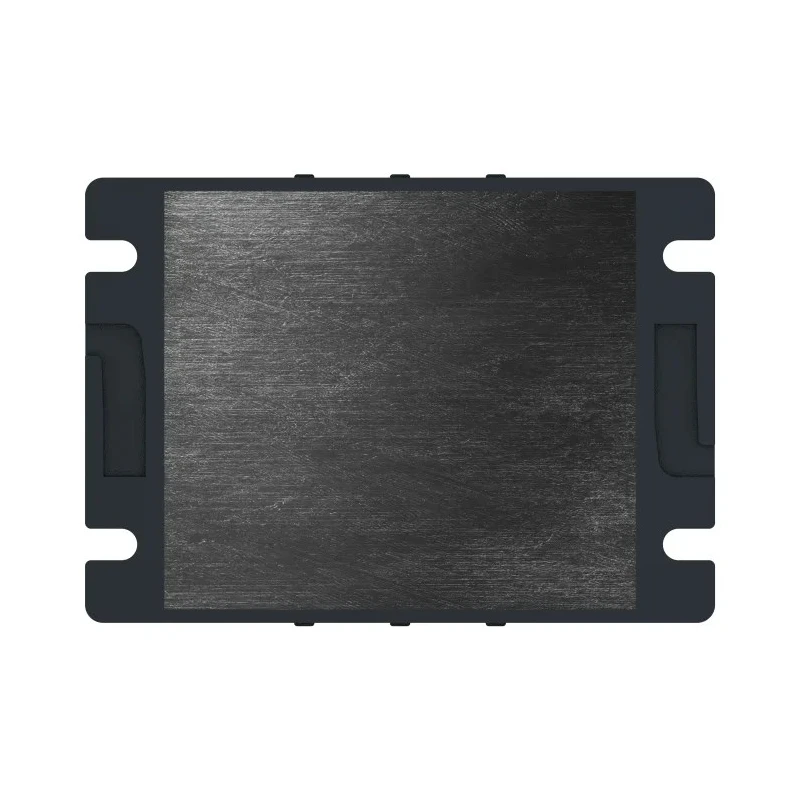

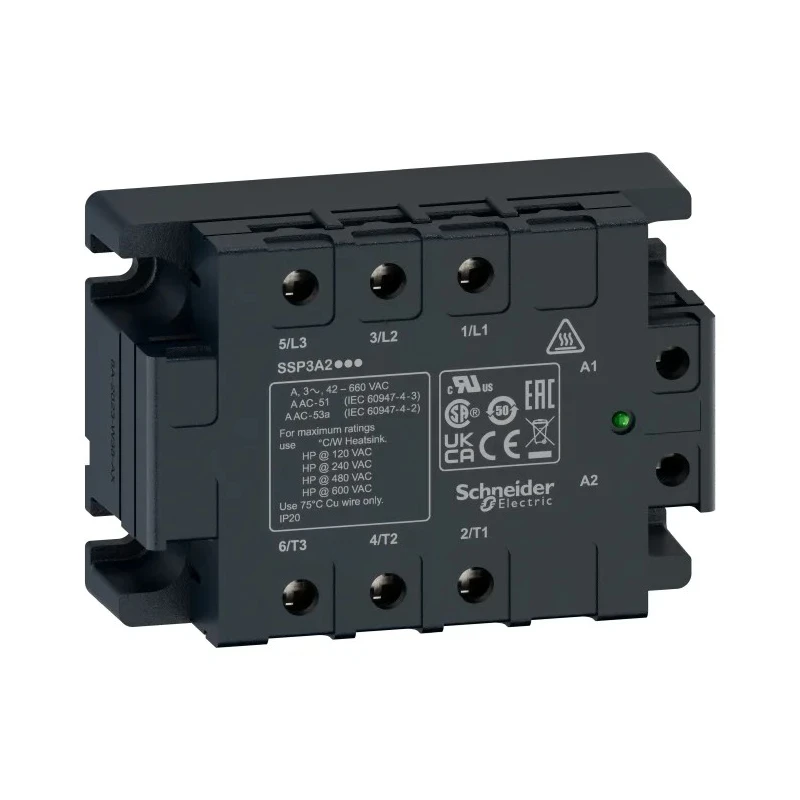

Schneider Electric Harmony Relay Series Solid State Relay, Panel Mount, 50 A Load Current, 530 V AC Load SSP3A250P7T
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 35.5mm |
| Length | 101.3mm |
| Model | SSP3A250P7T |
| IP Rating | IP20 |
| Width | 101.3mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 3PNO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | UL, IEC 62314, IEC 61000, IEC 60950-1, CSA |
| Maximum Load Voltage | 530V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 180V ac |
| Maximum Control Voltage | 280V ac |
| Off State Leakage Current | 3mA |
| Schneider Electric Panel Relay HeatsinkBrand | Schneider Electric |
Key Features
- Designed for panel mounting with screw terminals for ease of installation.
- Supports zero voltage switching function to minimize electrical noise.
- Compact size with dimensions 101.3mm length, 101.3mm width, and 35.5mm height.
- Built for high durability with operating temperatures from -40°C to 80°C.
- Features a visual indicator for input status and an alarm output for quick response to faults.
- Silent and reliable operation ensured by solid-state design without moving parts.
- Complies with UL, IEC 62314, IEC 61000, IEC 60950-1, and CSA standards.
- Ideal for controlling resistive loads in industrial and automation applications.
Product Description
Schneider Electric SSP3A250P7T is a Harmony Relay Series solid state relay designed for panel mount applications requiring high load capacity and precise control. Rated for a maximum load current of 50 A and a maximum load voltage of 530 V AC, this relay operates within a control voltage range of 180 V to 280 V AC. It features zero voltage switching for reducing electrical interference and minimizing wear on electrical components.
The relay comes equipped with screw-type terminals for secure and efficient wiring. Its robust design supports an operating temperature range from -40°C to 80°C, making it suitable for a diverse range of industrial environments. The compact dimensions of 101.3mm x 101.3mm x 35.5mm allow for space-efficient panel integration.
The device includes a visual indicator to show the input status and an alarm output to quickly signal abnormal conditions, enhancing maintenance and safety. The solid state architecture ensures silent operation and long lifespan, as there are no mechanical moving parts, greatly increasing reliability.
This product meets several internationally recognized standards including UL, IEC 62314, IEC 61000, IEC 60950-1, and CSA, ensuring safety and quality compliance.
Applications include automation, electrical panels, HVAC systems, manufacturing equipment control, and other industrial uses requiring efficient and reliable solid state switching.
Designed for panel mount installation with durable screw terminals for reliable connections. Zero voltage switching function minimizes electrical noise and enhances load switching stability. Robust operation over a wide temperature range suitable for harsh industrial conditions.
Visual input status indicator and alarm output provide enhanced fault detection and maintenance ease. Compact form factor facilitates easy integration into control panels and automation systems. Silent operation achieved through solid state technology eliminates mechanical wear.
Compliance with major international safety and performance standards ensures trustworthy operation. Explore EnvMart's wide selection of Schneider Electric Solid State Relays for industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 50 A.
It operates within a temperature range of -40°C to 80°C.
The dimensions are 101.3 mm in length, 101.3 mm in width, and 35.5 mm in height.
The maximum load voltage is 530 V AC.
This relay is designed for panel mounting.
The control voltage range is from 180 V to 280 V AC.
Yes, it features zero voltage switching to minimize electrical noise.
It uses screw-type terminals for secure wiring connections.
It complies with UL, IEC 62314, IEC 61000, IEC 60950-1, and CSA standards.
The output type is SCR (Silicon Controlled Rectifier).
The off state leakage current is 3 mA.
It is suitable for controlling resistive loads in industrial and automation applications, including HVAC systems and manufacturing equipment control.
