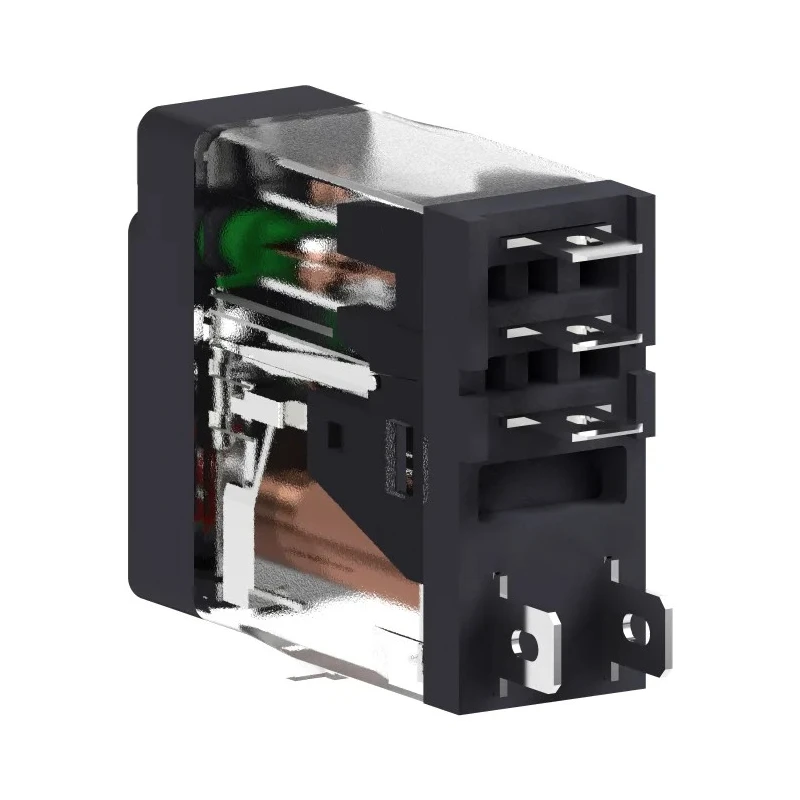

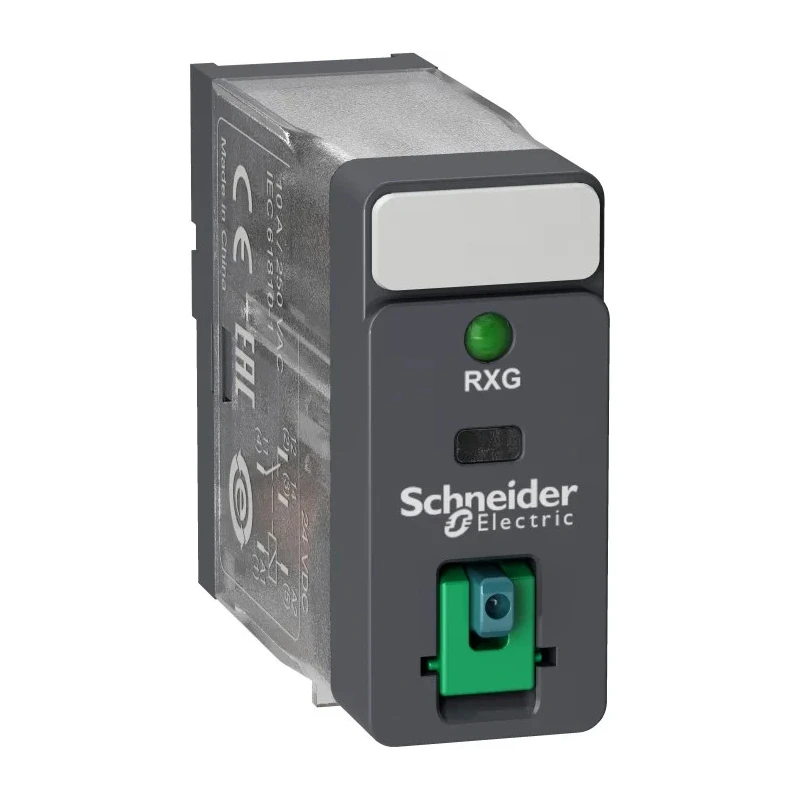

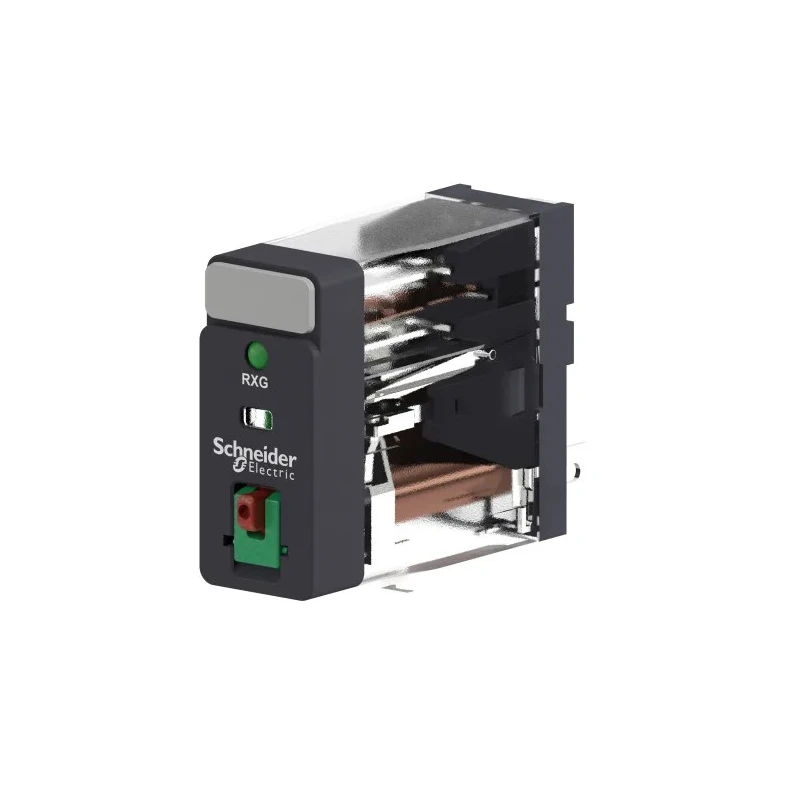

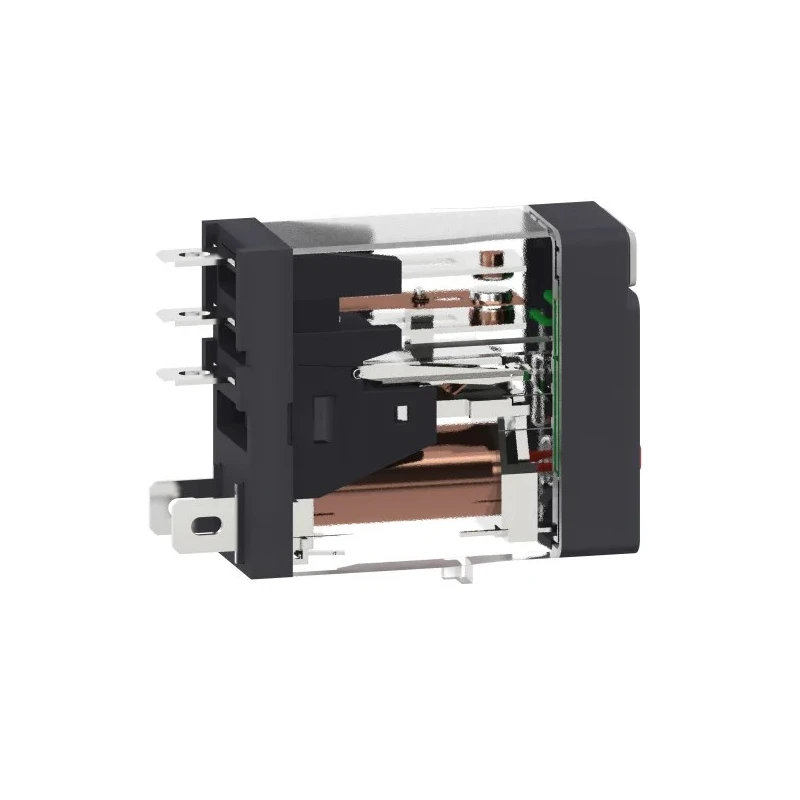

Schneider Electric Power Relay 110V DC Coil 10A Switching Current SPDT RXG12FD

Schneider Electric RXG12FD is a high-quality power relay from the Harmony Relay RXG series, engineered for industrial and automation control applications. Featuring a 110V DC coil and a single pole double throw (SPDT) contact configuration, this relay provides a switching current rating of 10A.

Its compact plug-in design with dimensions of 30.6mm height, 37.1mm width, and 13mm length enables streamlined panel mounting and space saving in control enclosures. The relay is built to operate reliably across a broad temperature range from -40°C to 70°C, suitable for demanding industrial environments.

Constructed with silver alloy contacts and maintaining a low contact resistance of 100mΩ, the RXG12FD ensures excellent electrical performance and longevity. The coil resistance of 22.8kΩ and low coil power of 530mW contribute to efficient energy consumption during operation.

It supports switching of both AC voltage up to 250V and DC voltage up to 30V, with a switching power rating of 2.5 kVA, making it versatile for multiple electrical applications. Certified to CE and CSA standards, it guarantees compliance with international norms.

This product is part of Schneider Electric’s Better World initiative, designed specifically for ease of disassembly to enhance sustainability and support responsible manufacturing practices.

Applications include interface relays for industrial programmable logic controllers (PLCs), logic automation, signal conditioning, and control gear systems in industrial, manufacturing, HVAC, and automation sectors. Its plug-in terminal and test-friendly design improve maintainability and system reliability.

This power relay belongs to the Harmony Relay RXG series designed for reliable industrial automation applications. The plug-in terminal type enables easy installation with a compact form factor measuring 30.6mm height, 37.1mm width, and 13mm length.

It operates within a wide temperature range from -40°C to 70°C ensuring robust performance in harsh environments. Contact material is silver alloy with low 100mΩ contact resistance providing efficient electrical conductivity.

Coil resistance is specified at 22.8 kΩ with a coil power consumption of 530 mW for energy-efficient operation. The relay supports switching AC voltage up to 250V and DC voltage up to 30V with a switching power of 2.5 kVA.

Designed for disassembly, it contributes to sustainability and easier recycling as part of Schneider Electric's Better World initiative. Standard approvals include CE and CSA ensuring compliance with international quality and safety standards.
