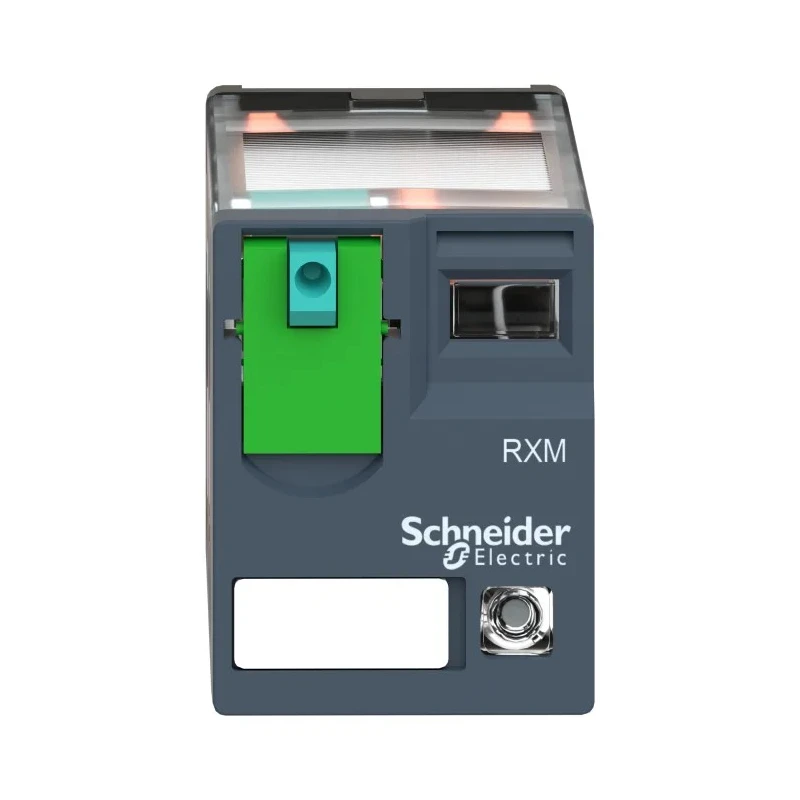

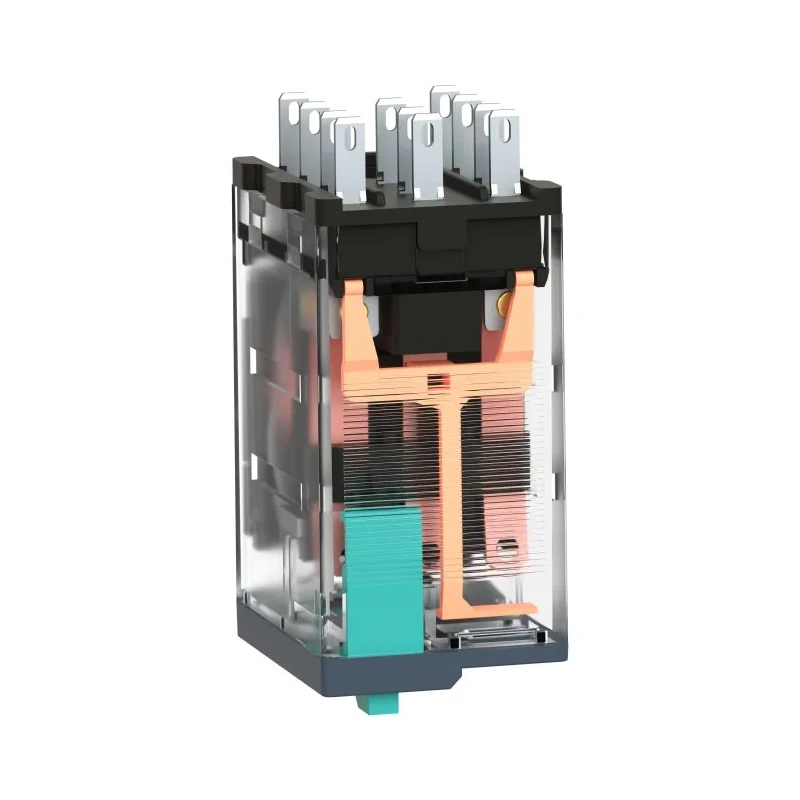

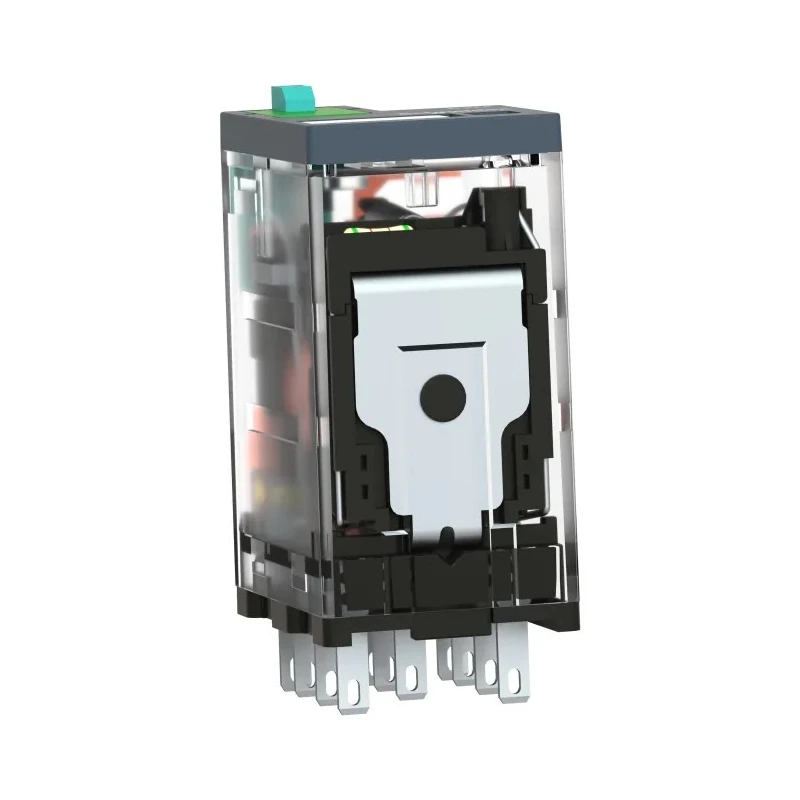

Schneider Electric Power Relay 110V dc Coil 10A Switching Current 3PDT RXM3AB2FD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM3AB2FD |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 13.4kΩ |
| Coil Voltage | 110V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
Key Features
- Operates at coil voltage of 110V DC ensuring reliable switching performance.
- Configures contacts in 3PDT (3 Pole Double Throw) arrangement for versatile circuit control.
- Compact design with dimensions 47.7mm width, 27mm height, and 21mm length.
- Switching current rated at 10A supports moderate power loads efficiently.
- Uses high-quality silver alloy for contacts to enhance conductivity and durability.
- Coil resistance of 13.4kΩ and coil power consumption of 900mW for efficient operation.
- Wide operating temperature range from -40°C to 55°C for extended industrial use.
- Standards certified including CE and CSA for quality and safety compliance.
Product Description
Schneider Electric RXM3AB2FD power relay features a 110V DC coil and a 10A switching current capacity with a 3PDT contact configuration, providing reliable and compact switching solutions for industrial automation, electrical enclosures, and HVAC equipment.
This miniature relay from the Harmony RXM series offers a robust, hard-wearing design with silver alloy contacts to ensure excellent electrical conductivity and durability under demanding operating conditions.
The relay supports operation within a temperature range of -40°C to 55°C, making it suitable for diverse industrial and commercial environments. Its plug-in terminal design facilitates easy installation and maintenance on DIN rails or mounting bases (sold separately).
The RXM3AB2FD relay includes a coil resistance of 13.4kΩ and consumes 900mW coil power, delivering efficient electromagnetic switching. It complies with international safety standards CE and CSA, ensuring trusted performance and reliability.
This device is ideal for expanding control functions in automation systems, building equipment, and other industrial electrical applications requiring robust power relay switching capabilities with non-latching operation.
Operates at coil voltage of 110V DC ensuring reliable switching performance. Configures contacts in 3PDT (3 Pole Double Throw) arrangement for versatile circuit control. Compact design with dimensions 47.7mm width, 27mm height, and 21mm length.
Switching current rated at 10A supports moderate power loads efficiently. Uses high-quality silver alloy for contacts to enhance conductivity and durability. Coil resistance of 13.4kΩ and coil power consumption of 900mW for efficient operation.
Wide operating temperature range from -40°C to 55°C for extended industrial use. Standards certified including CE and CSA for quality and safety compliance. Plug-in terminal type allows easy installation and integration in DIN rail assemblies.
Schneider Electric Power Relays like the RXM3AB2FD series are commonly employed in industrial automation, manufacturing equipment, HVAC systems, and other electrical control applications requiring dependable electromechanical switching with a compact footprint.
Explore more Schneider Electric products and related power relay components at EnvMart for industrial, electrical, and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXM3AB2FD relay operates at a coil voltage of 110V DC.
This model has a switching current rated at 10A, supporting moderate power loads efficiently.
It features a 3PDT (3 Pole Double Throw) contact configuration for versatile circuit control.
The relay has dimensions of 47.7mm in width, 27mm in height, and 21mm in length.
The coil resistance of the RXM3AB2FD is 13.4kΩ.
The coil power consumption for this model is 900mW.
It operates within a temperature range of -40°C to 55°C, suitable for diverse industrial environments.
The contacts are made from high-quality silver alloy, enhancing conductivity and durability.
This relay is certified to meet CE and CSA standards for quality and safety compliance.
It features a plug-in terminal design, allowing for easy installation on DIN rails or mounting bases.
The maximum switching voltage for DC is 28V and for AC is 250V.
This relay is suitable for industrial automation, electrical enclosures, and HVAC equipment.
