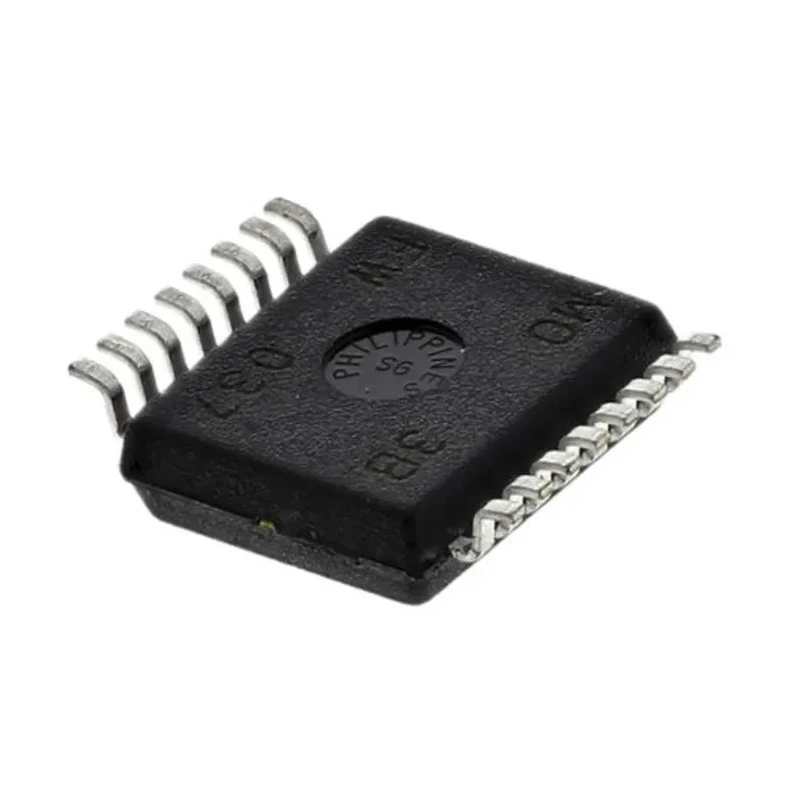

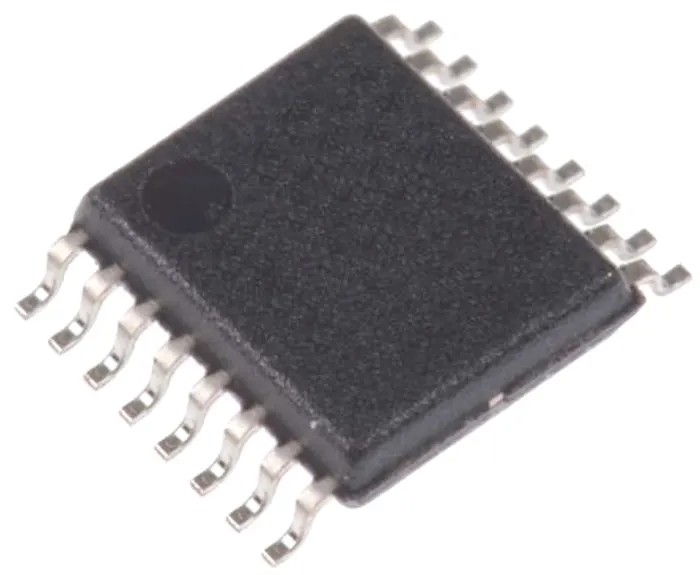

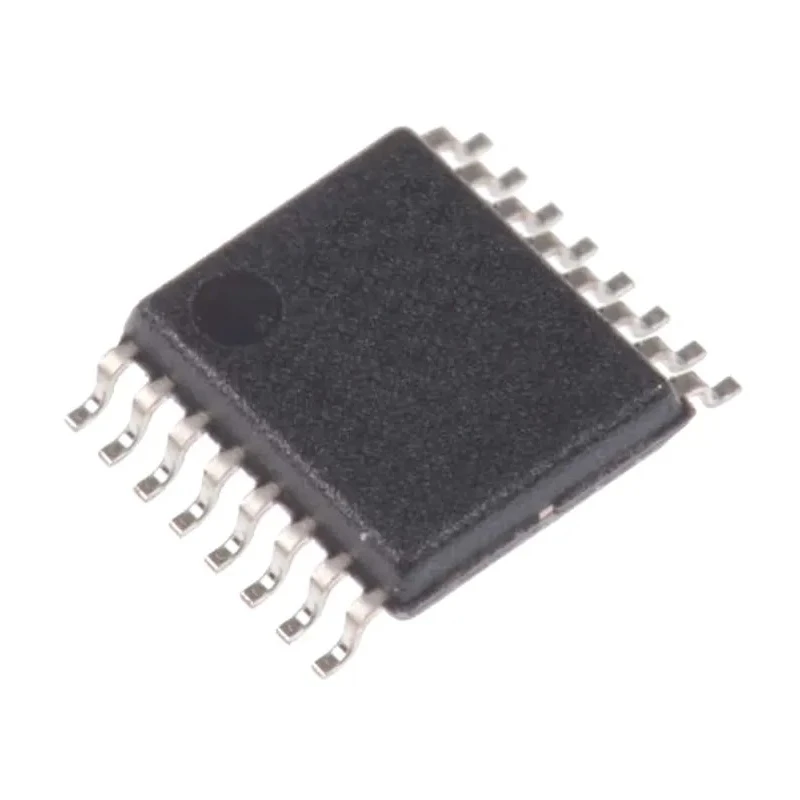

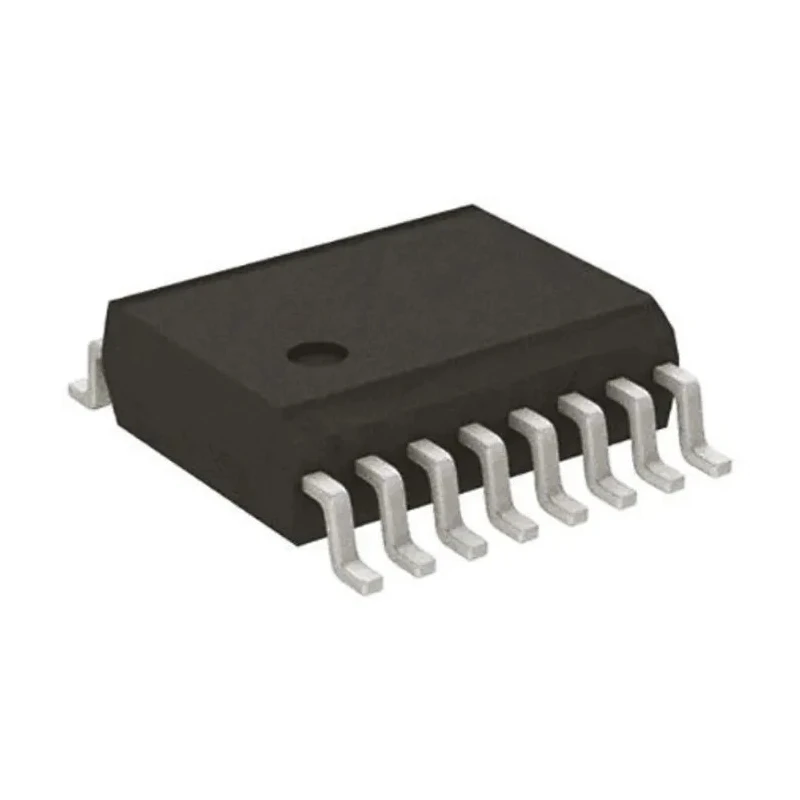

Renesas Electronics Line Transceiver TTL/CMOS, 16-Pin SSOP, 3-5.5V Supply, 0.15μs Propagation Delay ICL3221EIAZ-T
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Renesas Electronics |
| Height | 2mm |
| Length | 10.6mm |
| Model | ICL3221EIAZ-T |
| Width | 8.2mm |
| Mount Type | Surface |
| Output type | TTL/CMOS |
| Series | ICL32xxE |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Standards/Approvals | V.28/V.24, EIA/TIA-232, IEC61000-4-2, RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | 1mA |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Operates with a supply voltage from 3V to 5.5V.
- Single-ended input and TTL/CMOS output logic for versatile interfacing.
- Maximum propagation delay time of 0.15 microseconds at capacitive load.
- Compact 16-Pin SSOP package for surface mounting.
- Wide operating temperature range from -40°C to 125°C.
- Complies with V.28/V.24, EIA/TIA-232, IEC61000-4-2, and RoHS standards.
- Maximum high-level output current of 1mA and low-level output current of 1.6mA.
- Small dimensions of 10.6mm length, 8.2mm width, and 2mm height.
Product Description
Renesas Electronics ICL3221EIAZ-T Line Transceiver is designed to facilitate RS-232 communication interface in electronic devices, utilizing TTL/CMOS logic with a supply voltage range between 3V and 5.5V. This device is housed in a 16-Pin SSOP package, ensuring a compact footprint suitable for surface mount technology.
The transceiver supports single-ended inputs and TTL/CMOS outputs, making it compatible with a wide variety of microcontroller and digital logic systems. It features a maximum propagation delay of 0.15 microseconds at capacitive load, providing fast data transmission speed up to 1 Mbps. Its maximum high-level output current of 1mA and low-level output current of 1.6mA allow for efficient signal driving capabilities.
With operating temperatures spanning from -40°C to 125°C, the ICL3221EIAZ-T is reliable for harsh industrial and commercial environments. It meets multiple industry standards, including V.28/V.24, EIA/TIA-232, IEC61000-4-2, and adheres to RoHS compliance for environmental safety.
This line transceiver is ideal for use in industrial control systems, data acquisition interfaces, embedded system designs, and communication equipment requiring RS-232 protocol implementation. Its small form factor with dimensions of 10.6mm by 8.2mm by 2mm helps optimize PCB space while maintaining robust functionality.
Operates on a supply voltage range of 3V to 5.5V. Supports TTL/CMOS logic interface with single-ended input and TTL/CMOS output. Maximum propagation delay of 0.15μs ensures rapid signal transmission. Wide temperature operation from -40°C to 125°C.
Compliance with major standards including V.28/V.24 and IEC61000-4-2. Small 16-Pin SSOP surface mount package. Manufactured in the Philippines ensuring high quality. Suitable for industrial, laboratory, and communication interface applications.
Explore the full range of Line Interface ICs to find complementary components for your industrial and electronic designs at EnvMart.
Explore more products in our Line Transceiver IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This line transceiver operates with a supply voltage range from 3V to 5.5V.
The maximum propagation delay time is 0.15 microseconds at capacitive load, allowing for fast data transmission.
The dimensions of this model are 10.6mm in length, 8.2mm in width, and 2mm in height.
It supports TTL/CMOS output logic, making it suitable for a variety of interfacing applications.
The operating temperature range spans from -40°C to 125°C, accommodating harsh environmental conditions.
It complies with V.28/V.24, EIA/TIA-232, IEC61000-4-2, and RoHS standards.
The maximum high-level output current is 1mA, allowing for efficient signal driving capabilities.
This model utilizes single-ended input for interfacing with various digital systems.
It is housed in a compact 16-Pin SSOP package suitable for surface mounting.
The maximum low-level output current is 1.6mA, which supports effective signal transmission.
This line transceiver is suitable for industrial control systems, data acquisition interfaces, and communication equipment requiring RS-232 protocol implementation.
This model belongs to the CMOS logic family, providing versatility in interfacing with various systems.
