Fluke 20 MHz Handheld Digital Oscilloscope, 2 Channels, 5.7-inch TFT Colour Display, NiMH Battery, CAT III/IV FLUKE-123B/UK
Specifications
| Country of Origin | Romania |
|---|---|
| Display Type | TFT Colour |
| Brand | Fluke |
| Battery Life | 7h |
| Battery type | NiMH |
| Height | 55mm |
| Model | FLUKE-123B/UK |
| Depth | 132mm |
| Width | 132mm |
| Bandwidth | 20MHz |
| Sampling rate | provides high-resolution waveform capture Digital sampling oscillation enhances accuracy i |
| Series | 123 |
| Screen Size | 5.7 in |
| Plug Type | UK |
| Number Of Channels | 2 |
| Rise Time | 8.75ns |
| Interface Type | CAN, RS232, RS422, RS485, USB |
| Oscilloscope Type | Handheld |
| Minimum Vertical Sensitivity | 5mV/div |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 600V |
| Oscilloscope Form | Digital |
| Minimum Time Base | 20ns |
| Maximum Vertical Sensitivity | 200V/div |
| Maximum Time Base | 500ns/div |
| Metrix OX5022-C, 20MHz Portable Oscilloscope, 2 Analogue ChannelsBrand | Metrix |
| Fluke 120B Series, 40 MHz Handheld Oscilloscope, 2 ChannelsBrand | Fluke |
Key Features
- 20 MHz bandwidth enables detailed signal analysis.
- Two analogue channels support simultaneous waveform observation.
- High-resolution 400 Ksps sampling rate captures accurate waveforms.
- NiMH rechargeable battery provides up to 7 hours of continuous operation.
- Compact design with 259 x 132 x 55 mm dimensions for easy field portability.
- Supports multiple interface types including CAN, RS232, RS422, RS485, and USB connectivity.
- Robust safety ratings with CAT IV 600V and CAT III 750V classification for reliable industrial use.
- Maximum vertical sensitivity of 200 V/div suits a wide voltage range detection.
Product Description

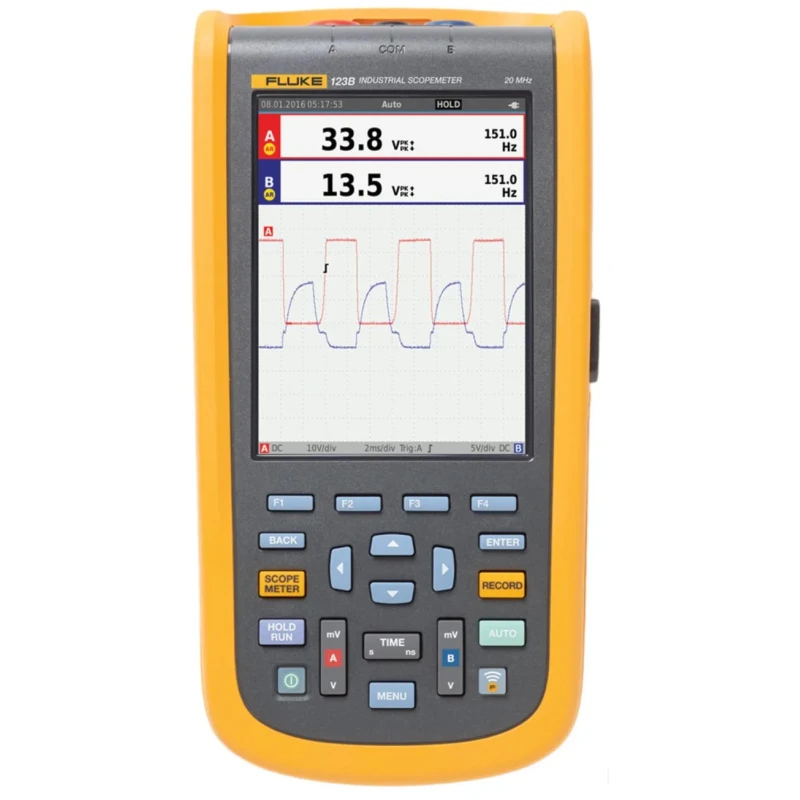

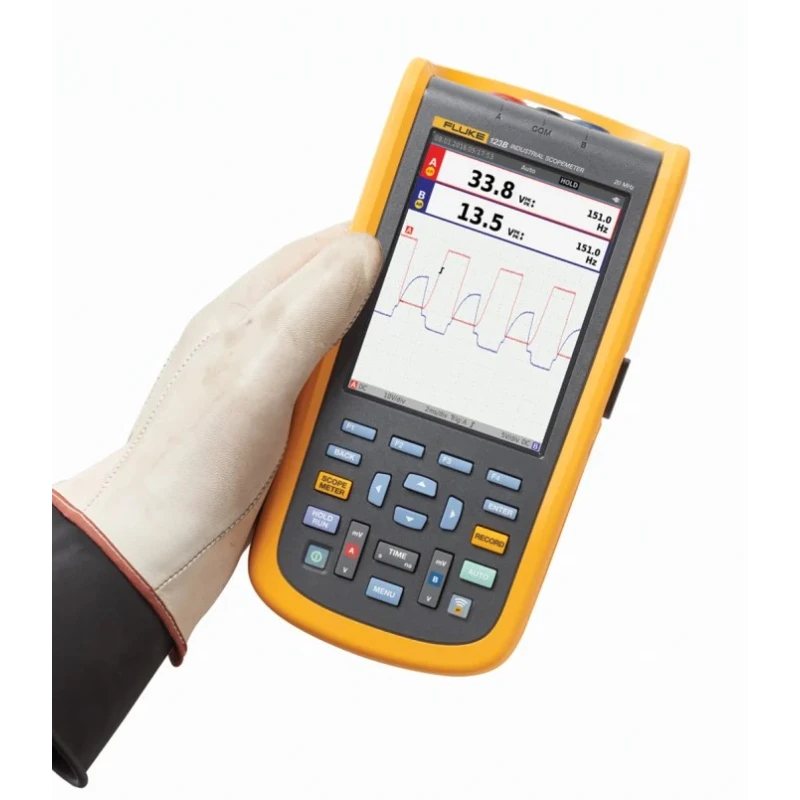

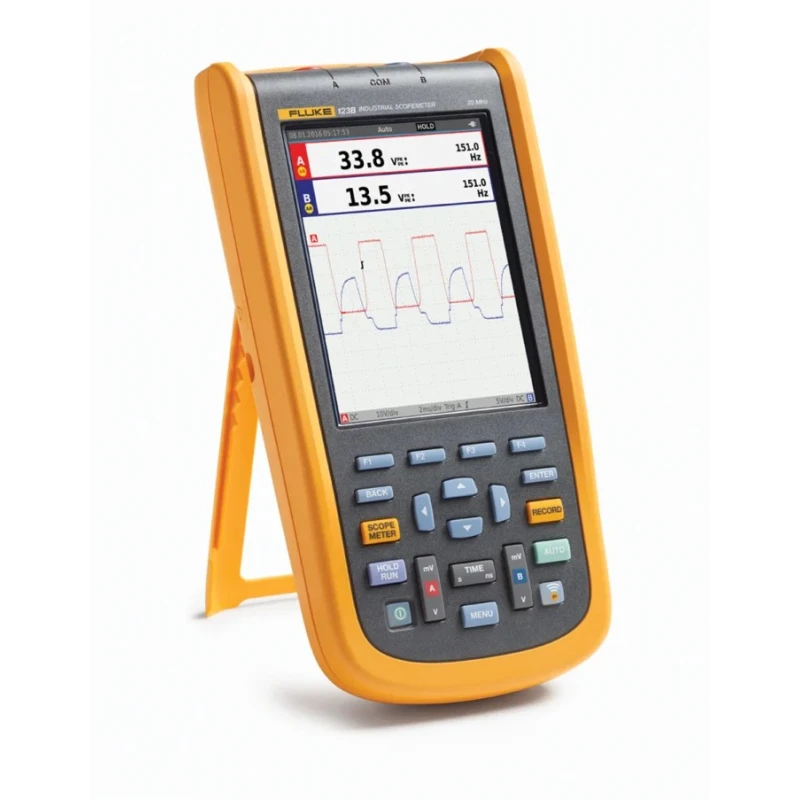

Fluke FLUKE-123B/UK is a 20 MHz handheld digital oscilloscope featuring two analogue channels and a high-resolution TFT colour display sized at 5.7 inches. This compact and portable oscilloscope is designed for professionals requiring precise electrical and electronic measurements on-site.
It offers a bandwidth of 20 MHz and a sampling rate of 400 Ksps to capture detailed waveform data with enhanced accuracy. The oscilloscope supports various interface protocols such as CAN, RS232, RS422, RS485, and USB, enabling easy data transfer and integration with other equipment.
Powered by a NiMH rechargeable battery, it provides up to 7 hours of usage, making it suitable for extended fieldwork sessions. The device dimensions (259 x 132 x 55 mm) and weight of approximately 1.4 kg support ease of handling and portability.
Fluke FLUKE-123B/UK complies with IEC 61010-2-033 and IEC 61010-4 standards, reflecting its robust safety design with CAT IV 600V and CAT III 750V ratings. This ensures reliable performance and user protection in demanding industrial environments.
The oscilloscope offers a maximum vertical sensitivity of 200 V/div and a minimum vertical sensitivity of 5 mV/div, enabling precise measurement across a broad voltage range. Its TFT colour display provides excellent signal visibility under diverse lighting conditions.
20 MHz bandwidth enables detailed signal analysis. Two analogue channels support simultaneous waveform observation. High-resolution 400 Ksps sampling rate captures accurate waveforms. NiMH rechargeable battery provides up to 7 hours of continuous operation.
Compact design with 259 x 132 x 55 mm dimensions for easy field portability. Supports multiple interface types including CAN, RS232, RS422, RS485, and USB connectivity. Robust safety ratings with CAT IV 600V and CAT III 750V classification for reliable industrial use.
Maximum vertical sensitivity of 200 V/div suits a wide voltage range detection. 5 mV/div minimum vertical sensitivity allows detailed low voltage signal reading. Equipped with a 5.7-inch TFT colour screen for clear visibility under diverse lighting conditions.
This Oscilloscope is ideal for applications in industrial automation, electrical circuit troubleshooting, signal integrity analysis, mechanical system maintenance, and research and development in electronics. Its portability and comprehensive features support professionals in laboratory, industrial, and field environments.
Explore the Fluke range for advanced measuring and testing instruments on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The oscilloscope has a bandwidth of 20 MHz, enabling detailed signal analysis.
It supports two analogue channels for simultaneous waveform observation.
The maximum vertical sensitivity is 200 V/div, allowing for a wide voltage range detection.
The minimum vertical sensitivity is 5 mV/div, which enables detailed low voltage signal readings.
It features a high-resolution sampling rate of 400 Ksps, which captures accurate waveforms.
The dimensions are 259 mm in length, 132 mm in width, and 55 mm in height, making it compact for portability.
It has CAT IV 600V and CAT III 750V safety ratings, ensuring reliable performance in industrial environments.
It supports multiple interface types, including CAN and USB connectivity for easy data transfer.
It features a 5.7-inch TFT colour display for clear visibility under various lighting conditions.
This oscilloscope is suitable for industrial automation, electrical circuit troubleshooting, and signal integrity analysis.
The rise time is 8.75 ns, which contributes to its ability to capture fast signal changes accurately.
